LX-CBR CobraNet Audio Interface
Provides CobraNet 20bit/48kHz digital audio data transmission over Ethernet networks.

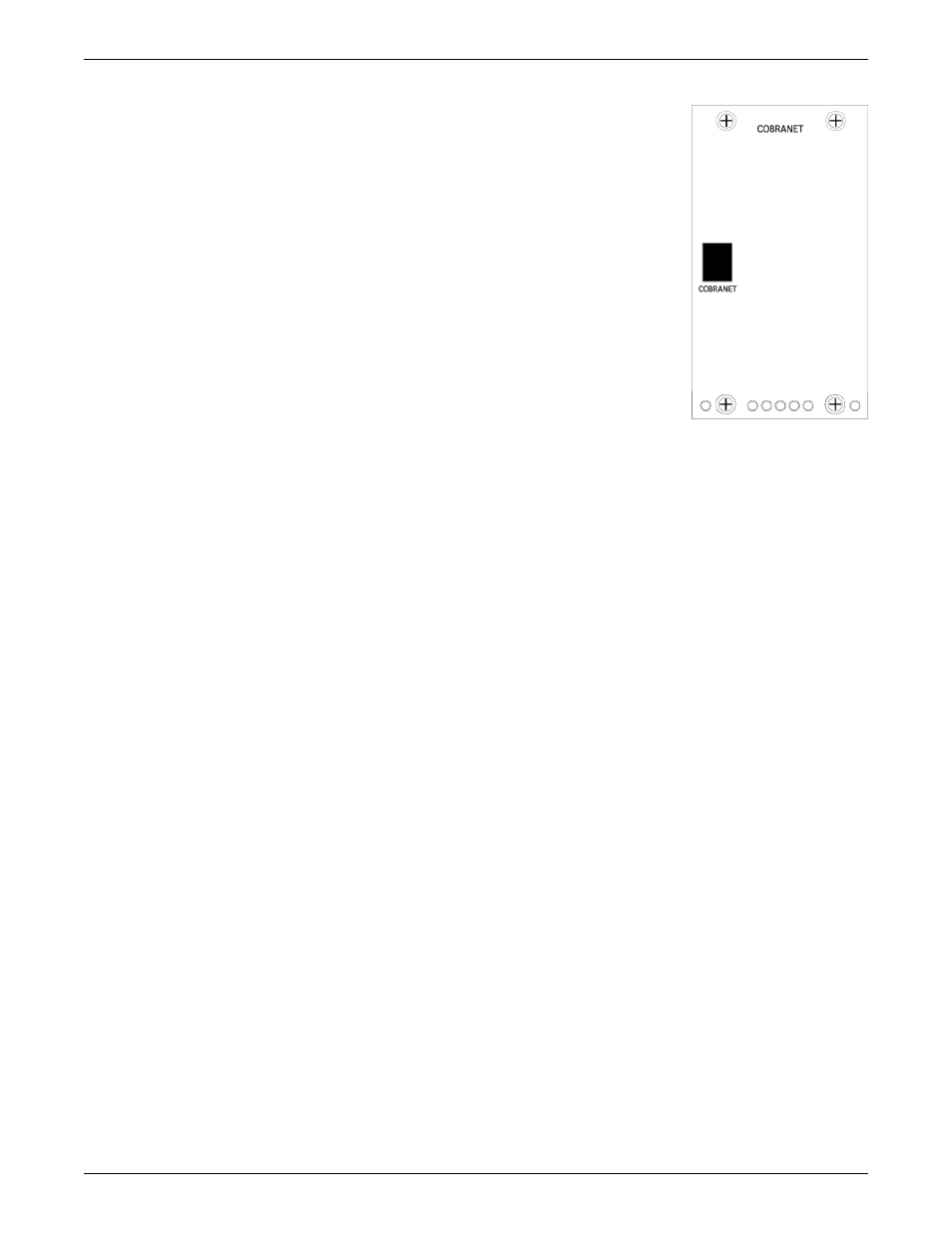

Pin-out
CobraNet communications: Use standard CAT5 cabling.
LED Status Indicator
Link
Watchdog
Conductor
Fault
RX Data
RX Error
TX Data
TX Error
Green LED indicates normal operation.
Red LED indicates a fault or error condition.
