OM-495 Page 36 Return To Table Of Contents

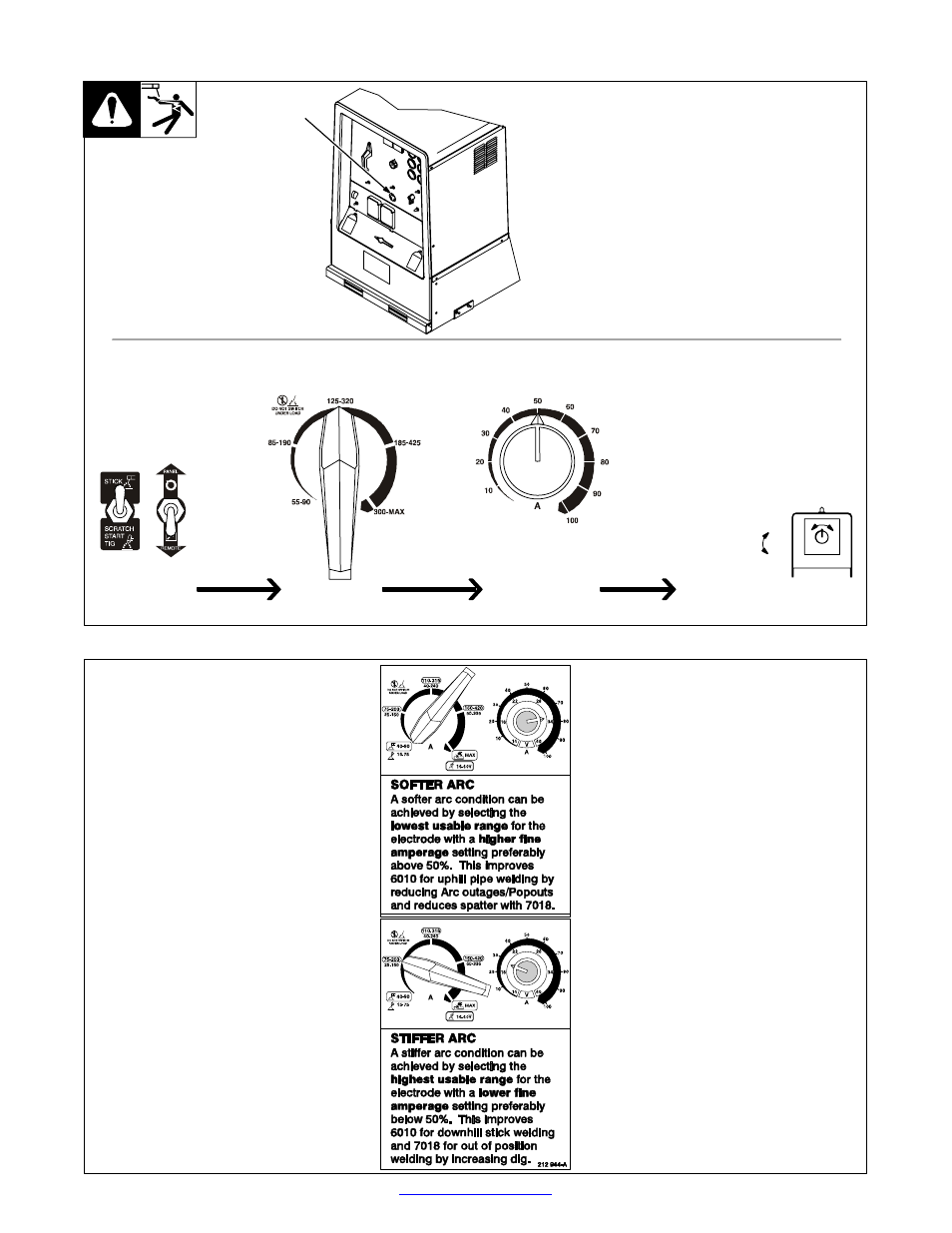

6-3. Remote Amperage Control On CC Models (Optional)
1 Remote Amperage Adjust
Receptacle RC13
Connect optional remote control to
RC13 (see Section 5-12).
0774 / Ref. 154 862-A / Ref. 181 711-A / 802 311-A
Example: Combination Remote Amperage Control (Stick)
In Example:
Range = 125 to 320 A DC
Percentage Of Range = 50%
Max = About 223 A DC (50% of 125 to 320)
Adjust Optional Remote Control Set Switches Set Range Set Control
Max (223 A DC)
Min (87 A DC)
1
6-4. Weld Control/Arc Condition Information Label
.
Set weld controls as shown to
achieve softer or stiffer arc condi-
tions for different applications.
212 944-A
