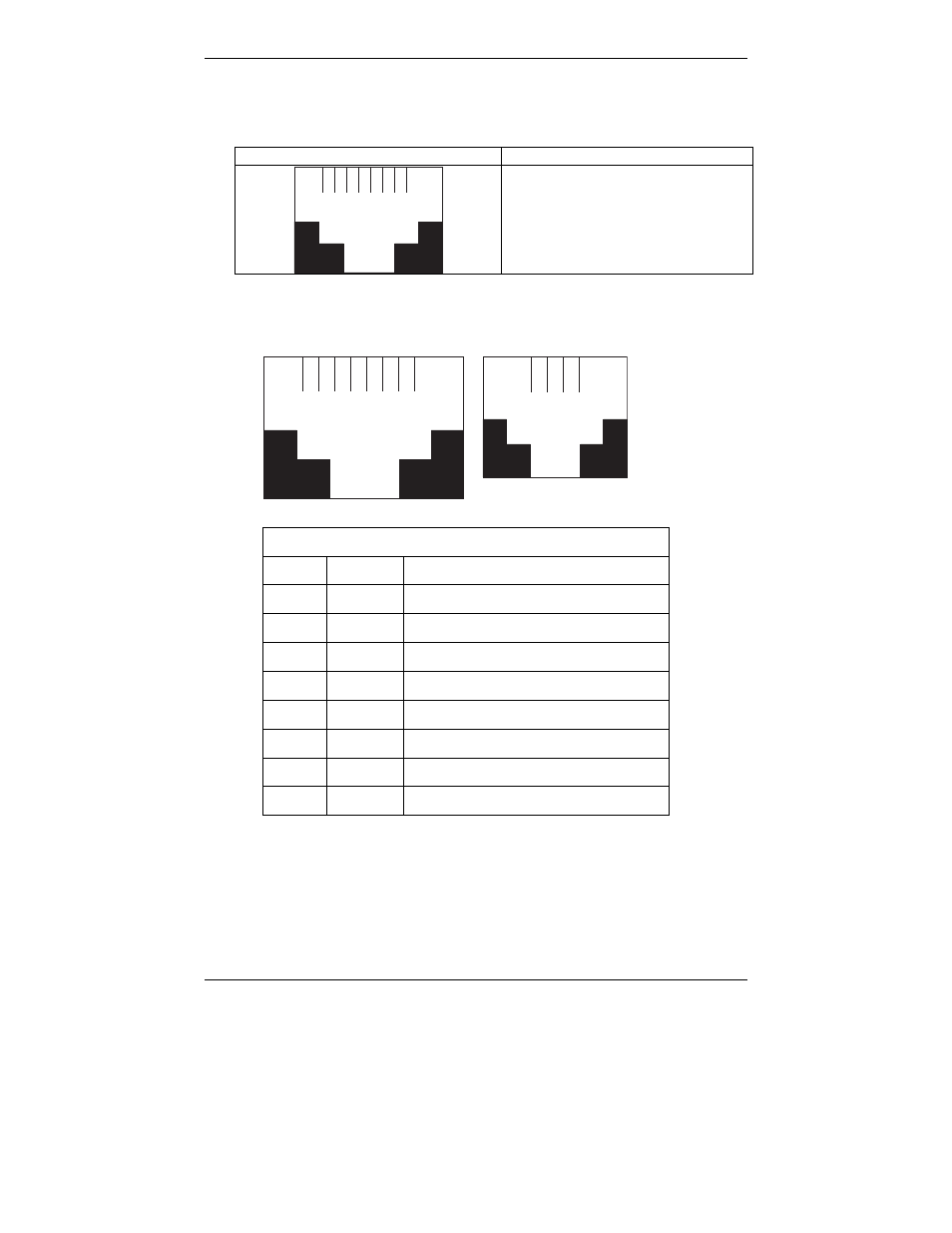

MultiVOIP User Guide
Cable Pinouts
537
T1/E1 Connector
T1/E1 Connector
1 2 3 4 5 6 7 8
Transmit Pair (to line)
}
4
5
Receive Pair (from line)
}
1
2
Voice/Fax Channel Connectors
1 2 3 4 5 6 7 8
1 2 3 4
Pin Functions (E&M Interface)
Pin
Descr
Function
1
M
Input
2
E
Output
3
T1
4-Wire Output
4
R
4-Wire Input, 2-Wire Input
5
T
4-Wire Input, 2-Wire Input
6
R1
4-Wire Output
7
SG
Signal Ground (Output)
8
SB
Signal Battery (Output)
