Practical hints
Replacing bulbs

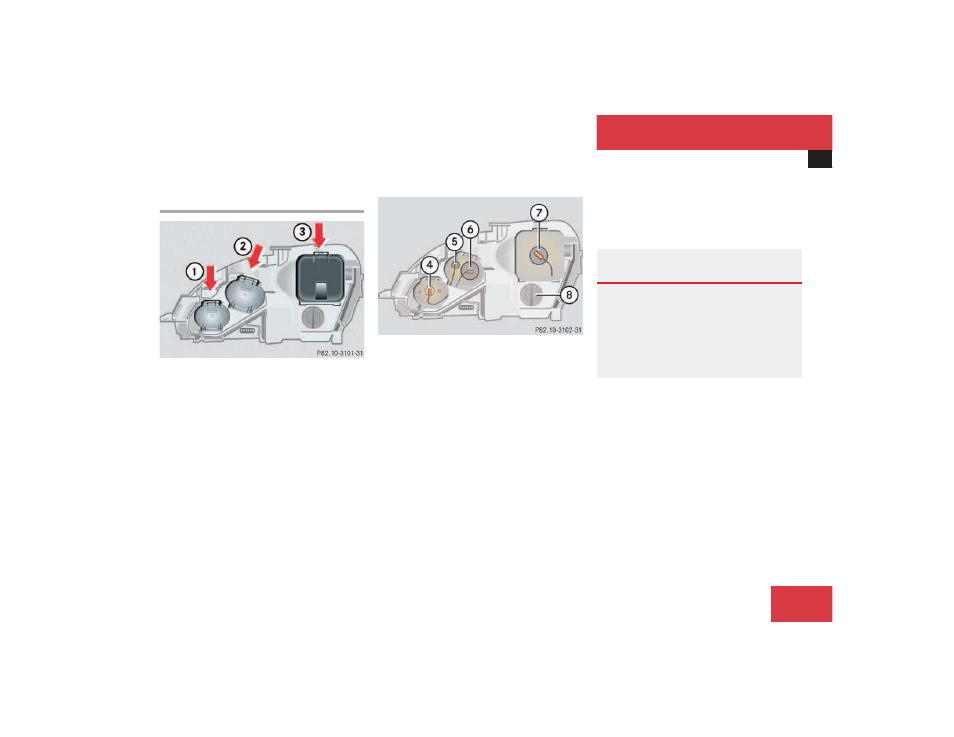

Replacing bulbs for front lamps
1 Headlamp cover for fog lamp
2 Headlamp cover for high beam halogen
headlamp bulb, parking and standing
lamp
3 Headlamp cover for Bi-Xenon* (low and
high beam) or halogen (low beam)
headlamp bulb
4 Bulb socket for fog lamp
5 Bulb socket for parking and standing
lamp
6 Electrical connector for high beam
halogen headlamp bulb
7 Electrical connector for low beam
headlamp bulb
8 Bulb socket for turn signal lamp
Replacing low beam bulbs
Bi-Xenon* headlamp
Halogen headlamp
̈ Switch off the lights.
̈ Open the hood ( ୴ page 272).
̈ Press the tab on cover 3 and remove
cover.
̈ Pull connector 7 off of the lamp.
̈ Release the retaining springs and take
out the bulb.
Warning!
G
Do not remove the cover for the Bi-Xenon
headlamp. Because of high voltage in Xenon
lamps, it is dangerous to replace the bulb or
repair the lamp and its components. We rec-
ommend that you have such work done by a
qualified technician.
