60
Chapter 6 - RouteFinder Monitor
4. The monitor display window displays the actions of the test.
5. To terminate the connection, refer to the Terminate Connection instructions which follow.
6. Click Exit to close the Test Connection dialog box.
Terminate Connection
The Terminate Connection option is designed to allow the Network Administrator to terminate an
RF802EW connection instantly.
1. From the main RouteFinder Monitor dialog box, select Terminate Connection.

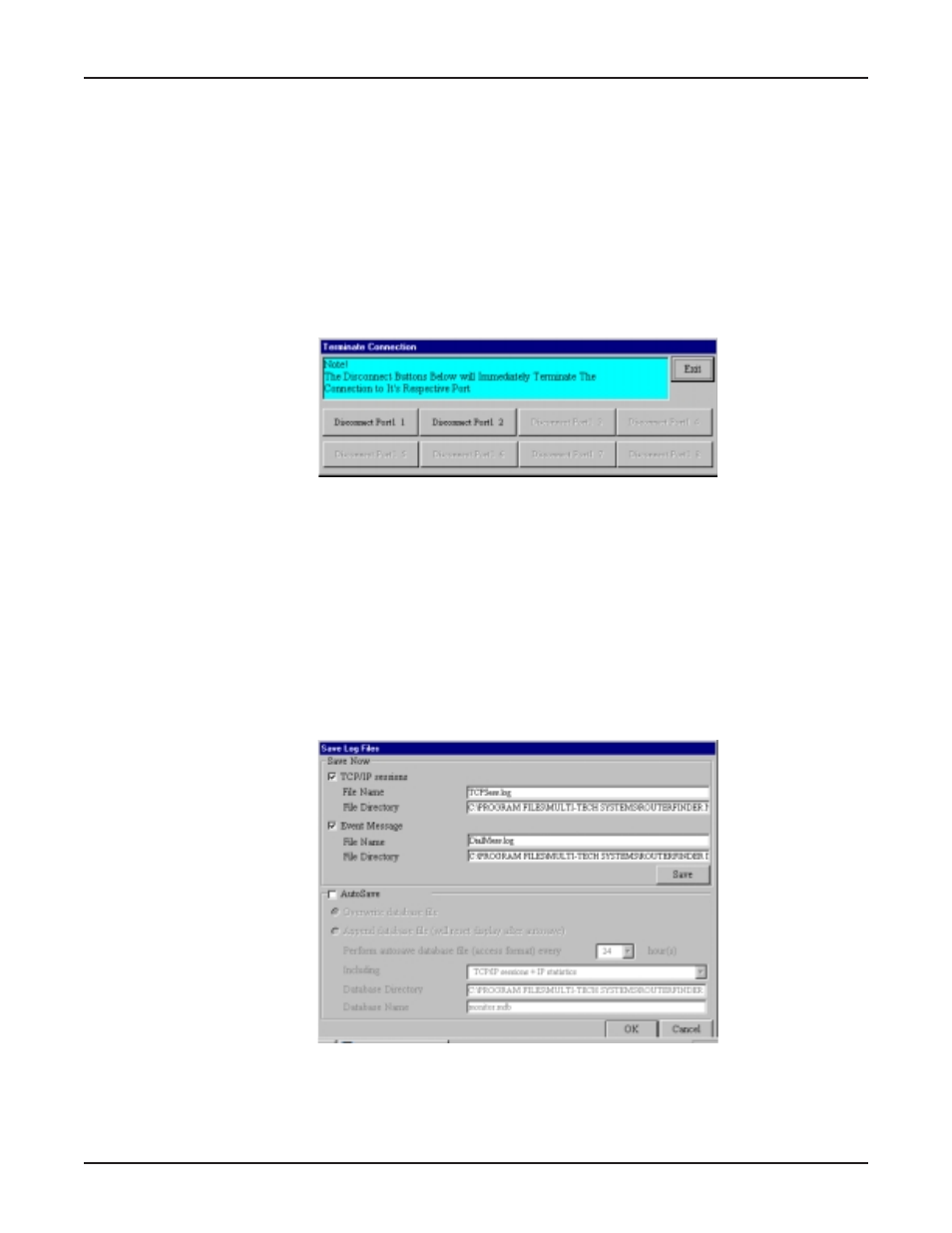

2. The Terminate Connection dialog box displays.
3. Select Disconnect Port 1 or Disconnect Port 2.
4. Click Terminate Connection.
5. Click Exit to return to the RouteFinder Monitor dialog box.
Save to File
Click Save to a File to save a monitoring session to a file. This feature can be used to create an
event log to send to our Technical Support group for evaluation.
1. From the main RouteFinder Monitor dialog box, select Save to File.
2. The Save Log Files dialog box displays.
