DCA-125SSJU SERIES (STANDARD)— PARTS AND OPERATION MANUAL— REV. #4 (06/03/03) — PAGE 55

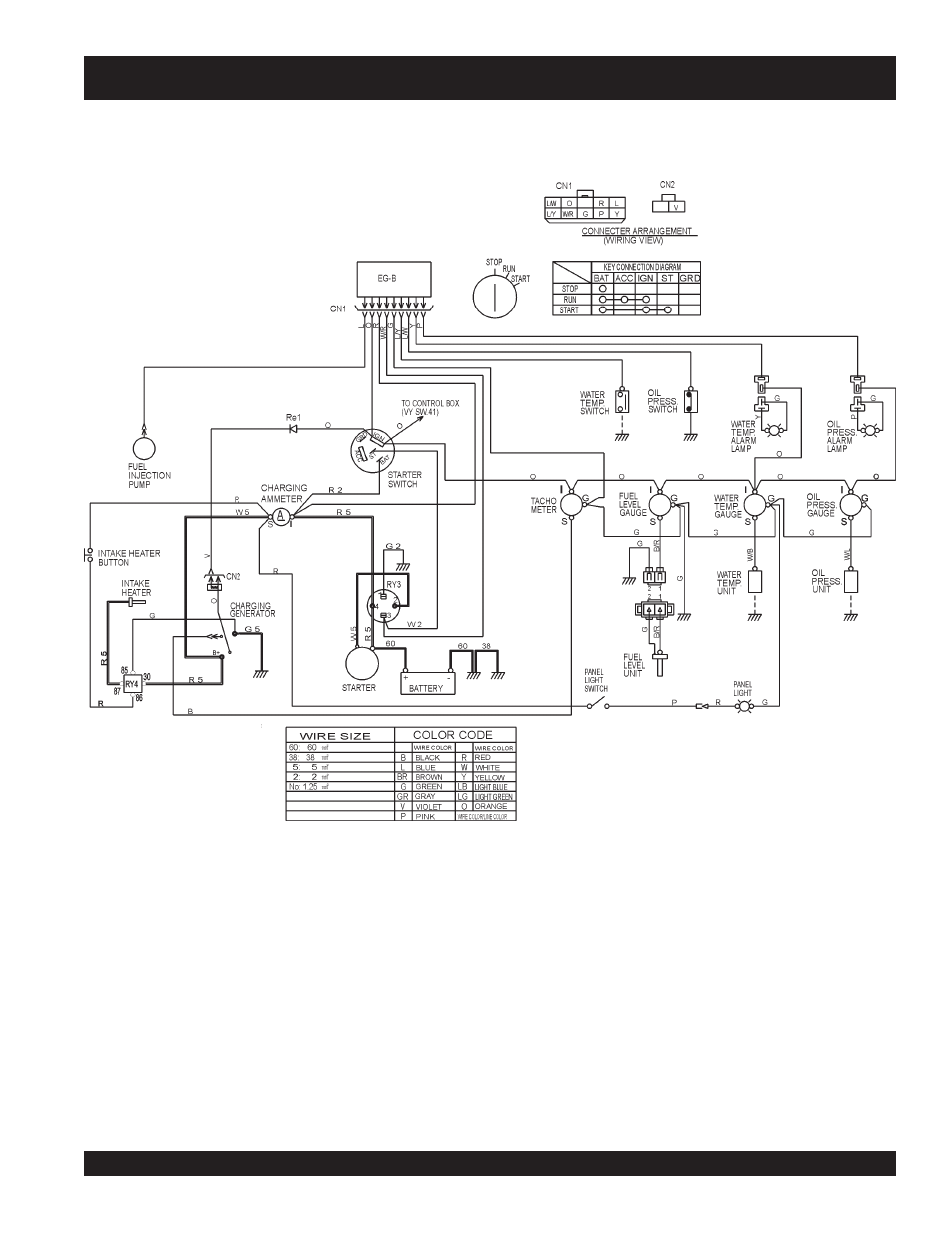

DCA-125SSJU SERIES — ENGINE WIRING DIAGRAM (IGNITION SWITCH)

Figure 81. Engine Wiring Diagram(Ignition Switch)
