PAGE 28 — DCA-125SSJU SERIES (STANDARD) — PARTS AND OPERATION MANUAL — REV. #4 (06/03/03)
Output Terminal Familiarization
The “
Output Terminal Panel ” (Figure 8) is provided with
the following:
z Three (3) 240V Output Receptacles, 50 amp
z Three (3) Circuit Breakers 240V @50 amps
z Two (2) 120V GFCI receptacles, 20 amp
z Two (2) GFCI Circuit Breakers 120V@ 20 amps
z One 300 Amp Main Circuit Breaker
z Five (5) Output Terminal Lugs
Output Terminal Panel
The
Output Terminal Panel ( Figure 8) shown below is
located on the right-hand side (left from control panel) of the
generator. Lift up on the cover to gain access to receptacles
and terminal lugs.
NOTE
Terminal legs “O” and “Ground”
are considered
bonded grounds
.

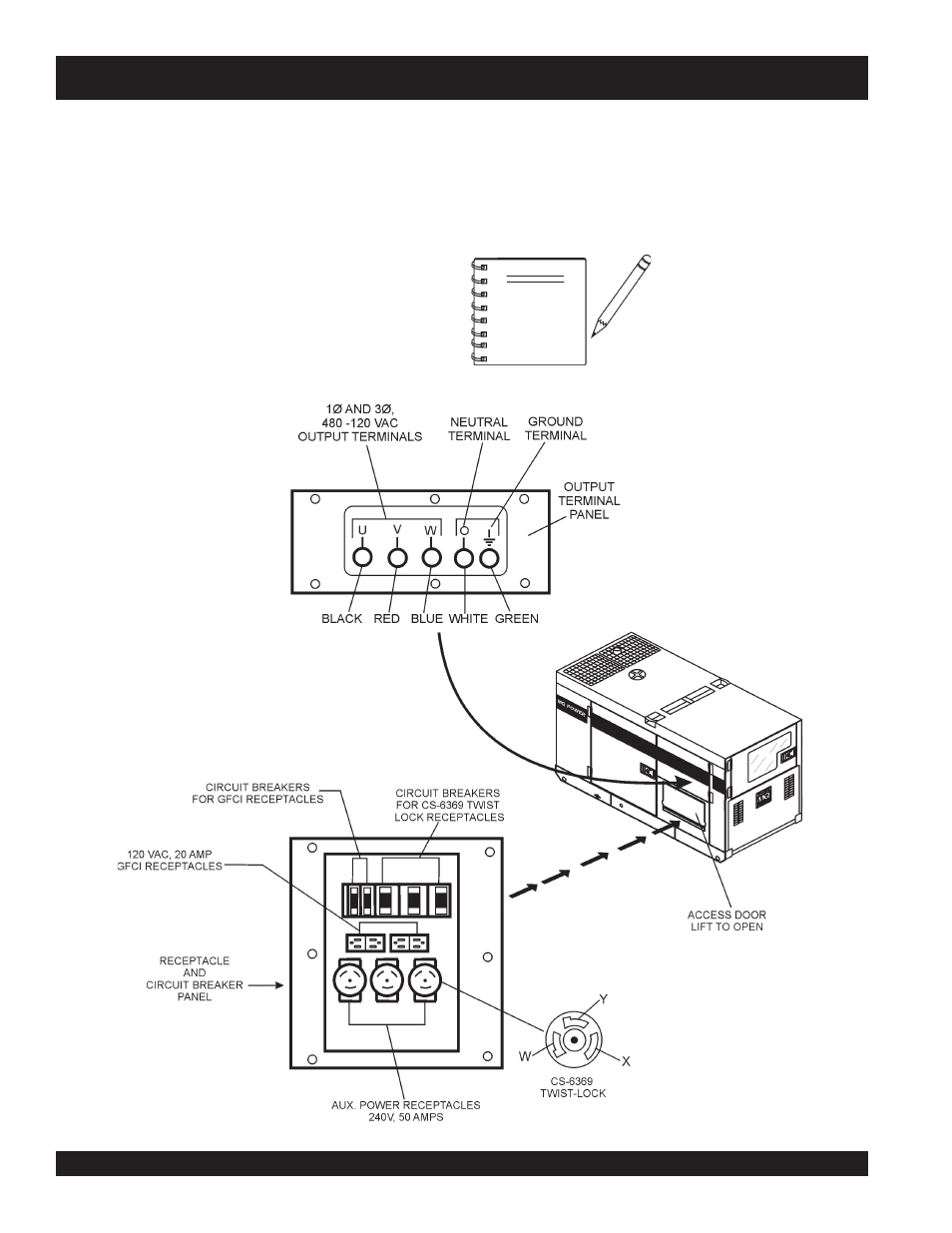

Figure 8. Output Terminal Panel
DCA-125SSJU SERIES — OUTPUT TERMINAL PANEL FAMILIARIZATION
