PAGE 54 — DCA-125SSJU SERIES (STANDARD) — PARTS AND OPERATION MANUAL — REV. #4 (06/03/03)

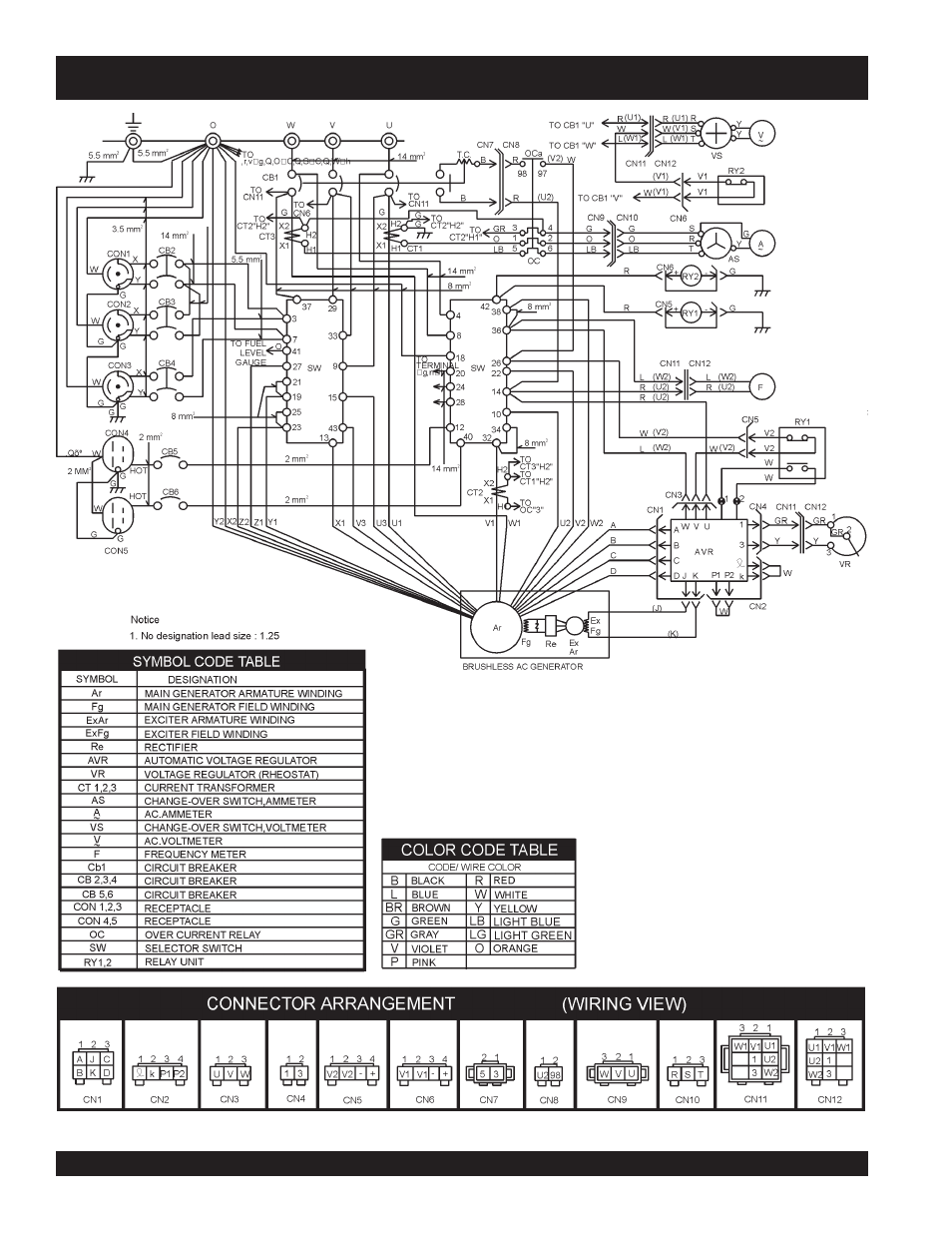

DCA-125SSJU SERIES — GENERATOR WIRING DIAGRAM

Figure 80. Generator Wiring Diagram
