DCA-125SSJU SERIES (STANDARD)— PARTS AND OPERATION MANUAL— REV. #4 (06/03/03) — PAGE 43

DCA-125SSJU SERIES — GENERATOR START-UP PROCEDURE (MANUAL)

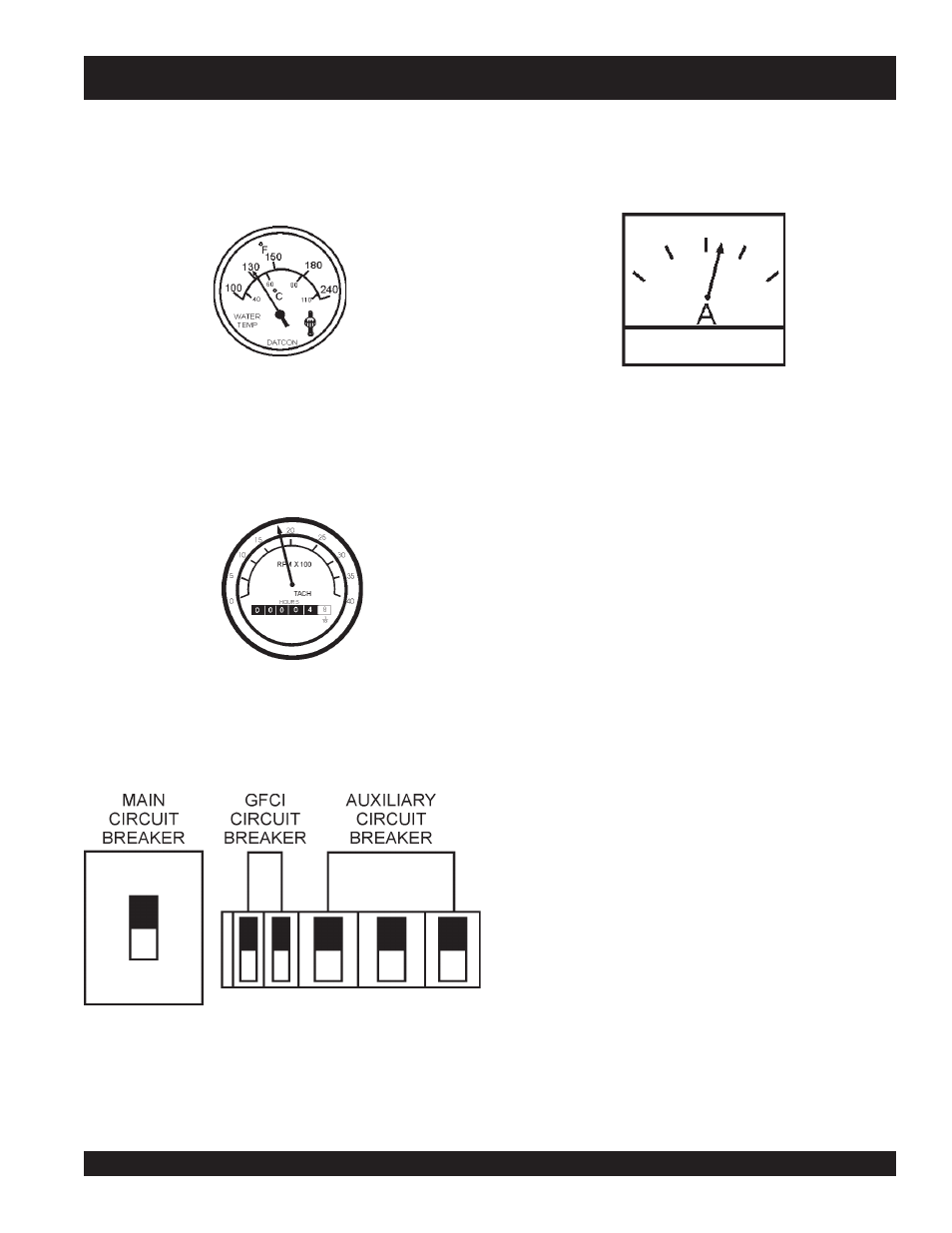

Figure 60. Engine Tachometer Gauge

16. The

tachometer gauge (Figure 60) will indicate the

speed of the engine when the generator is operating.
Under normal operating conditions this speed is
approximately 1800 RPM’s.

15. The

coolant temperature gauge (Figure 59) will indicate

the coolant temperature. Under normal operating
conditions the coolant temperature should be between
165 and 215 degrees Fahrenheit (

Green Zone).

Figure 59. Coolant Temperature Gauge

Figure 61. Main, Aux. and GFCI

Circuit Breakers (ON)

17. Place the

main, GFCI, and aux. circuit breakers in the

ON” position (Figure 61).

18. Observe the generator's ammeter (Figure 62) and verify

it reads the anticipated amount of current with respect
to the load. The ammeter will only display a current
reading if a load is in use.

Figure 62. Ammeter (Load)

19. The generator will run until manually stopped or an

abnormal condition occurs.
