3.0 EASY INSTALLATION
3.1 Hardware Installation
Prior to connecting the XRouter Pro to LAN, please be certain that your
cable or DSL service is active and operating correctly. If you are experi-
encing difficulties with the cable or DSL service, please contact the service
provider before continuing the installation process.
3.1.1 Connecting the XRouter Pro to Your Modem
After verifying that your cable or DSL service is functioning properly, con-
nect the cable modem or DSL modem to the XRouter Pro by following the
instructions below:
1. Disconnect the Ethernet cable from the computer that is currently
connected to the DSL or cable modem if you have not done so.
2. Plug the RJ-45 connector from this cable into the WAN (Wide Area
Network) port on the back panel of the XRouter Pro.
(See Figure 3.1-1)
3. Leave the other end of this Ethernet cable connected to the DSL
modem or cable modem.

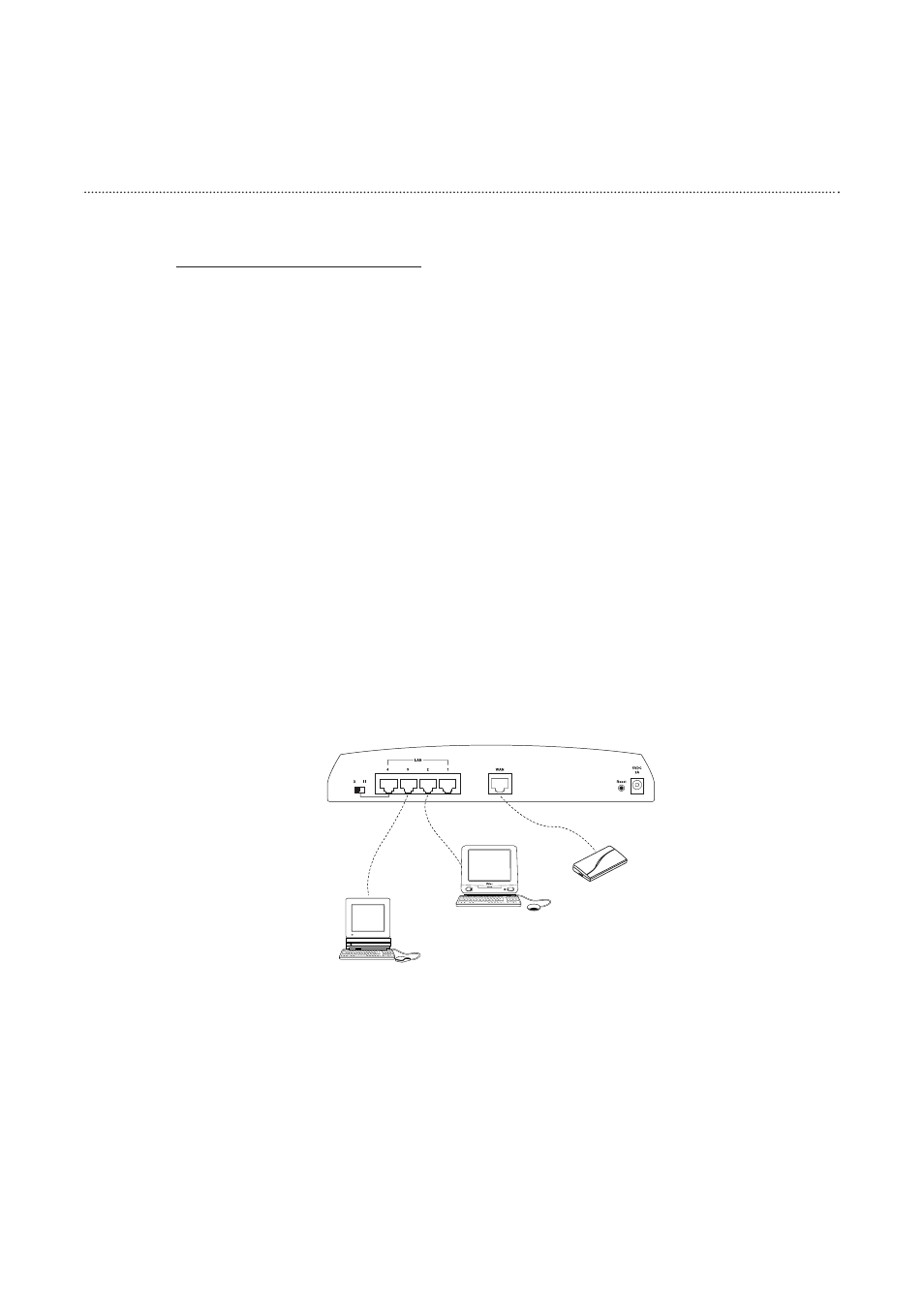

Figure 3.1-1
4
Chapter 3 - EASY INSTALLATION
