Macsense Connectivity XRouter Pro - Manual (Page 33)

4.9 Static Routing
The Static routing feature of the XRouter Pro allows the LAN to communi-
cate with another router on the LAN and with their respective LAN seg-
ment. By setting up static routes, computers on the XRouter Pro’s immedi-
ate LAN may utilize another router’s LAN and XRouter Pro’s LAN simulta-

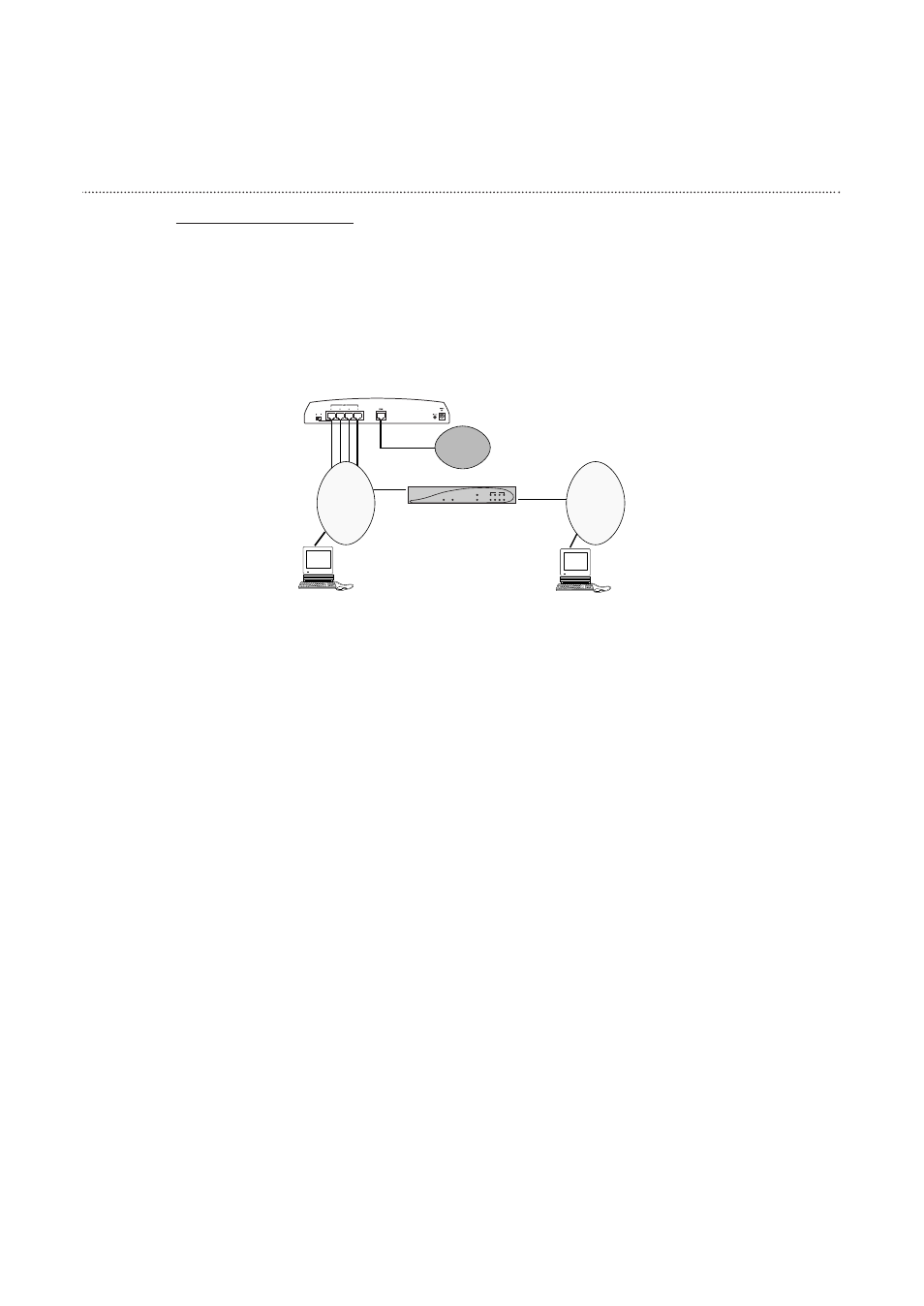

neously. See the figure below for the setup process. (See Figure 4.9-1)
Figure 4.9-1
To achieve th static route in the example above, the following information
would be inputted into the XRouter Pro’s Static Routing page:
Static Routing: 1--
Destination LAN IP: 192.168.2.0
Subnet: 255.255.255.0
Default Gateway: 192.168.1.3
Hop Count: 1
Interface: LAN
MIH-130A
Router
LAN #2
192.168.2.0
LAN #1
192.168.1.0
PC-1
IP: 192.168.1.99
Default Gateway: 192.168.1.1
192.168.2.4
192.168.1.3
IP: 192.168.2.100
Default Gateway: 192.168.2.4
Internet
Power Ready/Test
Link
Activity
100 Link
Full Duplex/ Collision 1 2 3 4
WAN LAN Grouter XR100
PC-2
28
Chapter 4 - ADVANCED CONFIGURATION
