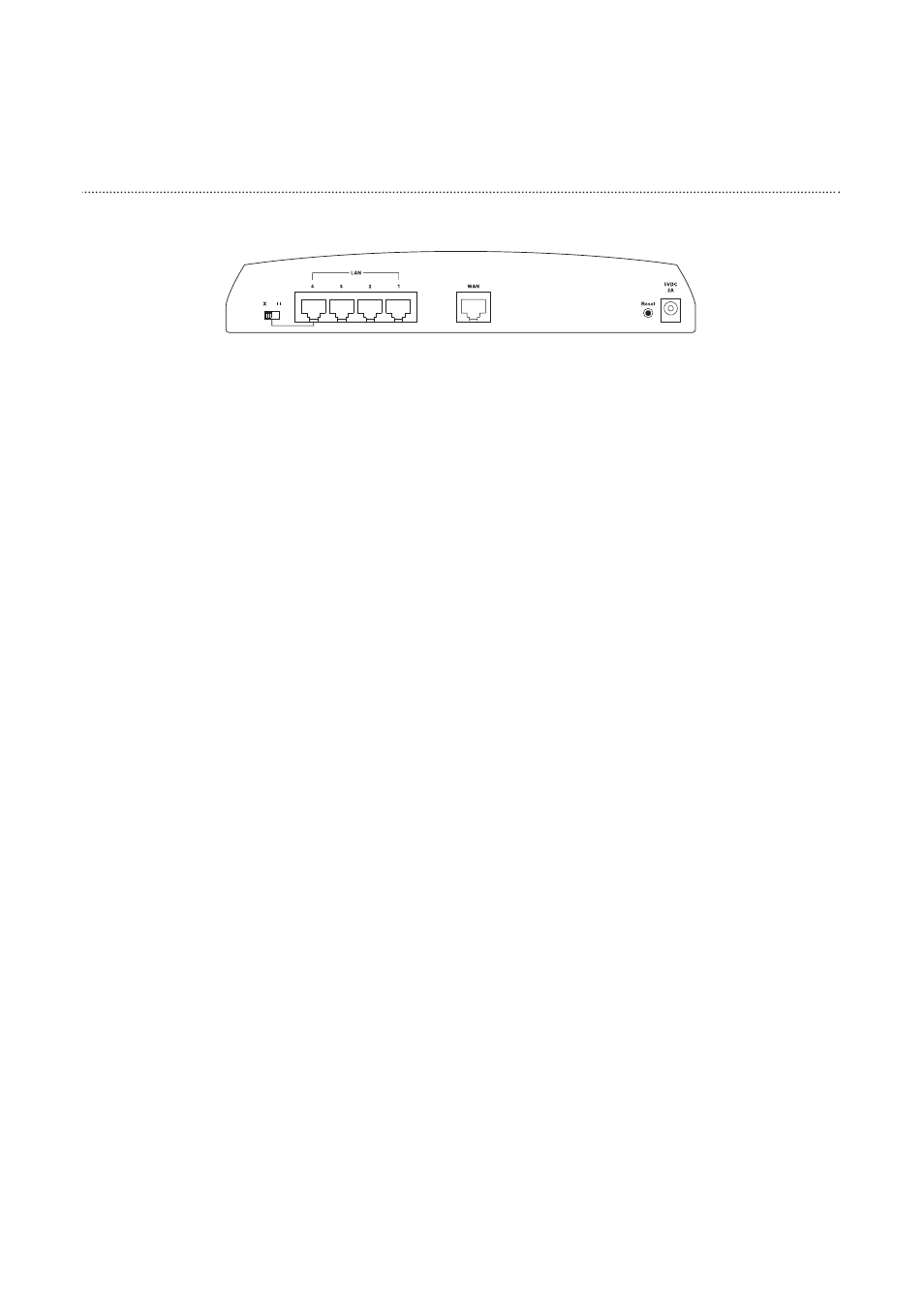

Rear Panel Description
Figure A-B-1
LAN Ethernet Ports
Four 10/100Mbps Enthernet network (RJ-45) ports used for linking hub/computer
in a Local Area Network to the XRouter Pro.
WAN Ethernet Port
One Wide Area Network port for connecting the XRouter Pro to the Internet via a
cable or DSL modem.
Reset Button
Used for resetting the XRouter Pro’s IP Address information and user password to
the factory default settings.
5VDC Power Adapter Receptacle
Plug the power adapter cable into this port to supply power to the XRouter Pro
unit.
Uplink Switch
Used to determine the configuration of the XRouter’s LAN port No. 4. Choose
either parallel (normal) for connecting LAN computers to the XRouter Pro or
crossover mode (uplink) for daisy-chaining a series of hubs to the XRouter Pro.
36
