Replacement parts – Monessen Hearth Direct Vent Gas Fireplace HBDV300 User Manual
Page 46
46
54D5031
HOT
1
3
4
5
6
7
8
9
10
2
11
MILLIVOLT COMPONENTS
REPLACEMENT PARTS
ITEM
DESCRIPTION
QTy HBDV300NV HBDV300PV HBDV400NV HBDV400PV
1
Gas
Valve
Assembly
1 37D0117 37D0118 37D0117 37D0118
2
Pilot
Assembly
1 37D0018 37D0019 37D0018 37D0019
2C Replacement
Thermocouple
1 37D1067 37D1067 37D1067 37D1067
2
I Replacement
Igniter
and Wire
1
37D1069
37D1069
37D1069
37D1069
2T
Replacement
Thermopile
1 37D1068 37D1068 37D1068 37D1068
3
Burner
Tube
1 54D0288 54D0288 54D0194 54D0194
4 Flexhose
with
Shutoff Valve
1
23D6046
23D6046
23D6046
23D6046
5
Rocker
Switch
1 41D0048 41D0048 41D0048 41D0048
6
Piezo
Igniter
1 14D0503 14D0503 14D0503 14D0503
7
Injector
1 62D3006 20H3156 62D3004 33D5039
8 Burner
Assembly
1
54D5115
54D5115
54D5006
54D5006
9
Venturi
1 45D0600 45D0600 45D0600 45D0600
10
Wire
Assembly
1 44D0500 44D0500 44D0500 44D0500
10 Wire Assembly
1
44D0501
44D0501
44D0501
44D0501
ACCESSORIES
11
Thermostatic
RCT/RCST/ RCT/RCST/ RCT/RCST/ RCT/RCST/
Remote Control
1
WWTD/RCSTE WWTD/RCSTE WWTD/RCSTE WWTD/RCSTE
12
Remote
Control
RCB/RCMT/ RCB/RCMT/ RCB/RCMT/ RCB/RCMT/
On/Off
1 RCBE/WMTD RCBE/WMTD RCBE/WMTD RCBE/WMTD
13
Full
Function
RCSTEB/ RCSTEB/ RCSTEB/ RCSTEB/
Remote Control
1
RCSITE
RCSITE
RCSITE
RCSITE
14
Wall
Switch
Kit
1
MVWS MVWS MVWS MVWS
15
Wall
Thermostat
Kit
1
WT WT WT WT
CONVERSION KIT (NOT SHOWN)
300 Conversion NG to LPG
1
HB300CKP
— — —
300 Conversion LPG to NG
1
—
HB300CKN —
—
400 Conversion NG to LPG
1
—
—
HB400CKP
—
400 Conversion LPG to NG
1
—
—
—
HB400CKN

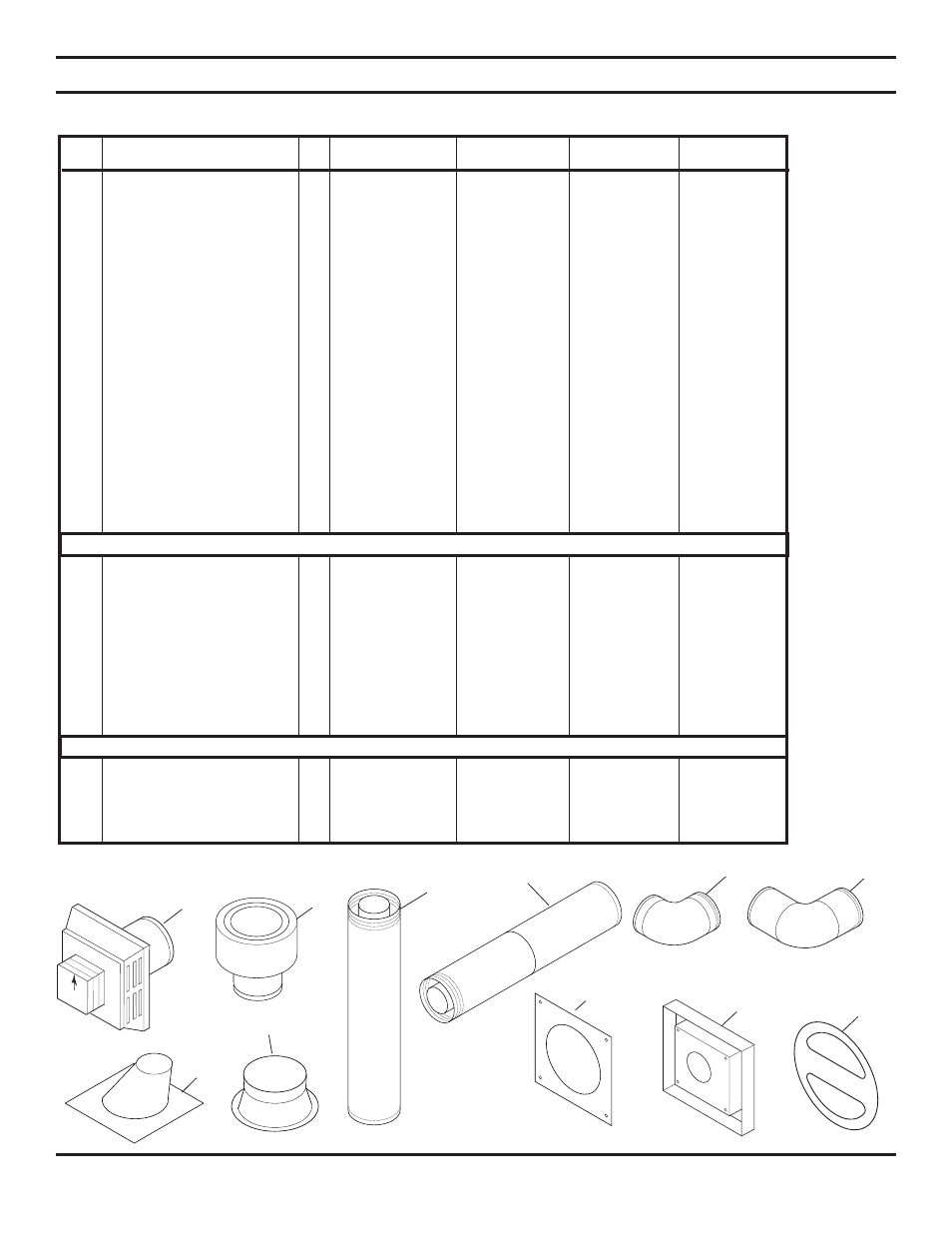

VENT COMPONENTS
