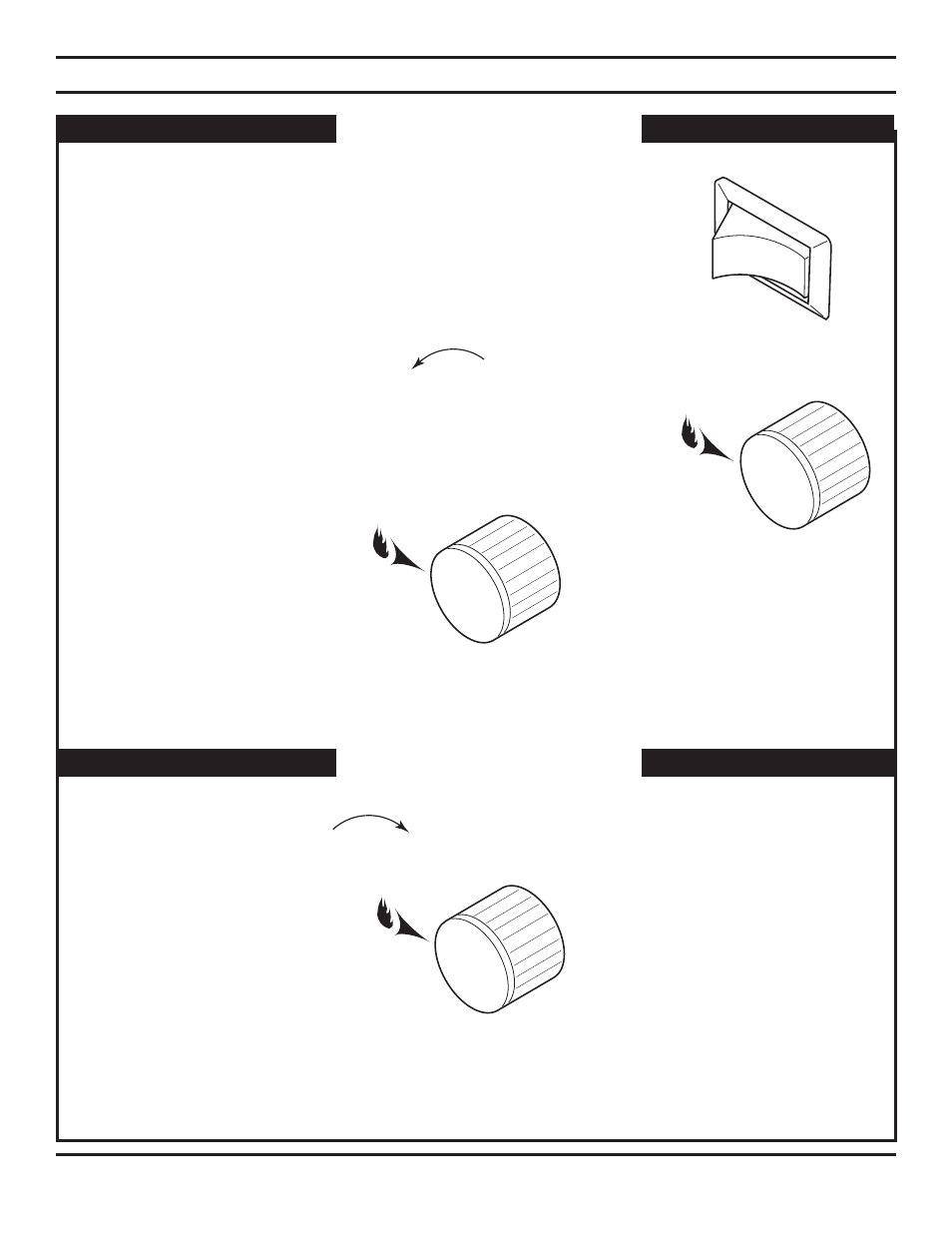

Figure 58 - On Position
PILO
T
OF
F
P
IL
O
T
ON
Figure 57 -
On/Off/RS Switch
OFF
ON
RS
OPERATING INSTRUCTIONS (MILLIVOLT)
LIGHTING BURNER
MAIN BURNER SWITCH
The “ON/OFF/RS” switch for the main burner can be found behind door of the
fireplace. This switch allows you to turn on and to turn off the main burner without
using the gas valve knob. Make sure the button is in the “ON” position to light
the main burner.
See Figure 57 .
LIGHTING THE BURNER
Depress and turn the knob counterclockwise to the “ON” position. See
Figure 58. It will take less than four (4) seconds for the burner to ignite.
PILOT POSITION
Depress and turn knob to pilot position to keep burner off while maintaining the
pilot light. See Figure 59.
Depress and turn knob clockwise to “OFF” position. See Figure 60.
TO TURN OFF GAS
Figure 60 - Off Position
Figure 59 - Pilot Position
