Glass Frame
Clamps

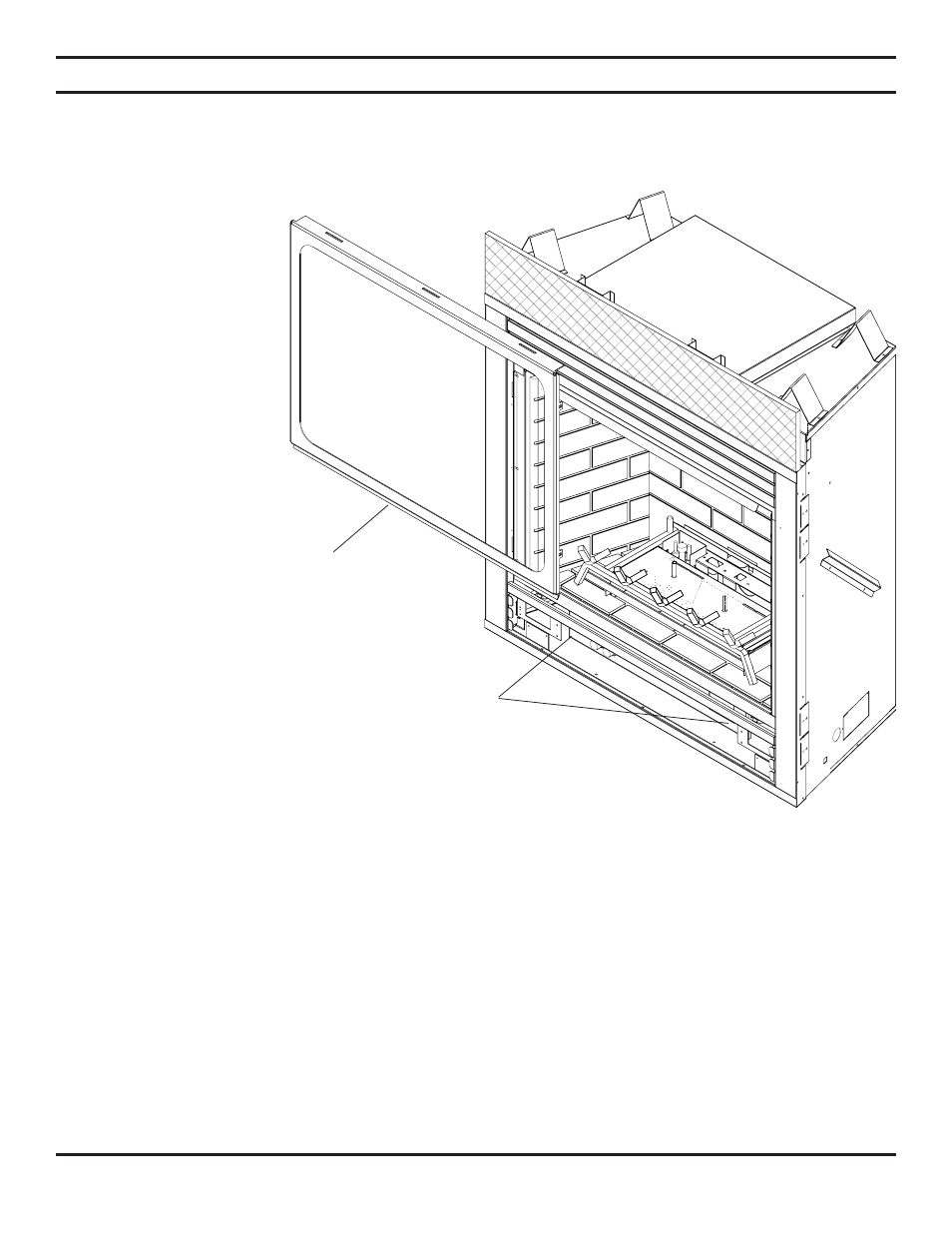

Figure 44 - Removing Glass Frame
GLASS REMOVAL & BRICK INSTALLATION
GLASS FRAME REMOVAL
1. Release two clamps on bottom of fireplace. See Figure 44.
2. Tilt glass frame out and lift glass frame up until it clears three tabs on top of fireplace.
3. Set glass frame aside.
BRICK INSTALLATION
1. Remove glass door frame and log set.
2. Remove the glass heat shield, baffle and rear bracket.
3. Install the center fi rebrick panel on the back wall fi rst. Stand fi rebrick panel straight up against the back of fireplace
with the bottom edge at bottom of inner fi rebox.
4. Repeat Step 3 with the left and right side firebrick panels. Secure the top of each side fi rebrick panel to the fi replace with
one retainer bracket and one screw.
5. Use a screw gun to drive in the self-drilling screw into the sheet metal through the hole in the retainer bracket.
6. Re-install glass heat shield, baffle and rear bracket.
7. Re-install glass door frame and log set.
CAUTION: Each clamp has a quick spring force. When reinstalling
clamps, keep fi ngers clear.
