10 54D5031
0"–12"
Maximum
Depth
12" Minimum
71"Minimum
Minimum 4"
From Both
Side Walls
FIREPLACE
WALL
COMBUSTIBL
MATERIAL
AREA
4"
3"
2.5"
45°
2.5" 2.5"
1"
1.5" 1.5"
STUD
Follow these instructions carefully to ensure safe installation. Failure to follow
in struc tions exactly can create a fi re hazard.
The appliance cannot be installed on a carpet, tile or other combustible material other
than wood fl ooring. If installed on carpet or vinyl fl ooring, the appliance shall be installed
on a metal, wood or noncombustible material panel ex tend ing full width and depth of
the appliance.
W
ARNING
CLEARANCES
CLEARANCES TO COMBUSTIBLES
MANTEL CLEARANCES
NOTE: The combustible area above the facing must not protrude more than 3 /
4
" from the facing. If it does,
it is considered a mantel and must meet the mantel requirements listed in this manual.

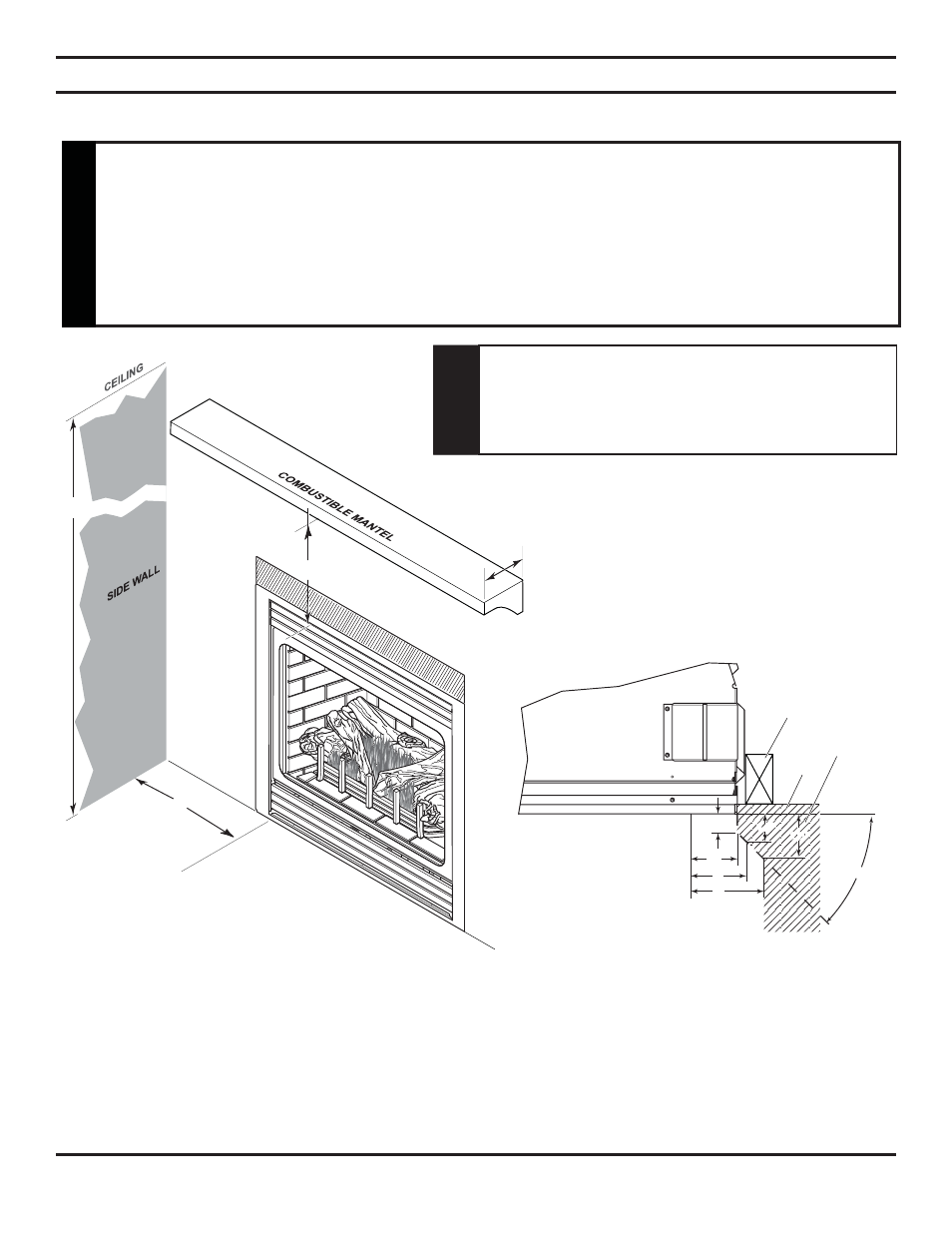

Figure 5 - Clearances Figure 5a - Mantel clearances.
NOTE
All mantel shelves, regardless of depth, should be a mini-
mum of 12" from top opening of fireplace. Mantel shelf
shall not exceed 12" maximum depth at 12" minimum
height from opening.
