Do not remove insulation board – Monessen Hearth Direct Vent Gas Fireplace HBDV300 User Manual
Page 11
54D5031
11
The fireplace must be secured to the floor and/or to framing studs as shown in Figure 5. Use two (2) wood screws or masonry/
concrete screws to secure fireplace to the floor. Use four (4) screws to attach fireplace to framing. The side nailing flanges
are 1/2" or 5/8" to accommodate different wall thickness.
SECURING FIREPLACE TO FLOOR OR FRAMING

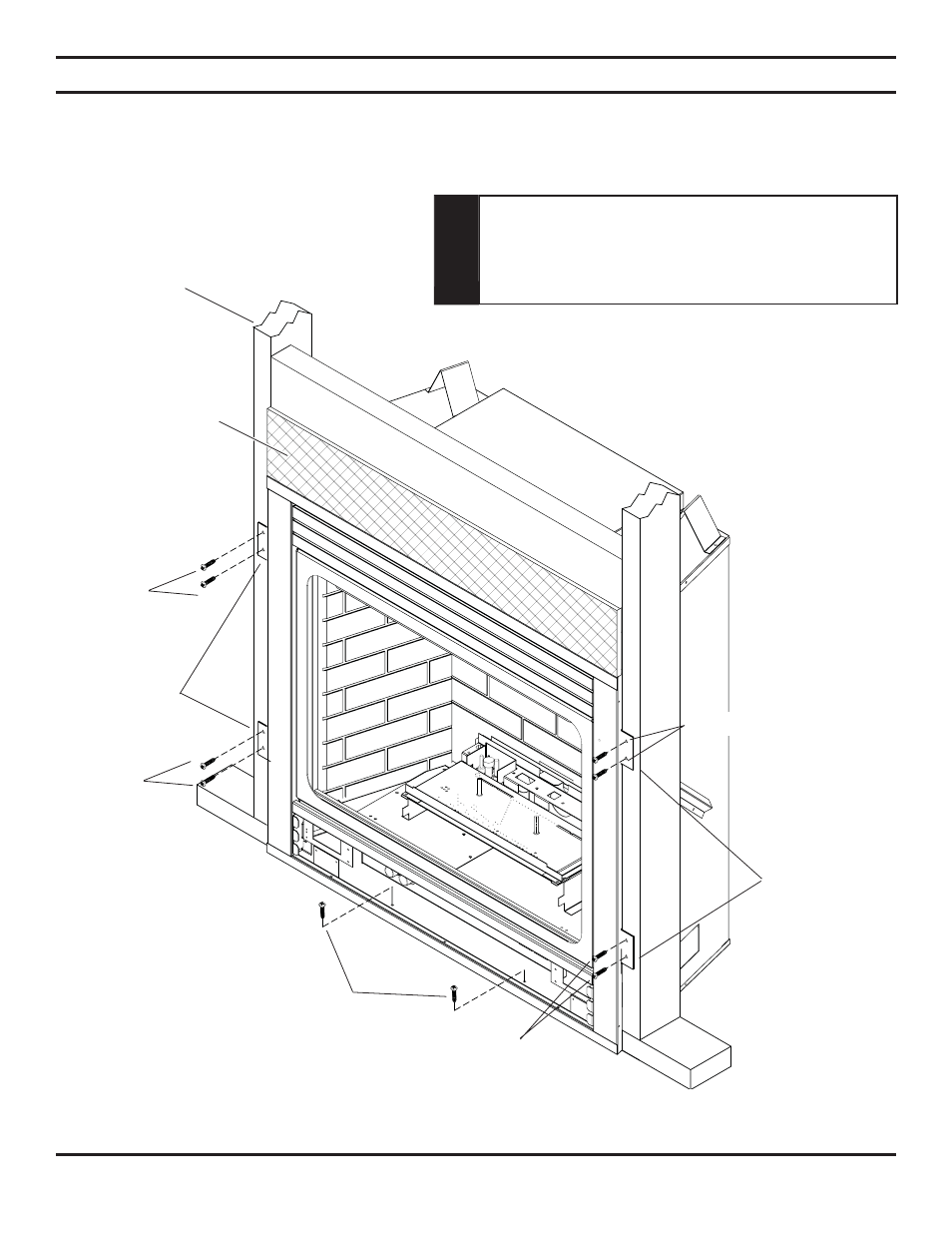

Figure 6 - Securing Fireplace to Floor and Framing Studs
Insulation
Board
Framing
Nail
Flange
Screws
Nail
Flange
Screws
Screws
Screws
Screws
W
ARNING
DO NOT REMOVE
INSULATION BOARD
