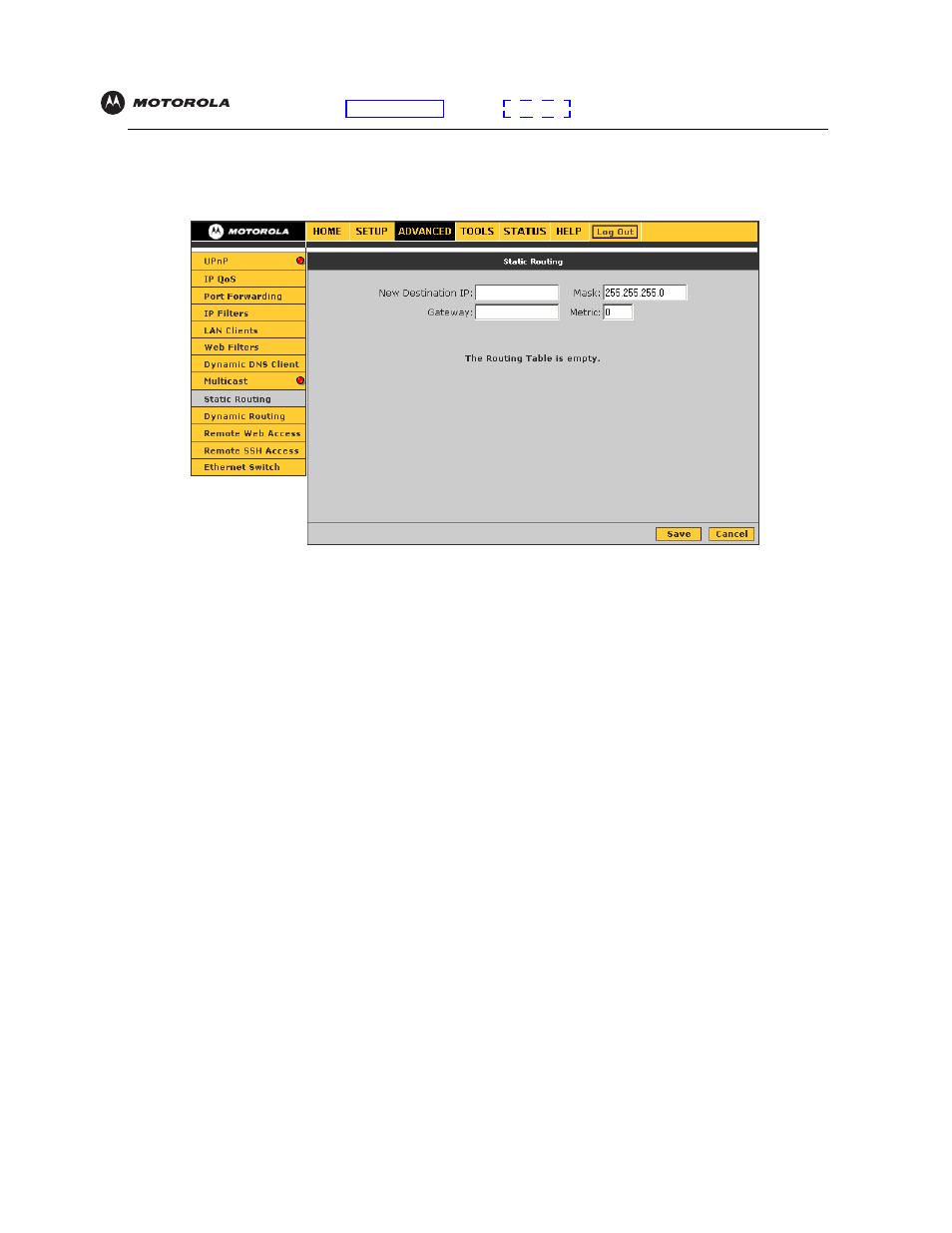

Static Routing
You can define up to 16 static routes in the voice gateway routing table for specific WAN and LAN subnets.
Static Routing fields
Field Description
New Destination IP The network IP address of the subnet. (You can also enter the IP address of each individual
station in the subnet).
Mask The network mask of the destination subnet.
Gateway The IP address of the next hop through which traffic will flow towards the destination subnet.
Metric Defines the number of hops between the network nodes through which data packets travel. The
default is 0, which means the subnet is directly one hop away on the LAN.
