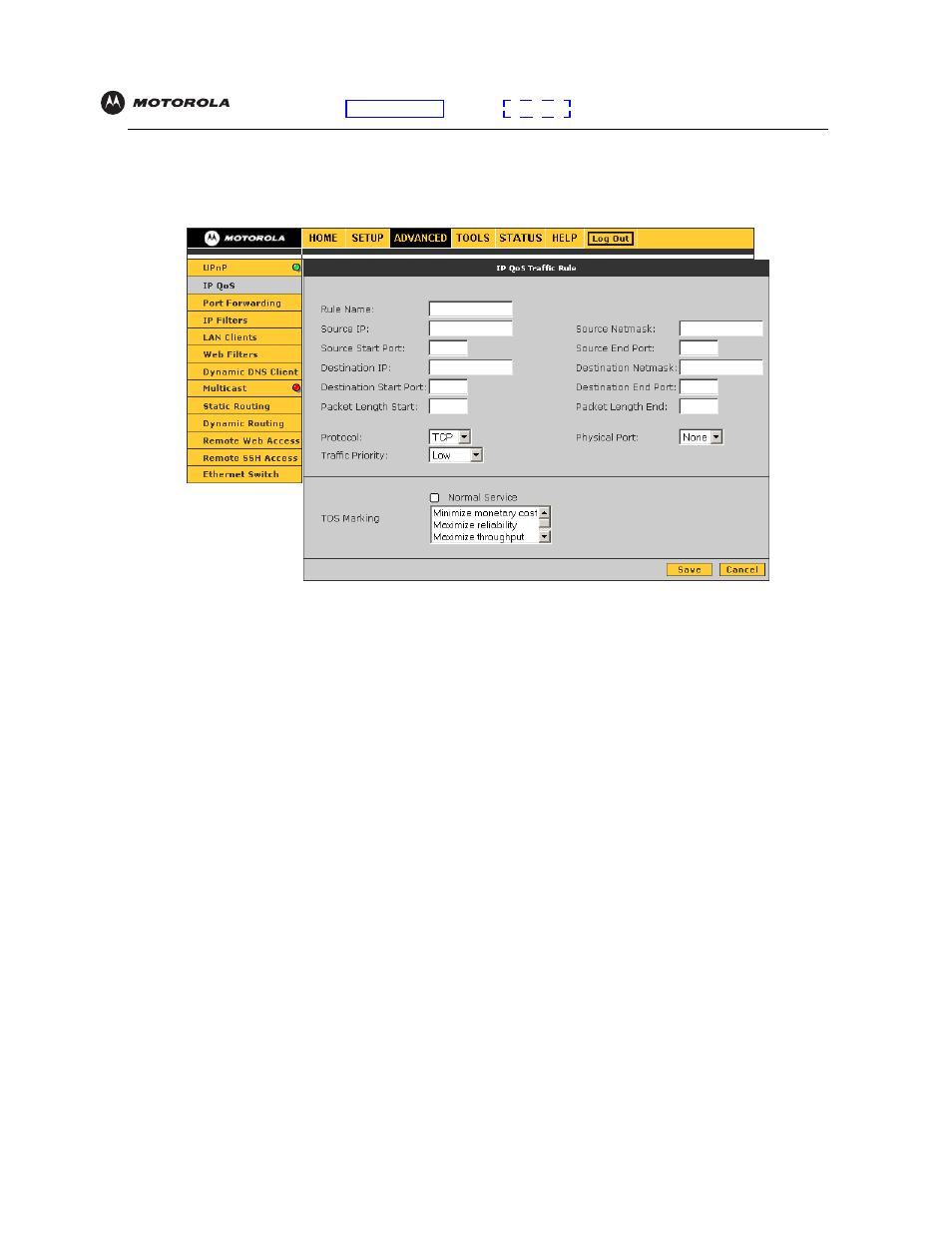

This window displays when you click Add on the IP QoS window. It enables you to define rules for filtering
packets.
IP QoS Traffic Rule fields
Field Description
Rule Name The rule name
Source IP Sets the source IP address for the rule.
Source Start Port Sets the source start port.
Destination IP Sets the destination IP address.
Destination Start Port Sets the destination start port.
Packet Length Start Sets the minimum packet size for the rule.
Protocol Sets the protocol — TCP, UDP, ICMP, or Any.
Traffic Priority Sets the priority for traffic matching these characteristics — High or Low.
Source Netmask Sets the source subnet mask, which along with the Source IP specifies a range of source
IP addresses.
Source End Port Sets the source end port.
Destination Netmask Sets the destination subnet mask, which along with the Destination IP specifies a range of
destination IP addresses.
Destination End Port Sets the destination end port.
Packet Length End Sets the maximum packet size allowed by the rule.
Physical Port Can be none, Port 1, Port 2, Port 3, Port 4, or WLAN.
