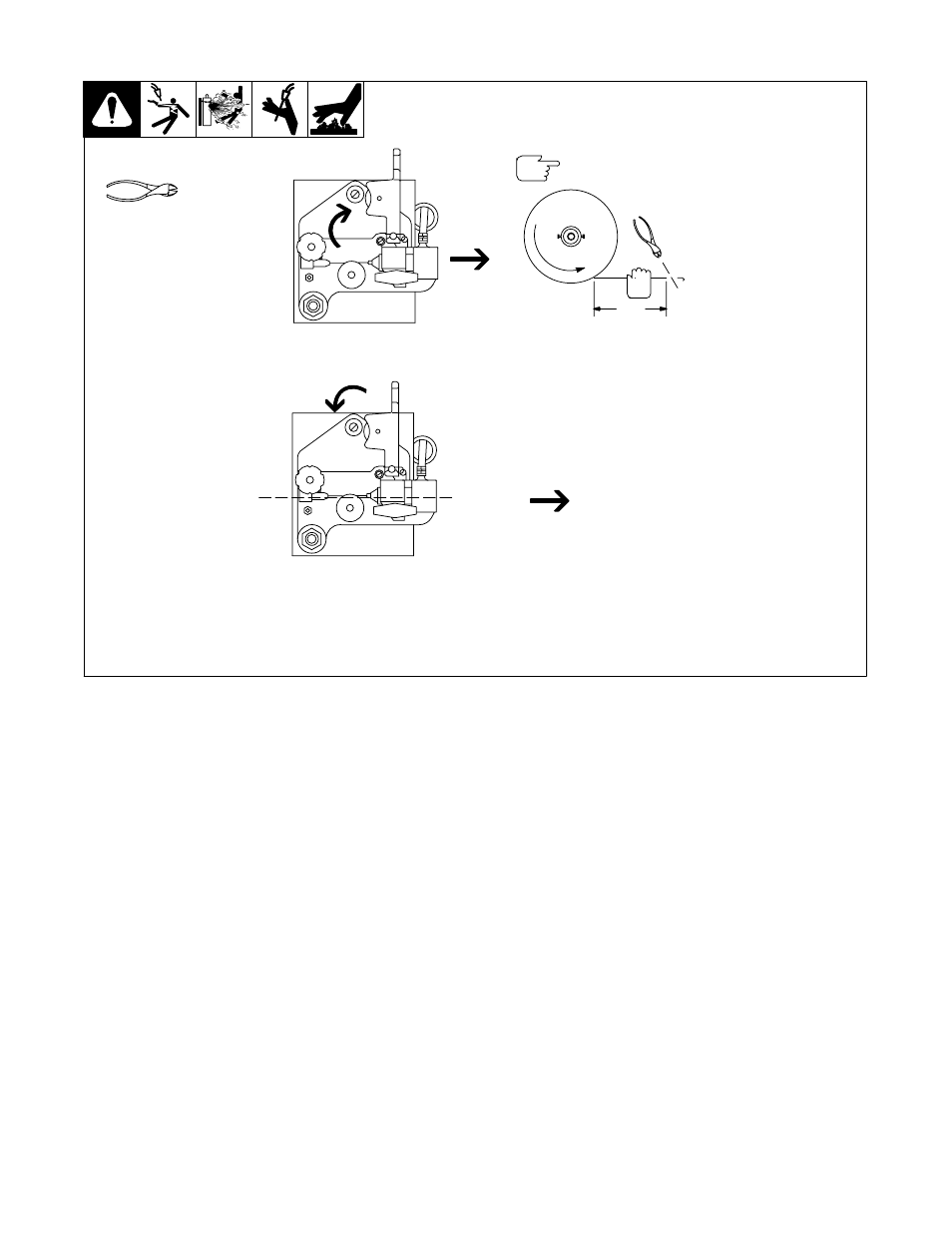

5-12. Threading Welding Wire Through Feeder
Ref. 802 193-A
Tools Needed:
Pull and hold wire; cut off end.
Hold wire tightly to keep
it from unraveling.
6 in
(150 mm)
Open tension arm.
Thread wire thru inlet guide, along drive roll groove, and
into wire conduit. Close tension arm. Adjust tension as
follows: grasp spool with one hand, press Jog switch, and
turn thumb nut clockwise until motor stalls when Jog
switch is pressed. Back thumb nut off slightly.
Proceed to Section 5-13.
