9. opening top cover of xr-edge gun, 10. removing top cover of pistol grip gun – Miller Electric XR Control User Manual
Page 26
OM-1594 Page 20

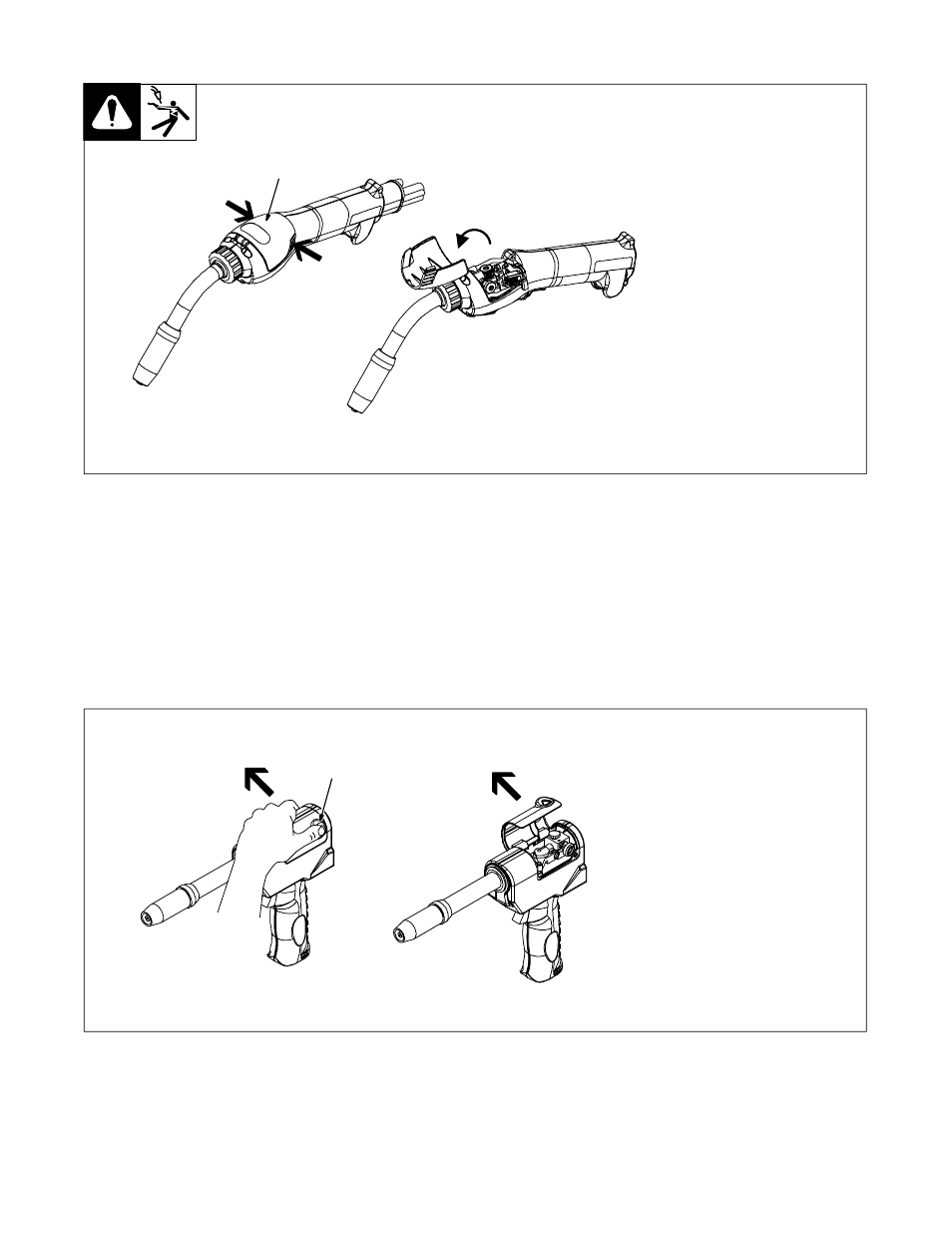

5-9. Opening Top Cover Of XR-Edge Gun
1
Top Cover
Squeeze sides of cover to release
clips and lift up as shown.
To close cover, pivot cover closed
on gun, and push cover down until
clips lock tight.
Ref. 801 556-C
1
5-10. Removing Top Cover Of Pistol Grip Gun
1
Top Cover Triangular Boss
Push up on triangular boss to open
door. Door hinges on handle.
To open door fully, push up on door
until it clicks into position.
.
If door is pushed too far it will
separate from handle. If this
happens the door can be rein-
stalled.
Push door back into original posi-
tion to close.
802 528-C
1
