OM-1594 Page 13
SECTION 5 − INSTALLATION
Be sure that contact tip, liner, and drive rolls are correct for wire size and type. See
Parts List to change parts as needed.
NOTE
Many procedures apply to both guns covered in this manual. Where procedures
differ, separate instructions are given.
NOTE

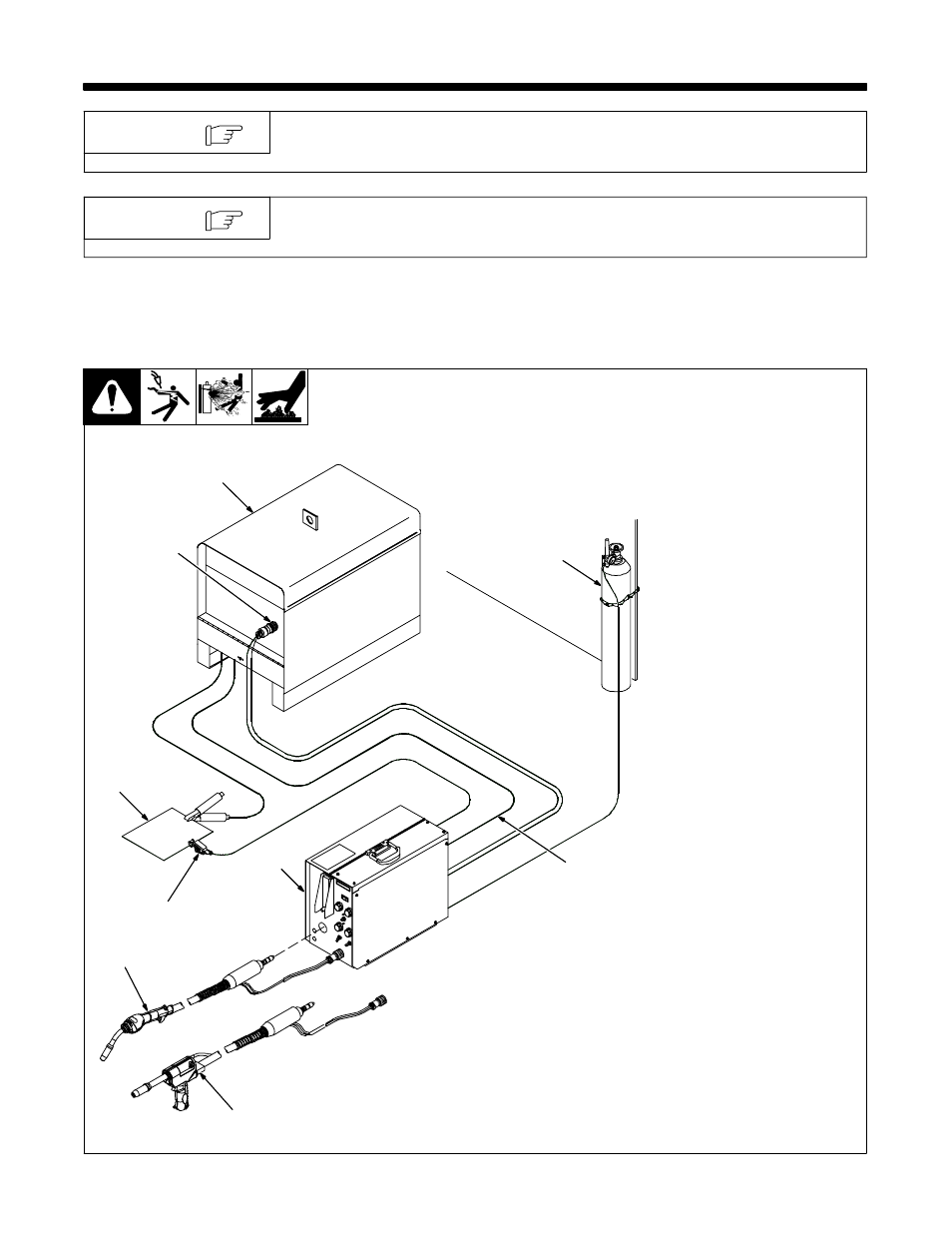

5-1. Connections With A Constant Current (CC), Constant Voltage (CV) Or Constant
Current/Constant Voltage (CC/CV) Welding Power Source Having A 14-Socket
Receptacle
801 559-D / Ref. 151 666-G
1 CC, CV Or CC/CV Welding
Power Source
2 24 VAC/Contactor Control
14-Pin Plug
3 Workpiece
4 Voltage Sensing Lead
(Optional)
Connect lead to workpiece for CC
welding only.
5
Gun
6 Wire Feeder
7 24 VAC/Contactor Control
Cord
Y Do not use gas pressure
above 50 psi (345 kPa).
8 Gas Cylinder
1
2
3
4
5
7
8
6
5
