ENGLISH
13

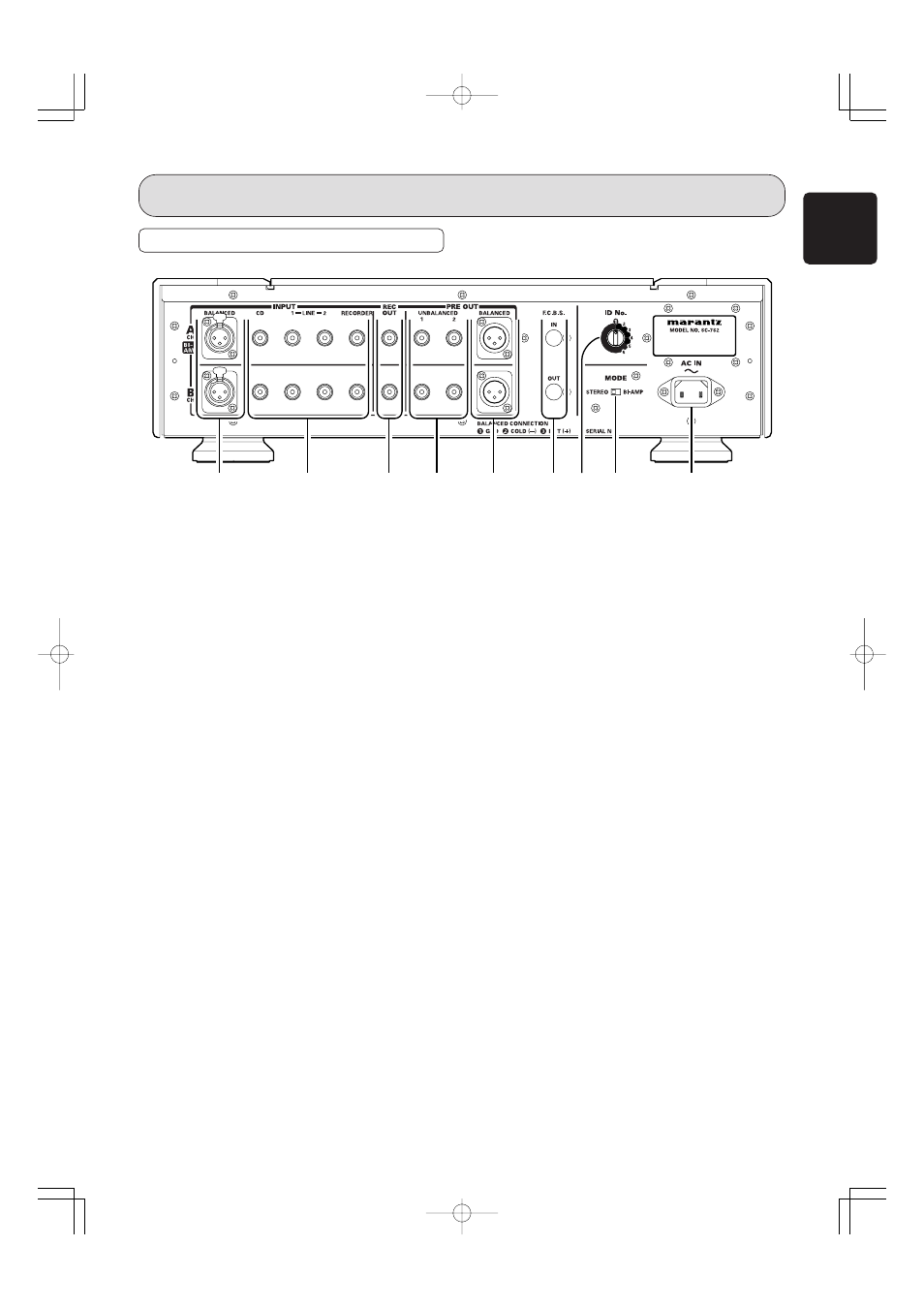

REAR PANEL
PUSH
PUSH
z
b
v
c
n
,
.
m
x
NAME AND FUNTION
z Input Balanced terminal
This terminal is to connect the components which have
balanced outputs i.e. CD Player.
When Bi-Amping, terminal B can not be used.
Balanced terminal
→
p5
x Input CD, Line 1, Line 2, Recorder (Unbal-
anced) terminal
This terminal is to connect the unbalanced terminals of
components., i.e. CD etc.
When Bi-Amping, terminal B can not be used.
c Rec out terminal
The terminal connects to the Input of Recording equip-
ment i.e. CD Recorders, Tape Recorder etc.
When Bi-Amping, the signal being input to channel A, will
be output to both A & B channels.
v Pre out Unbalanced 1,2 terminal
This connects to the un balanced inputs of a Power Amp.
When Bi-Amping, the signal being input to channel A, will
be output to both A & B channels.
b Pre out Balanced terminal
This terminal is connected to the Balanced input of the
Power Amplifier. When Bi-Amping, the signal being input
to channel A, will be output to both A & B channels.
n F.C.B.S. In/Out terminal
These terminals are for connecting one or more SC-7S2s
to each other. The IN is for receiving control signals. The
OUT is for sending Control signals.
m ID No. switch
Whilst several SC-7S2 are connected, to set up respective
ID No. to distinguish each products.
When only 1 unit is used, the No. will be set 1. Initial set-
ting is <1>.
This switch is to give ID numbers to each SC-7S2, when
two or more are used. When using only 1, SC-7S2 the ID
switch is set to 1. Factory setting is 1.
Trim adjustment in case of several units of SC-7S2
→
p18
If using 2 or more SC-7S2s, you can use the trim Adjust-
ment.
See page 18.
, Mode switch
The switch to change Stereo mode and Bi-Amp mode.
Initial setting is
• In case SC-7S2 is used for normal 2 channel.
Setting
• In case of complete Bi-Amp connection with 2 units of
SC-7S2.
Setting
In case of
channel will be out to both of A/B channels through Pre-
out terminal and Rec out terminal.
Then, input terminal on B channel can not be used.
This switch is to switch between Stereo & Bi-Amp Mode.
Factory setting is Stereo. Stereo is used for using only 1
SC-7S2. If using 2 or more SC-7S2s, you will set the switch
to Bi-Amp Mode. When Bi-Amping, the signal being input
to channel A, will be outputted to both A & B channels
through the Pre-out & REC out terminals. The B input ter-
minal can not be used in Bi-Amp Mode.
. AC IN socket
Connect to a household power outlet with supplied AC
CORD.
