RADIO OVERVIEW
English 18
Charging a High Capacity or Ultra High
Capacity Battery
The bracket in the charger must be adjusted to
the correct position for either Standard or High
capacity battery.
To adjust the charger to accommodate the High
capacity or Ultra High capacity battery:
1. Squeeze both tabs on each side of the
removable bracket in the drop-in charger tray
and lift the bracket from the tray.
2. Rotate the removable bracket 180 degrees and
replace it by fitting it in the charger slot until it
snaps. The label on the removable bracket
should show “High & Ultra Capacity Battery”
facing the front of the charger.
3. Repeat same procedure to return to the
charging a Standard Battery position. The label
on the removable bracket should show
“Standard Battery” facing front.

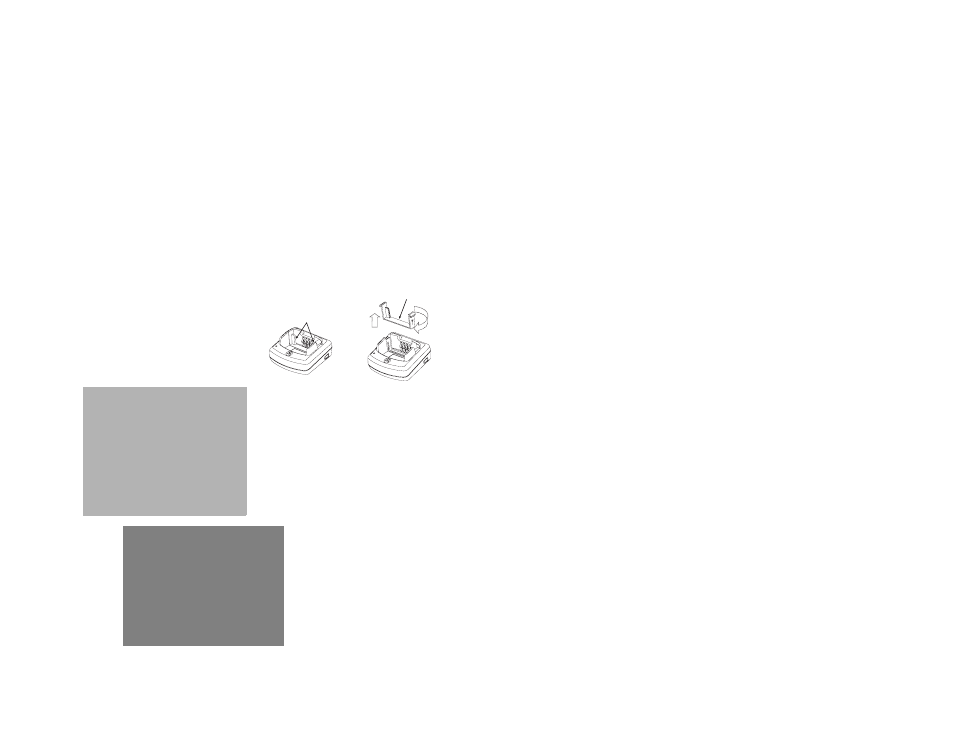

Removable
Piece
Removable
Piece
Turn around
horizontal
180 degree
