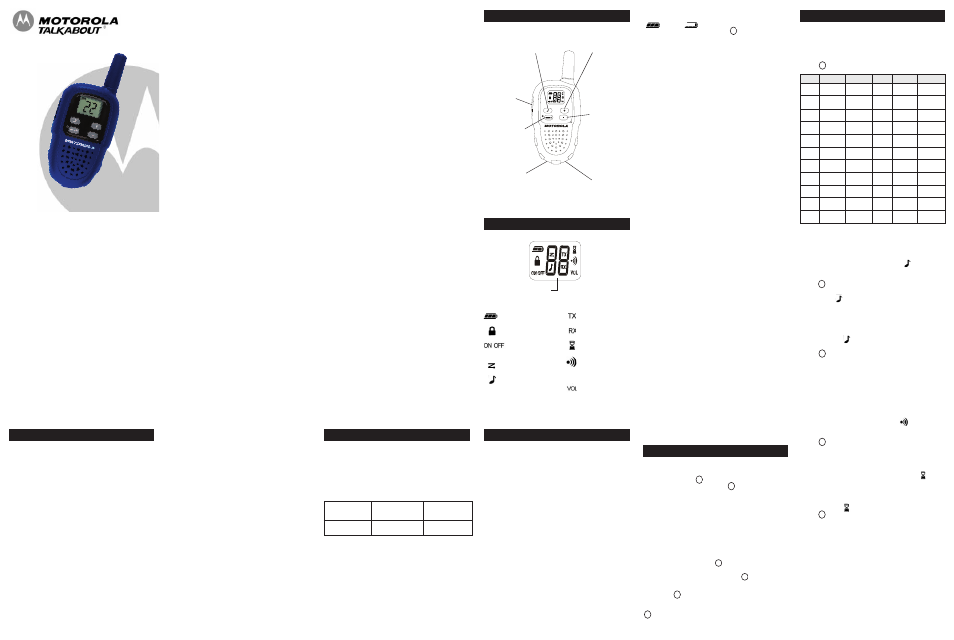

Motorola TALKABOUT FV300 - Manual

Two-Way Radio
User’s Guide
FV300 Series
Safety and General Information FCC Licensing Information
Control Buttons
KEM-PK14190-65
Important Information on Safe and Efficient Operation
Read This Information Before Using Your Radio.
The information provided in this document supersedes the general
safety information in user guides published prior to December 1, 2002.
Transmit and Receive Procedure
Your two-way radio contains a transmitter and a receiver. To control
your exposure and ensure compliance with the general
population/uncontrolled environment exposure limits, always adhere to
the following procedure:
• Transmit no more than 50% of the time.
• To receive calls, release the PTT button.
• To transmit (talk), press the Push to Talk (PTT) button.
Transmitting 50% of the time, or less, is important because the radio
generates measurable RF energy exposure only when transmitting (in
terms of measuring standards compliance).
Exposure to Radio Frequency Energy
Your Motorola two-way radio complies with the
following RF energy exposure standards and guidelines:
• United States Federal communications Commission, Code of Federal
Regulations; 47CFR part 2 sub-part J
• American National Standards Institute (ANSI)/Institute of Electrical
and Electronic Engineers (IEEE) C95. 1-1992
• Institute of Electrical and Electronics Engineers (IEEE) C95.1-1999
Edition
• International Commission on Non-Ionizing Radiation Protection
(ICNIRP) 1998
Getting Started
Display Screen Guide
Installing the Batteries
Each radio uses 1 NiMH rechargeable battery pack or 3 AAA alkaline
batteries and beeps when the batteries are low.
Installing NiMH Rechargeable Battery Pack (Optional
Accessory)
1. Turn the radio off.
2. With the back of the radio facing you, use the belt clip or a coin to
wedge the battery cover open.
3. Remove the battery pack from the clear plastic bag (Do not
disassemble or unwrap the battery pack).
4. Insert the NiMH battery pack with the diagram facing you.
5. Reposition the battery cover and press down to secure.
Installing the Three AAA Alkaline Batteries
1. Turn the radio off.
2. With the back of the radio facing you, use the belt clip or a coin to
wedge the battery cover open.
3. Insert the three AAA alkaline batteries with + and - polarity as
shown inside.
4. Reposition the battery cover and press down to secure.
Talking and Listening
To communicate, all radios in your group must be set to the same
channel and Interference Eliminator Code.
1. To talk, press and hold .
2. When you are finished talking, release .
For maximum clarity, hold the radio two to three inches away from your
mouth and speak directly into the microphone. Do not cover the
microphone while talking.
Talk Range
Your radio is designed to maximize performance and improve
transmission range. Do not use the radios closer than five feet apart.
Push to Talk Timeout Timer
To prevent accidental transmissions and save battery life, the radio
emits a continuous warning tone and stops transmitting if you press
for 60 continuous seconds.
Notes:
• The light will remain red after the battery pack is fully charged.
• When moving between hot and cold temperatures, do not charge the
battery until the battery temperature acclimates (usually about 20
minutes).
• For optimal battery life, unplug the charging adapter within 16 hours.
Do not store the radio while connected to the charger.
• When your radio is plugged into the AC power adapter, your radio will
automatically power off.
Low Battery Alert
In addition to your battery meter showing how much battery power you
have, your radio will beep to alert you to the fact that your batteries
are low.
Attaching and Removing the Belt Clip
1. Attach belt clip to pocket or belt strap.
2. Align the belt clip post with the hole in the back of the radio.
3. Gently push until the clip clicks in place.
To Remove
1. Push down on the release tab at the top of the belt clip to release
the catch.
2. Pull the belt clip away from the back of the radio.
Turning Your Radio On and Off
To turn on, press and hold MENU until a channel number appears
and the radio beeps. To turn off, press and hold MENU until the
radio beeps and the display goes blank.
Setting the Volume
Press
+ to increase or – to decrease the volume. The volume level
flashes and VOL displays.
Menu Options
Selecting the Channel
Your radio has 22 channels. The channel is the frequency your radio
uses to transmit.
1. Briefly press and release MENU. The channel number flashes.
2. Press + or – to select a channel.
3. Press to confirm or MENU to continue set up.
For More Information
For further information, you may call Motorola at 1-800-638-5119 (U.S.
and Canada), or e-mail us at [email protected] or visit us on the
Internet at www.motorola.com.
Setting and Transmitting Call Tones
Your radio can transmit different call tones to other radios in your group
so you can alert them that you want to talk. You have 10 call tones from
which to choose.
To set a call tone:
1. With the radio on, short press MENU until the
appears. The
current call tone setting flashes.
2. Press + or – to change and hear the call tone.
3. Press to set the new call tone or MENU to continue set up.
To transmit your call tone to other radios set to the same channel as
your radio, press
.
Note: Setting the call to 0 disables the call tone feature.
Keypad Tones
You may enable or disable the speaker key tones. You will hear the key
tone each time a button is pushed.
1. Press MENU until appears. The current setting On/Off will flash.
2. Press either + or – to turn On or Off.
3. Press to confirm or MENU to continue set up.
Note: When the Key Tone Feature is off, the following are not disabled:
• Transmit timeout alert tone;
• Power-down alert tone;
• Low battery alert tone; or
• The transmitted TCT tone.
Transmitting a Talk Confirmation Tone
You can set your radio to transmit a unique tone when you finish
transmitting. It is like saying “Roger” or “Over” to let others know you
are finished talking.
1. With the radio on, short press MENU until the appears. The
current setting On/Off flashes.
2. Press + or – to turn On or Off.
3. Press to set the talk confirmation tone or MENU to continue
set up.
Auto Power On/Off
Your radio will save power by automatically turning itself off if unused
after a predetermined amount of time.
1. Activate this setting by short pressing MENU until the displays.
The current setting (0, 30, 60, 90) will flash.
2. Press + or – to set the time to 30 minutes, 60 minutes or 90 minutes.
3. When you exit Menu mode, the setting timer will begin if you are not
using the radio.
4. The screen shows
5. Press to confirm or MENU to continue set up.
Call Tone Button
Short press sends call tone.
Push to Talk
(PTT)
Push to transmit,
release to listen.
In Menu mode,
push to confirm
selection.
Power/Menu
Button
Long press turns
radio on or off.
Short press
enters Menu
mode.
Plus Button
Increases volume
(volume level
flashes and VOL
displays).
In Menu mode,
enables you to
change the
channel or turn
features on or off.
Minus Button
Decreases
volume (volume
level flashes and
VOL displays).
In Menu mode,
enables you
change the
channel or to turn
features on or off.
Recharging
Jack
• Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure
to Radiofrequency Electromagnetic Fields in the Frequency Range
from 3 KHz to 300 GHz, 1999
• Australian communications Authority Radiocommunications
(Electromagnetic Radiation—Human Exposure) Standard, 2003
• ANATAL ANNEX to Resolution No. 303 of July 2, 2002 “Regulation of
limitation of exposure to electrical, magnetic and electromagnetic
fields in the radio frequency range between 9 KHz and 300GHz” and
“Attachment to resolution #303 from July 2, 2002”
To assure optimal radio performance and make sure human exposure
to radio frequency electromagnetic energy is within the guidelines set
forth in the above standards, always adhere to the following
procedures.
Portable Radio Operation and EME Exposure
Antenna Care
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications, or attachments could damage
the radio and may violate FCC regulations.
Do NOT hold the antenna when the radio is “IN USE.” Holding the
antenna affects the effective range.
Body-Worn Operation
To maintain compliances with FCC/Health Canada RF exposure
guidelines, if you wear a radio on your body when transmitting, always
place the radio in a Motorola-supplied or approved clip, holder, holster,
case or body harness for this product. Use of non-Motorola-approved
accessories may exceed FCC/Health Canada RF exposure guidelines.
If you do not use one of the Motorola-supplied or approved body-worn
accessories and are not using the radio held in the normal use
position, ensure the radio and its antenna are at least 1 inch (2.5 cm)
from your body when transmitting.
Battery Charger Safety Instructions:
Save these Instructions
1. Do not expose the charger to rain or snow.
2. Do not operate or disassemble the charger if it has received a sharp
blow, or has been dropped or damaged in any way.
3. Never alter the AC cord or plug provided with the unit. If the plug will
not fit the outlet, have the proper outlet installed by a qualified
electrician. An improper condition can result in a risk of electric
shock.
4. To reduce the risk of damage to the cord or plug, pull the plug rather
than the cord when disconnecting the charger from the AC receptacle.
5. To reduce the risk of electric shock, unplug the charger from the
outlet before attempting any maintenance or cleaning.
6. Use of an attachment not recommended or sold by Motorola may
result in a risk of fire, electric shock or personal injury.
7. Make sure the cord is located so it will not be stepped on, tripped
over or subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary.
Use of an improper extension cord could result in a risk of a fire
and/or electric shock. If an extension cord must be used, make sure
that:
• The pins on the plug of the extension cord are the same number, size
and shape as those on the plug of the charger.
• The extension cord is properly wired and in good electrical condition.
• The extension cord size is 18 AWG for lengths up to 100 feet, and
16 AWG for lengths up to 150 feet.
9. The supply cord of this charger cannot be replaced. If the cord is
damaged, call Motorola Product Services at 1-800-353-2729 in the USA
or 1-888-390-6456 TTY (text telephone).
Potentially Explosive Atmospheres
Turn off your radio prior to entering any area with a potentially explosive
atmosphere. Only radio types that are especially qualified should be
used in such areas as “Intrinsically Safe.” Do not remove, install or
charge batteries in such areas. Sparks in a potentially explosive
atmosphere can cause an explosion or fire resulting in bodily injury or
even death.
Note: The areas with potentially explosive atmospheres referred to
above include fueling areas such as below decks on boats, fuel or
chemical transfer or storage facilities, areas where the air contains
chemicals or particles (such as grain, dust or metal powders) and any
other area where you would normally be advised to turn off your vehicle
engine. Areas with potentially explosive atmospheres are often—but not
always—posted.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn off your
radio when you are near electrical blasting caps, in a blasting area, or in
areas posted “Turn off two-way radios.” Obey all signs and instructions.
Operational Cautions
Antennas
Do not use any portable radio that has a damaged antenna. If a damaged
antenna comes into contact with your skin, a minor burn can result.
Batteries
All batteries can cause property damage and/or bodily injury such as
burns if a conductive material—like jewelry, keys or beaded chains—
touch exposed terminals. The conductive material may complete an
electrical circuit (short circuit) and become quite hot. Exercise care in
handling any charged battery, particularly when placing it inside a
pocket, purse or other container with metal objects.
Exercise care when removing NiMH or AAA batteries. Do not use sharp
or conductive tools to remove either of these batteries.
Your Motorola radio operates on General Mobile Radio Service (GMRS)
frequencies and is subject to the Rules and Regulations of the Federal
Communications Commission (FCC). The FCC requires that all operators
using GMRS frequencies obtain a radio license before operating their
equipment. To obtain the FCC forms, please request Form 605 and 159,
which includes all of the forms and instructions you will need.
If you wish to have the document faxed or mailed, or if you have
questions, please use the following contact information:
You may also visit the FCC’s Web site at www.fcc.gov.
Changes or modifications not expressly approved by Motorola may void
the user’s authority granted by the FCC to operate this radio and should
not be made. To comply with FCC requirements, transmitter adjustments
should be made only by or under the supervision of a person certified as
technically qualified to perform transmitter maintenance and repairs in
the private land mobile and fixed services as certified by an organization
representative of the user of those services. Replacement of any
transmitter component (crystal, semiconductor, etc.) not authorized by
the FCC equipment authorization for this radio could violate FCC rules.
Note: Use of this radio outside the country where it was intended to be
distributed is subject to government regulations and may be prohibited.
Data Operation
If applicable, when using any data feature of the radio with or without
an accessory cable, position the radio and its antenna at least one
inch (2.5 cm) from the body.
Approved Accessories
For a list of approved Motorola accessories, visit out Web site at
www.motorola.com.
Electromagnetic Interference/Compatibility
Note: Nearly every electronic device is susceptible to electromagnetic
interference (EMI) if inadequately shielded, designed or otherwise
configured for electromagnetic compatibility. This device complies with
Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference; and
2. This device must accept any interference received, including
interference that may cause undesired operation.
Facilities
To avoid electromagnetic interference and/or compatibility conflicts,
turn off your radio in any facility where posted notices instruct you to
do so. Hospitals or health care facilities may be using equipment that is
sensitive to external RF energy.
Aircraft
When instructed to do so, turn off your radio when onboard on aircraft.
Any use of a radio must be in accordance with applicable regulations
per airline crew instructions.
Medical Devices – Pacemakers
The Advanced Medical Technology Association recommends that a
minimum separation of 6 inches (15 cm) be maintained between a
handheld wireless radio and a pacemaker. These recommendations are
consistent with the independent research by and recommendations of
the U.S. Food and Drug Administration.
People with pacemakers should:
• ALWAYS keep the radio more than 6 inches (15 cm) from their
pacemaker when the radio is turned ON.
• Not carry the radio in the breast pocket.
• Use the ear opposite the pacemaker to minimize the potential for
interference.
• Turn the radio OFF immediately if there is any reason to suspect that
interference is taking place.
Medical Devices – Hearing Aids
Some digital wireless radios may interfere with some hearing aids. In
the event of such interference, you may want to consult your hearing
aid manufacturer to discuss alternatives.
Medical Devices - Other
If you use any other personal medical device, consult the manufacturer
of your device to determine if it is adequately shielded from RF energy.
Your physician may be able to assist you in obtaining this information.
Safety and General Use While Driving
Check the laws and regulations regarding the use of radios in the area
where you drive, and always obey them. If you do use your radio while
driving, please:
• Give full attention to driving and to the road.
• Use hands-free operation, if available.
• Pull off the road and park before making or answering a call if driving
conditions so require.
The use of a two-way radio while engaged in activities requiring
concentration may cause distraction or otherwise impair your ability to
safely participate in such activities. Always use technology safely.
Do not place a portable radio in the area over an air bag or in the air
bag deployment area. Air bags inflate with great force. If a portable
radio is placed in the air bag deployment area and the air bag inflates,
the radio may be propelled with great force and cause serious injury to
occupants of the vehicle.
Channel Frequency Description Channel Frequency Description
1 462.5625
MHz
GMRS/FRS 12 467.6625
MHz
FRS
2 462.5875
MHz
GMRS/FRS 13 467.6875
MHz
FRS
3 462.6125
MHz
GMRS/FRS 14 467.7125
MHz
FRS
4 462.6375
MHz
GMRS/FRS 15 462.5500
MHz
GMRS
5 462.6625
MHz
GMRS/FRS 16 462.5750
MHz
GMRS
6 462.6875
MHz
GMRS/FRS 17 462.6000
MHz
GMRS
7 462.7125
MHz
GMRS/FRS 18 462.6250
MHz
GMRS
8 467.5625
MHz
FRS 19 462.6500
MHz
GMRS
9 467.5875
MHz
FRS 20 462.6750
MHz
GMRS
10 467.6125
MHz
FRS 21 462.7000
MHz
GMRS
11 467.6375
MHz
FRS 22 462.7250
MHz
GMRS
For a Fax:
Contact the Fax-On
Demand system
1-202-418-0177
For Mail Service:
Call the FCC Forms
Hotline
1-800-418-FORM (3676)
If You Have Questions
about the FCC License:
Call the FCC
1-888-CALL-FCC
(225-5322)
– Battery Meter
– Scan
– Transmitting
– Receiving
– Auto Power On/Off
– Call Tone
Confirmation
(Roger Beep)
– Volume
– Lock
– Call Tone, Keypad Tone
– On/Off for each
feature
Numbers displayed are for
Channel and Call Tone
PTT
PTT
PTT
PTT
PTT
PTT
PTT
PTT
Continued on back
FV300
Monitor Button
Use this feature to see if there is anyone on the channel you have
selected.
1. Short press MENU until RX appears.
2. When you finish listening, press to confirm or MENU to
continue set up.
Note: Monitor will time out after five seconds if or MENU is not
pressed.
PTT
PTT
PTT
Radio Battery Meter
The radio battery icon shows the radio battery charge level, from full
to empty . When the radio has one segment left, the
radio chirps periodically or after releasing (Low Battery Alert).
Removing the NiMH Battery Pack (Optional Accesory)
1. Turn the radio off.
2. With the back of the radio facing you, use the belt clip or a coin to
wedge the battery cover open.
3. Gently remove the NiMH battery.
4. Reposition the battery cover and press down to secure.
Removing the Three AAA Alkaline Batteries
1. Turn the radio off.
2. With the back of the radio facing you, use the belt clip or a coin to
wedge the battery cover open.
3. Gently remove each battery by easing each battery out individually.
4. Reposition the battery cover and press down to secure.
Notes:
• Excercise care when removing NiMH or AAA batteries. Do not use
sharp or conductive tools to remove either of these batteries.
• Remove the batteries before storing your radio for extended periods
of time. Batteries corrode over time and may cause permanent
damage to your radio.
Using the Plug-in Charging Adapter
The battery plug-in charger (adaptor) provides charging convenience
for NiMH batteries in one or both radios. Charge the NiMH battery
overnight (at least 16 hours) before using it for the first time. After the
initial charge, an empty battery is fully charged within 14 hours.
1. Follow the steps above to install a NiMH battery pack.
2. Connect the AC power adapter plug onto the recharging jack at the
bottom (right) of the radio. (The adapter charges two radios).
3. Plug the AC power supply into a standard wall outlet.
Audio Accessory Jack
PTT
