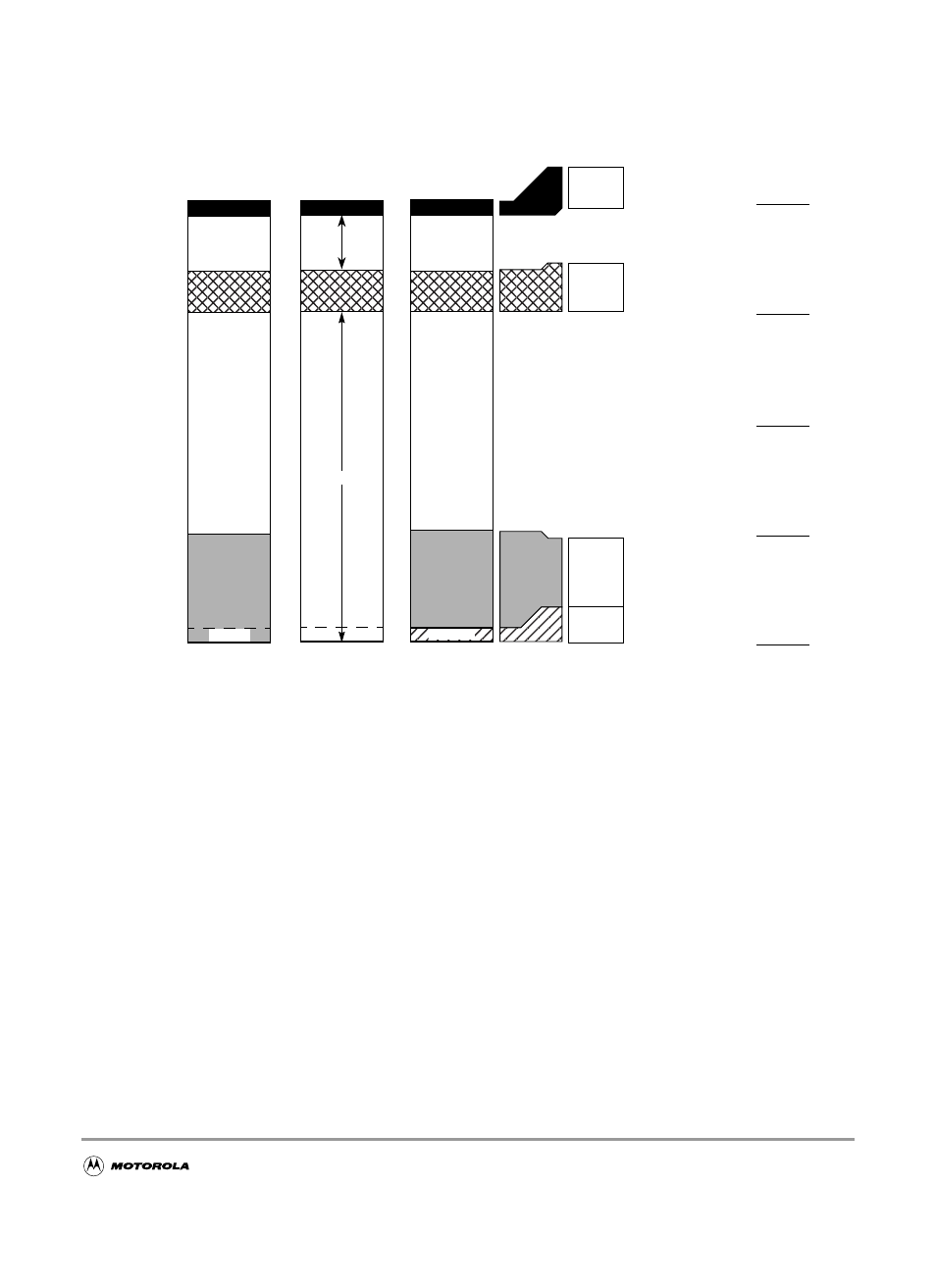

Figure 1-6 MC9S12GC16 User Configurable Memory Map
1.6 Detailed Register Map
The detailed register map of the MC9S12C Family is listed in address order below.
$0000
$FFFF
$C000
$8000
$4000
$0400
$FF00
EXT
NORMAL
SINGLE CHIP
EXPANDED
SPECIAL
SINGLE CHIP
VECTORS
VECTORS
$FF00
$FFFF
BDM
(If Active)
$C000
$FFFF
16K Fixed Flash EEPROM
$3800
$3FFF
$0000
$03FF
1K Register Space
Mappable to any 2K Boundary
Mappable to any 2K Boundary
2K Bytes RAM
$3800
The figure shows a useful map, which is not the map out of reset. After reset the map is:
$0000 - $03FF: Register Space
$0800 - $0FFF: 2K RAM
VECTORS
Flash Erase Sector Size is 512 Bytes
PAGE MAP
$3F
PPAGE
