SLM-5650 Satellite Modem Revision 1
CDI-70 Gigabit Ethernet Interface MN/SLM5650.IOM
E-5
E.5 1000 Base-T Ethernet (GbE) Interface Card Removal and Installation
WARNING
Ensure the unit is in a Power Off mode. Serious injury or
damage to the equipment could result. The card plugs in
upside down.

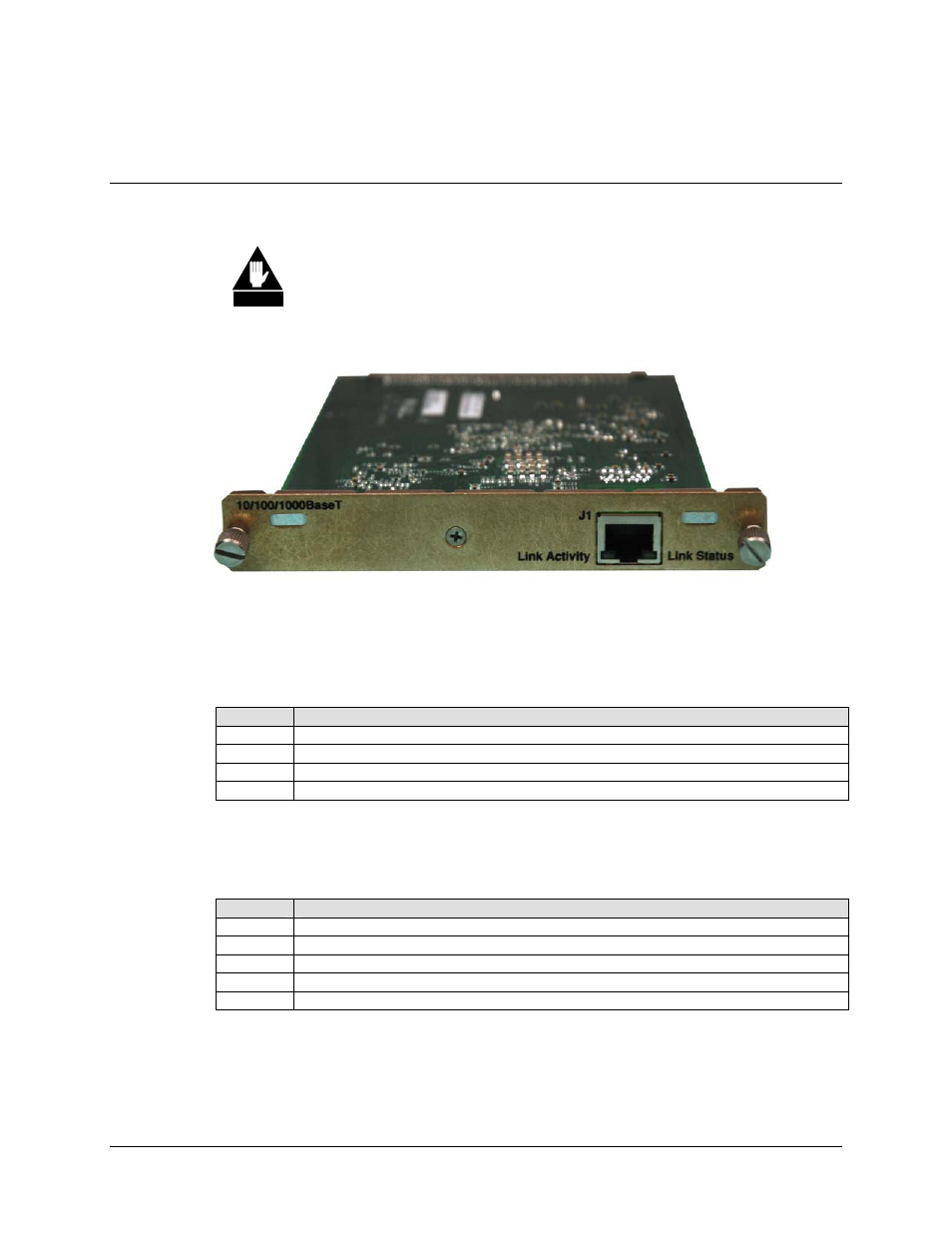

Figure E-3. 1000 Base-T Ethernet (GbE) Interface Card
Removal of the Interface Card:
Steps Procedures
1 Turn power to the modem off.
2 Disconnect the RJ-45 cable from the interface card.
3 Remove the two screws securing the interface card.
4 Pull out the interface card.
Installation of the Interface Card:
Steps Procedures
1 Insert the Interface Card into the slot.
2 Ensure that the interface card is secured to the internal card.
3 Secure the interface using the two capture screws.
4 Connect the RJ-45 cable to the interface card.
5 Turn power to the modem on.
