EDS-518A Series User’s Manual Featured Functions
3-13
Trunk Group (Maximum of 3 trunk groups)
Setting Description Factory Default
Trk1, Trk2, Trk3 Display or designate the Trunk Type and Member
Ports for Trunk Group 1, 2, 3. Trk1
Trunk Type
Setting Description Factory Default
Static Designated MOXA proprietary trunking protocol Static
LACP
Designated LACP (IEEE 802.3ad, Link
Aggregation Control Protocol) Static
Available Ports/Member Port
Setting Description Factory Default
Member/Available
Ports Use Up/Down buttons to add/remove specific ports
from available ports to/from trunk group. N/A
Check box Check to designate which ports to add or remove. Unchecked
Port Port number N/A
Port description Displays the media type for each module’s port N/A
Name Max. 63 Characters N/A
Speed
Indicates the transmission speed (100M-Full,
100M-Half, 10M-Full, or 10M-Half) N/A
FDX Flow Control
Indicates if the FDX flow control of this port is
“Enabled” or “Disabled.” N/A
Up
Add designated ports into trunk group from
available ports. N/A
Down
Remove designated ports from trunk group to
available port. N/A

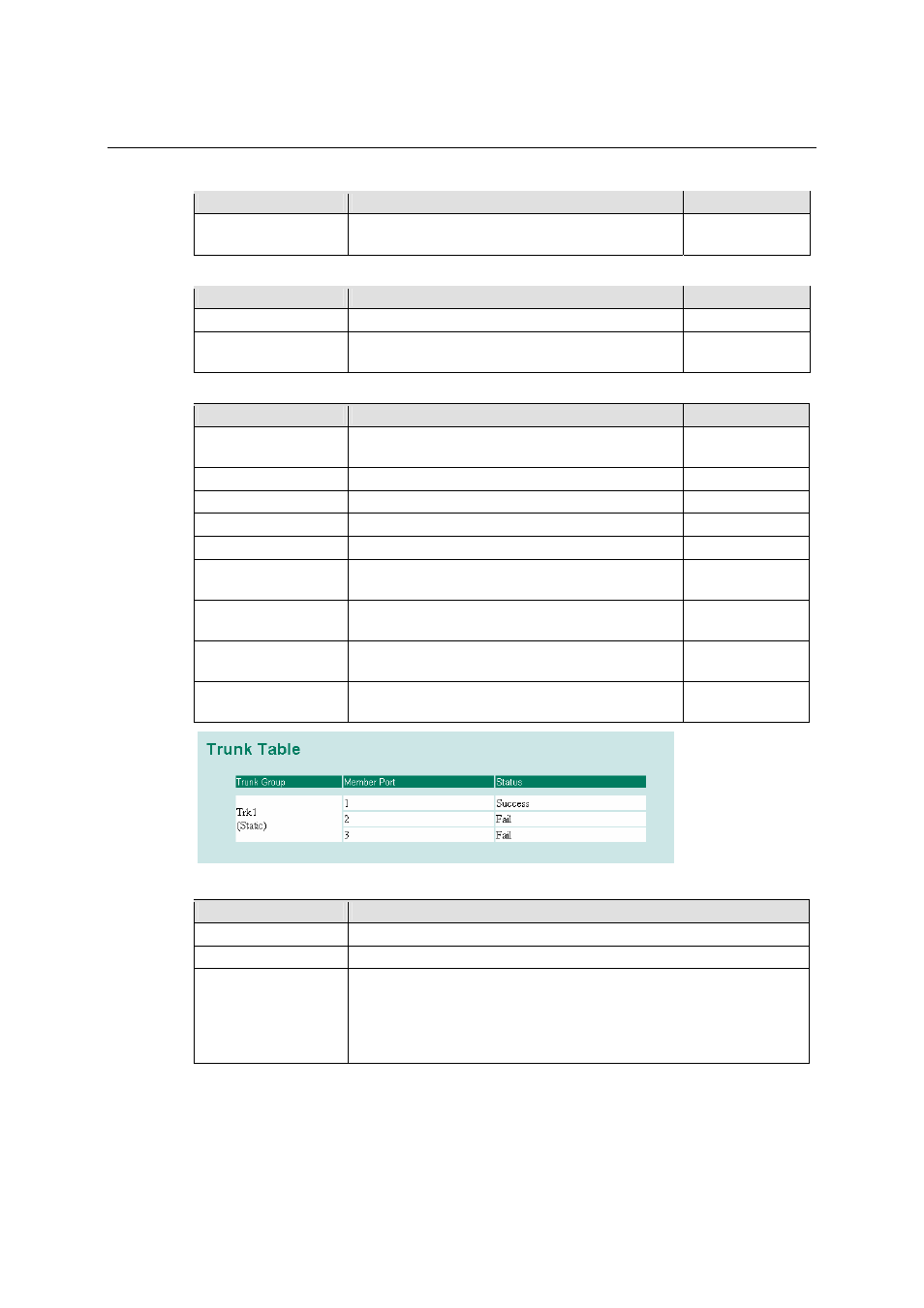

Trunk Table
Setting Description
Trunk Group Displays the Trunk Type and Trunk Group.
Member Port Display which member ports belong to the trunk group.
Status Success means port trunking is working properly.
Fail means port trunking is not working properly.
Standby means port trunking is working as a standby port. When there
are more than eight ports trunked as a trunking group, the 9
th
port will
be the standby port.
