18 2. TV Connections
For assistance call 1(800) 332-2119

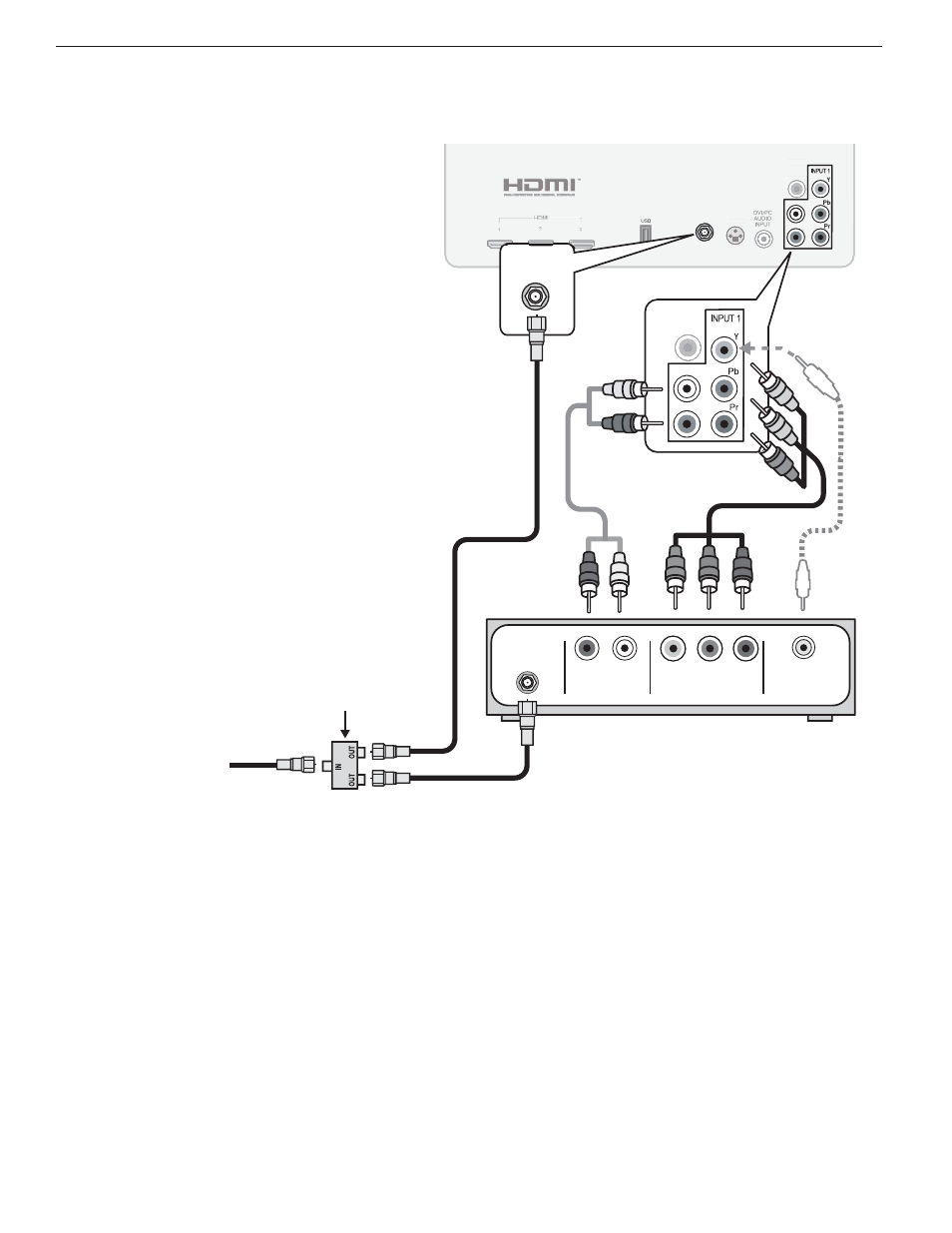

VCR or DVD Recorder to an
Antenna or Wall Outlet Cable
Required:
• Video cables
- Component video cables (red/blue/green)
or
- Composite video cable (usually yellow)
• RCA-type analog audio cables
• Two-way RF splitter
• Two coaxial cables
Note:
• Use composite video only if component
video or HDMI are unavailable. A
composite video connection cannot carry
high-definition video signals.
• If your recording device has an analog-only
tuner, you must use a digital converter box
to enable recording of digital broadcasts.
AUDIO OUT
COMPOSITE
VIDEO OUT
COMPONENT
VIDEO OUT
L R
3D
GLASSES
EMITTER
ANT
L
R
DIGITAL
AUDIO
OUTPUT
3D
GLASSES
EMITTER
ANT
L
R R
DIGITAL
AUDIO
OUTPUT
ANT
L
R
DIGITAL
AUDIO
OUTPUT
DIGITAL
AUDIO
OUTPUT
ANT
L
R
ANTENNA
IN
or
TV panel
Incoming
cable
RF Splitter
DVD Recorder or VCR
Composite video cable
Component
video cables
Audio
cables
