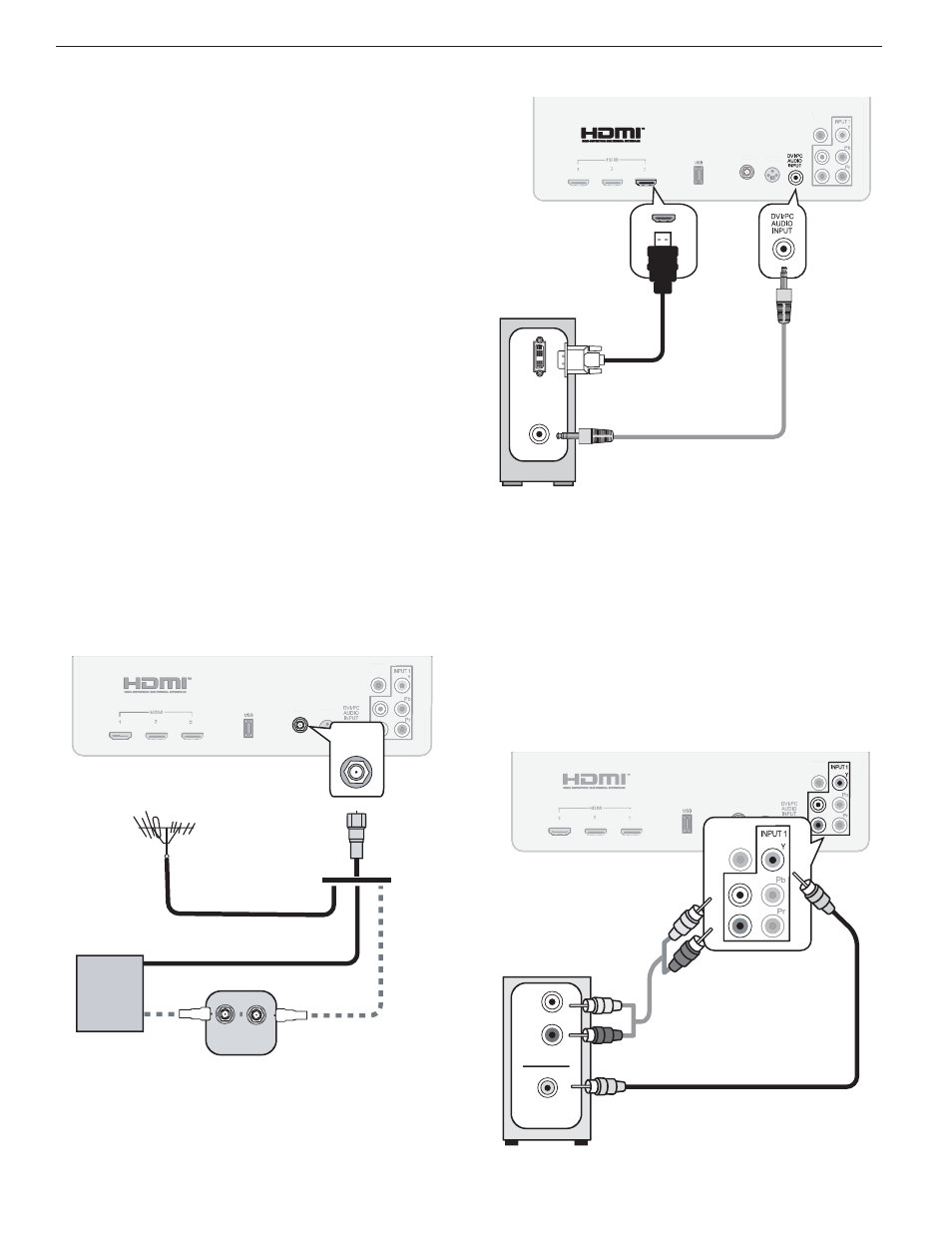

16 2. TV Connections
For assistance call 1(800) 332-2119
DVI OUT
3D
GLASSES
EMITTER
ANT
L
R
DIGITAL
AUDIO
OUTPUT
3D
GLASSES
EMITTER
ANT
L
R R
DIGITAL
AUDIO
OUTPUT
TV panel
Digital DVI
device
DVI-to-HDMI
cable
Audio cable
AUDIO
OUT
DV I Video Device
Examples: Computer or Older A/V Device
Note:
• This connection can carry high-definition video
signals.
• The HDMI connection supports copy protection
(HDCP).
Connect a DVI device (digital only) to one of the TV’s
HDMI input jacks.
Required:
Analog audio cable with stereo mini-plug
DVI-to-HDMI cable or DVI/HDMI adapter and HDMI
cable
Some devices require a connection using an analog
output first in order to view on-screen menus and to
select DVI as the output. Please review your equipment
instructions for DVI connectivity and compatibility.
Ante nna or Cable TV Service
Connect the incoming cable to the TV’s ANT input.
Reception over direct cable (no box) is limited to non-
scrambled analog and digital channels.
IN OUT
1
3D
GLASSES
EMITTER
ANT
1
L
R
DIGITAL
AUDIO
OUTPUT
3D
GLASSES
EMITTER
ANT
1 1
L
R R
DIGITAL
AUDIO
OUTPUT
ANT
ANT
Cable
TV
service
UHF/VHF
antenna
TV panel
Not recommeded. Other connec-
tion types provide better quality
audio and video.
Direct cable (no cable box)
or
or
Older
cable
box
Comp osite Video Device
VCR or other device with composite video
output
Note: This connection does not support high-defini-
tion video signals.
Required:
Composite video cable (usually yellow)
RCA-type analog audio cables
3D
GLASSES
EMITTER
ANT
L
R
DIGITAL
AUDIO
OUTPUT
3D
GLASSES
EMITTER
ANT
L
R R
DIGITAL
AUDIO
OUTPUT
TV jack panel
L
R
L
R
DIGITAL
AUDIO
OUTPUT
DIGITAL
AUDIO
OUTPUT
AUDIO OUT
COMPOSITE
VIDEO OUT
L
R
Audio
cables
VCR or other device
with composite
video output
Composite
video cable
