2. TV Connections 15
For assistance call 1(800) 332-2119
3D
GLASSES
EMITTER
ANT
L
R
DIGITAL
AUDIO
OUTPUT
3D
GLASSES
EMITTER
L
R
DIGITAL
AUDIO
OUTPUT
HDMI
cable
TV jack panel
Any device with
HDMI output
CABLE IN or
SATELLITE IN
Incoming from
cable service or
satellite dish
Pb
Y
Pr
AUDIO
L
R
3D
GLASSES
EMITTER
ANT
L
R
DIGITAL
AUDIO
OUTPUT
3D
GLASSES
EMITTER
ANT
L
R R
DIGITAL
AUDIO
OUTPUT
TV jack panel
L
R
L
R
DIGITAL
AUDIO
OUTPUT
DIGITAL
AUDIO
OUTPUT
Incoming from
cable service or
satellite dish
Component
video cables
Component
video device
Audio
cables
CABLE IN or
SATELLITE IN

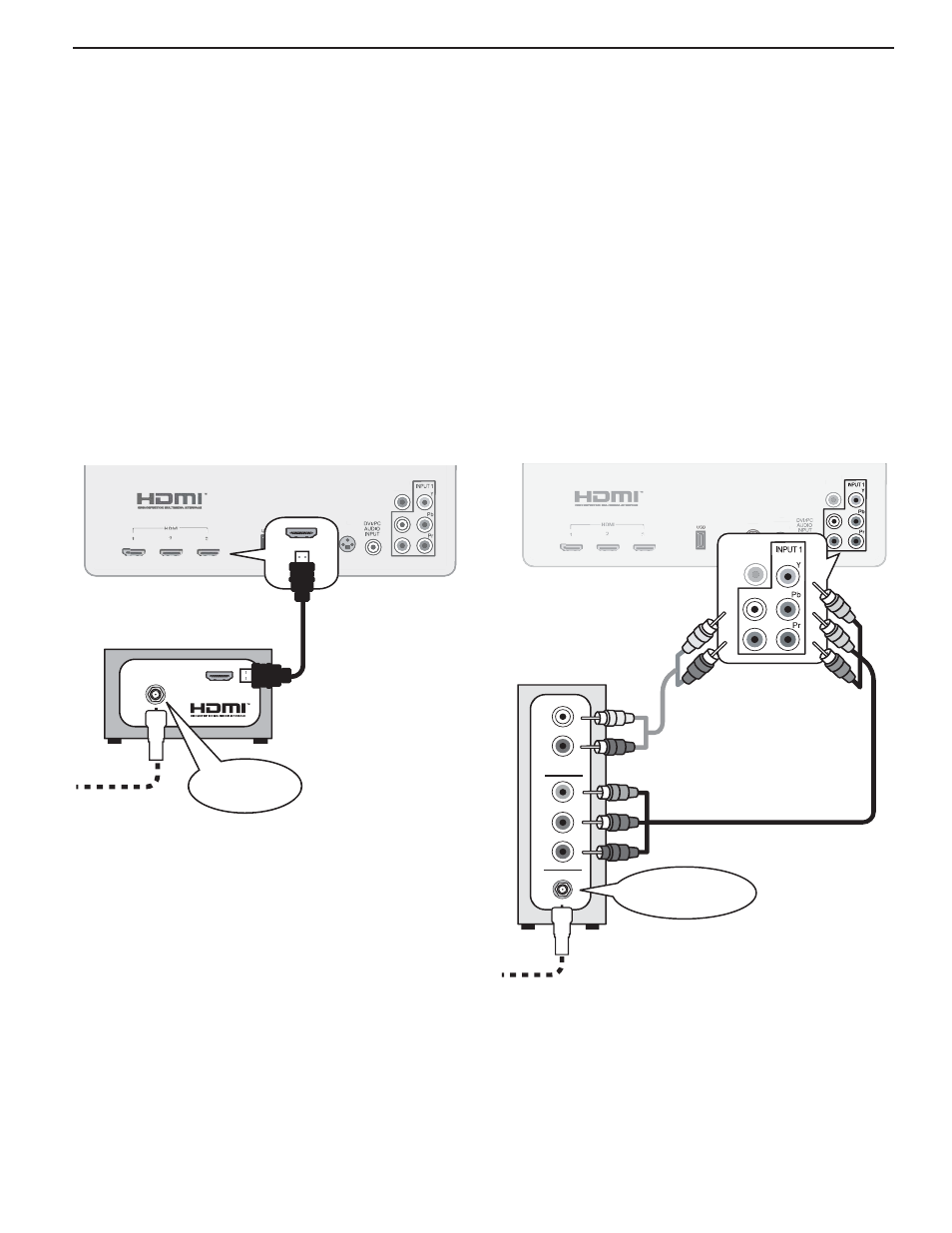

HD MI Device
Examples: HDTV Cable Box, Satellite Receiver,
or DVD/Blu-ray Player
Required: HDMI cable.
Connect an HDMI cable from the TV to the device’s
HDMI output. HDMI-connectable devices provide
video and audio through a single cable.
Mitsubishi recommends using high-speed HDMI cables
to connect newer devices incorporating HDMI technol-
ogy. See “HDMI Cable Categories” on the opposite page
for more on HDMI cable types.
Note:
• This connection carries high-definition video,
3D video, and Dolby Digital 5.1 audio signals.
• This connection supports copy protection
(HDCP).
Y Pb Pr Co mponent Video Device
Examples: HDTV Cable Box, Sa tellite Receiver,
or DVD/Blu-ray Player
If your source device has an HDMI output, use the con-
nections for an HDMI device described on this page
instead of component video.
Required:
Component video cables
RCA-type analog audio cables
Note:
•
This connection carries high-definition video
signals.
• To hear digital surround sound from an A/V
receiver, connect the digital audio output from the
device directly to your digital A/V receiver.
