46
Using an Audio Amplifier
Using an AV Amplifier with built-in digital surround
If you are using an Amplifier with a built-in digital surround as follows, you can enjoy the various audio systems
including Dolby Digital Surround audio that sounds just like the movie.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby
Laboratories. Confidential unpublished works. © 1992-1997 Dolby Laboratories, Inc. All rights reserved.
DTS and DTS Digital Out are trademarks of Digital Theater Systems, Inc.
Connect an AV amplifier with built-in Dolby Digital decoder, DTS decorder, MPEG decorder or etc as
shown below.
• Set the AUDIO OUTPUT to DIGITAL in the SETUP mode. (See page 44.)
Connecting the optical digital cable
• When you connect the optical digital cable (not supplied), remove the dust protection cap from the rear of DVD.
• When not using the optical digital cable, attach the dust protection cap to protect against dust.
*
*

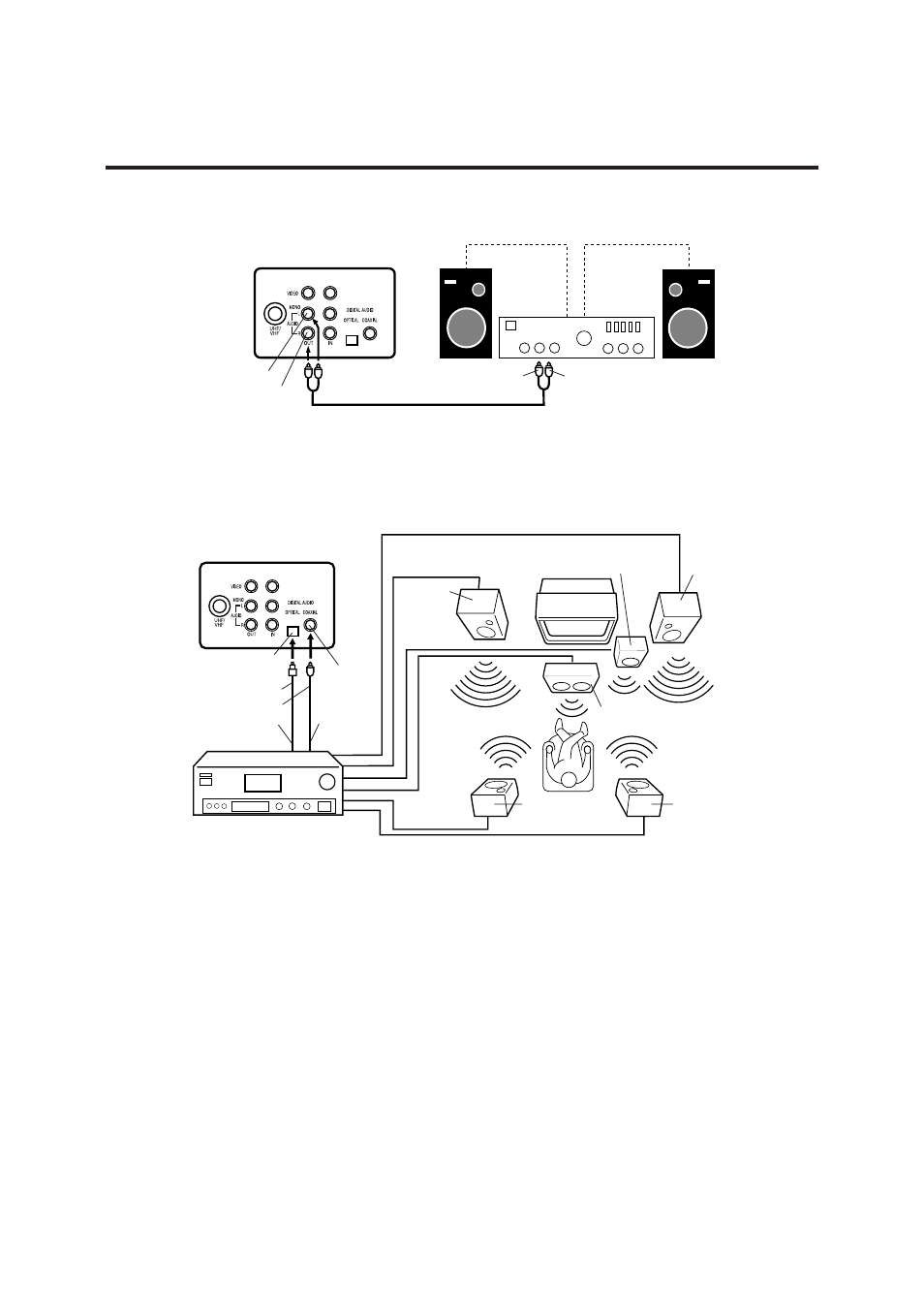

Connections to other equipments
The exact arrangement you use to interconnect various video and audio components to the TV/DVD is depend-
ent on the model and features of each component. Check the Owner's Manual provided with each component
for the location of video and audio inputs and outputs.
To Audio (L) Input To Audio (R) Input
AUDIO cord (not supplied)
Amplifier
Rear of TV/DVD
Audio (R) Output
Audio (L) Output
To Optical Digital Audio Input
Optical Digital Audio Output
Optical digital cable (not supplied)
Coaxial digital cable (not supplied)
AV Amplifier with built-in digital
surround decoder as listed above
Center Speaker
Front
Speaker
(Left)
Front
Speaker
(Right)
Subwoofer
Surround
Speaker (Left) Surround
Speaker (Right)
Coaxial
Digital Audio
Output
To Coaxial
Digital
Audio Input
Rear of TV/DVD
TV/DVD
NOTE:
•
•
•
•
•
When you make the connections above, do not set DOLBY DIGITAL to DOLBY DIGITAL, MPEG to MPEG to ON on the AV
Amplifier. If you do, a loud noise will suddenly come out from the speakers, affecting your ears or causing the speakers to be
damaged.
Caution for the optical digital audio output connector: Do not connect to an amplifier (with an optical digital input connector)
which does not contain a Dolby Digital or MPEG decoder. Otherwise, any attempt to play DVDs may cause such a high level of
noise that it may be harmful to your ears and damage your speakers.
When you make the connections above, do not set DOLBY DIGITAL to DOLBY DIGITAL, MPEG to MPEG or DTS to ON on the
AV Amplifier. If you do, a loud noise will suddenly come out from the speakers, affecting your ears or causing the speakers to be
damaged.
Caution for the optical digital audio output connector: Do not connect to an amplifier (with an optical digital input connector)
which does not contain a Dolby Digital, DTS or MPEG decoder. Otherwise, any attempt to play DVDs may cause such a high
level of noise that it may be harmful to your ears and damage your speakers.
Some DTS decoders which do not support DVD-DTS interface may not work properly with the unit.
