OM-1500-14 Page 15
803 197-A
1 Interconnecting Cables
2 Interconnecting Cable
Receptacles
3 14-Pin Cord

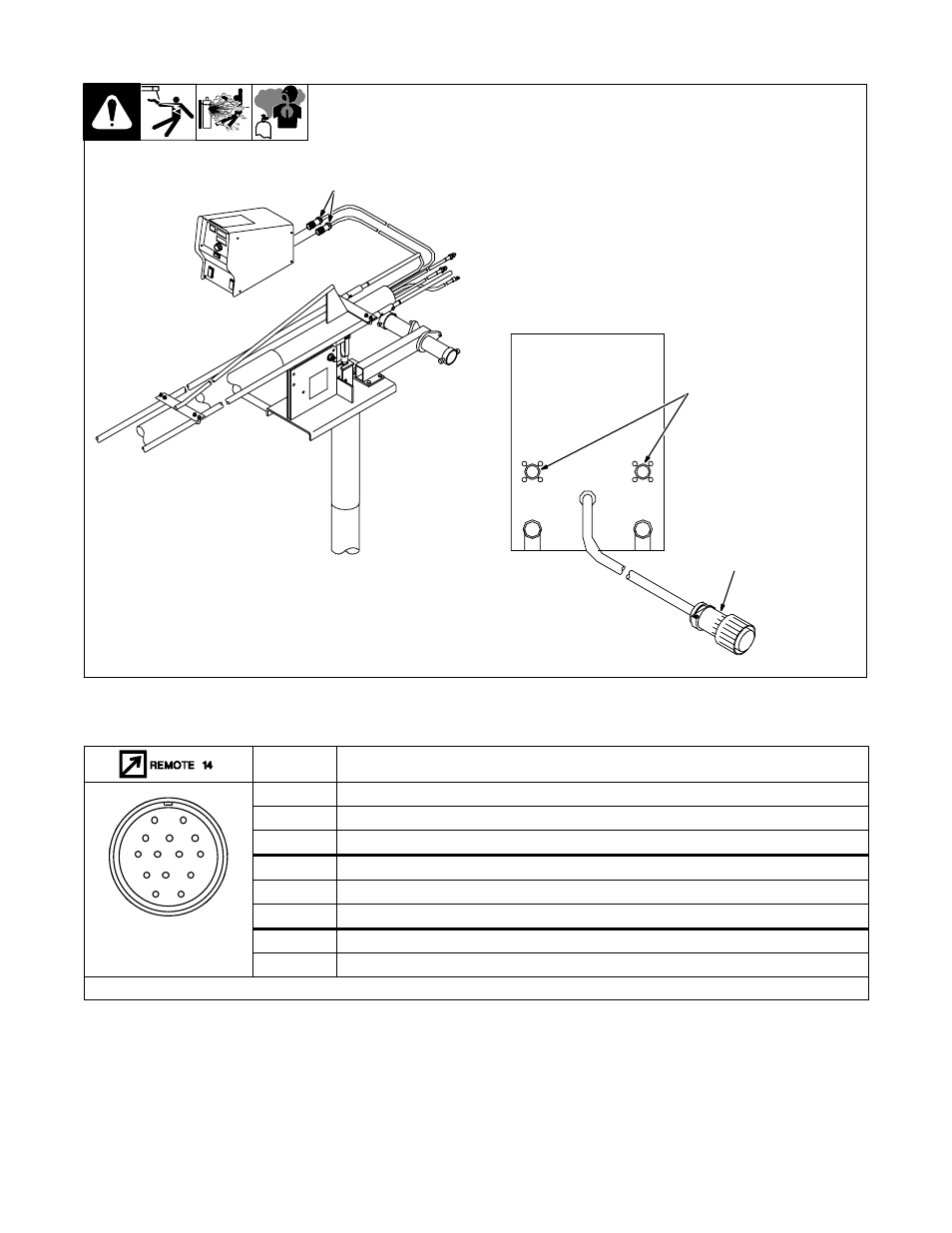

4-6. Control Box Connections
1
3
2
4-7. 14-Pin Plug Information
Pin* Pin Information
A 24 volts ac with respect to socket G.
A J
K
B Contact closure to A completes 24 volts ac contactor control circuit.
A J
B
K I
L
G Circuit common for 24 volts AC circuit.
C
L N H
D M G
C +10 volts dc input from power source to wire feeder with respect to socket D.
D M G
E F
D Remote control circuit common.
E F
E 0 to +10 volts dc output signal from wire feeder to power source with respect to socket D.
H Voltage feedback; 0 to +10 volts dc, 1 volt per 10 arc volts.
F Current feedback; 0 to +10 volts dc, 1 volt per 100 amperes.
*The remaining pins are not used.
