Locate the factory wiring har-
ness in the dash. Metra
recommends using the proper
mating adapters (included)
from Metra and AXXESS to
integrate your new radio. Re-
connect the negative battery
terminal and test the unit for
proper operation.

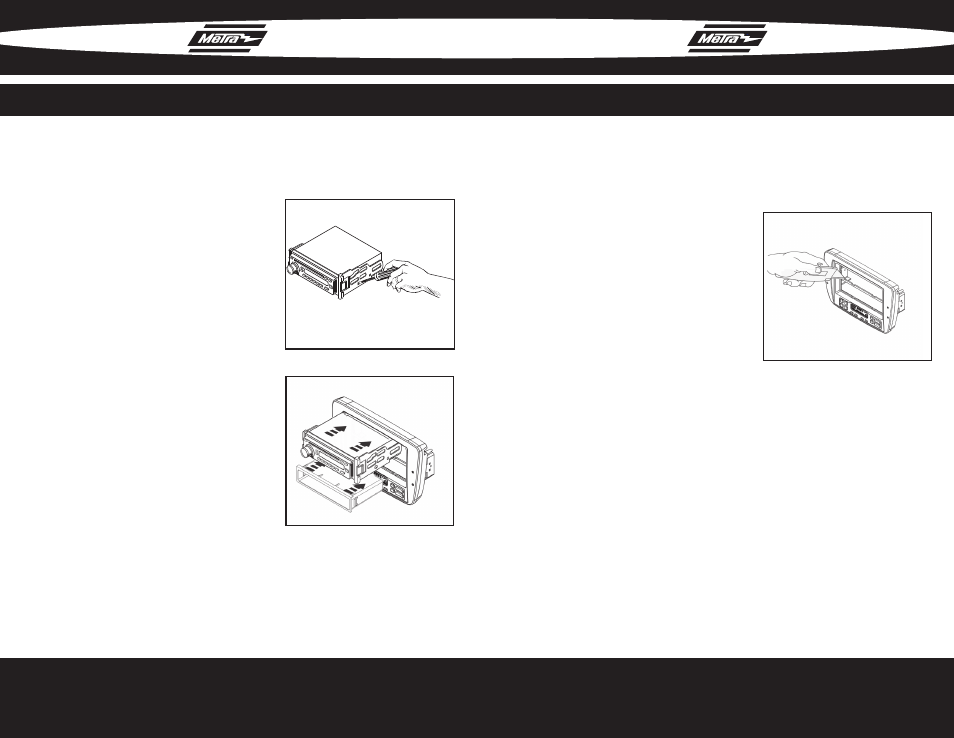

Mount the ISO Brackets to the
head unit with the screws sup-
plied with the unit. (Fig. A)

Snap the pocket into the bot-
tom opening of the radio hous-
ing. (Fig. B)

Slide the head unit into the ra-
dio opening until the side clips
engage. (Fig. B)

Snap the Trim plate into the
Radio Housing.

Continue to “Audio Wiring”....

Cut and remove the center
bar from the radio housing.
(Fig.A)

Snap the Double DIN brack-
ets to the inside edge of the
Double DIN trim plate.

Slide the Double DIN head
unit or stacked ISO head units
into the bracket/radio housing
assembly and secure the Dou-
ble DIN head unit or stacked
ISO head units to the assem-
bly using the screws supplied
with the radio. (Fig. B)

FORD TAURUS 2004- 2007

ISO DIN HEAD UNIT PROVISION

DDIN/STACKED ISO DIN
HEAD UNIT PROVISION

Continued on Pg. 6
