99-8100
INSTALLATION
INSTRUCTIONS
TOOLS REQUIRED
Cutting tool
Phillips screwdriver

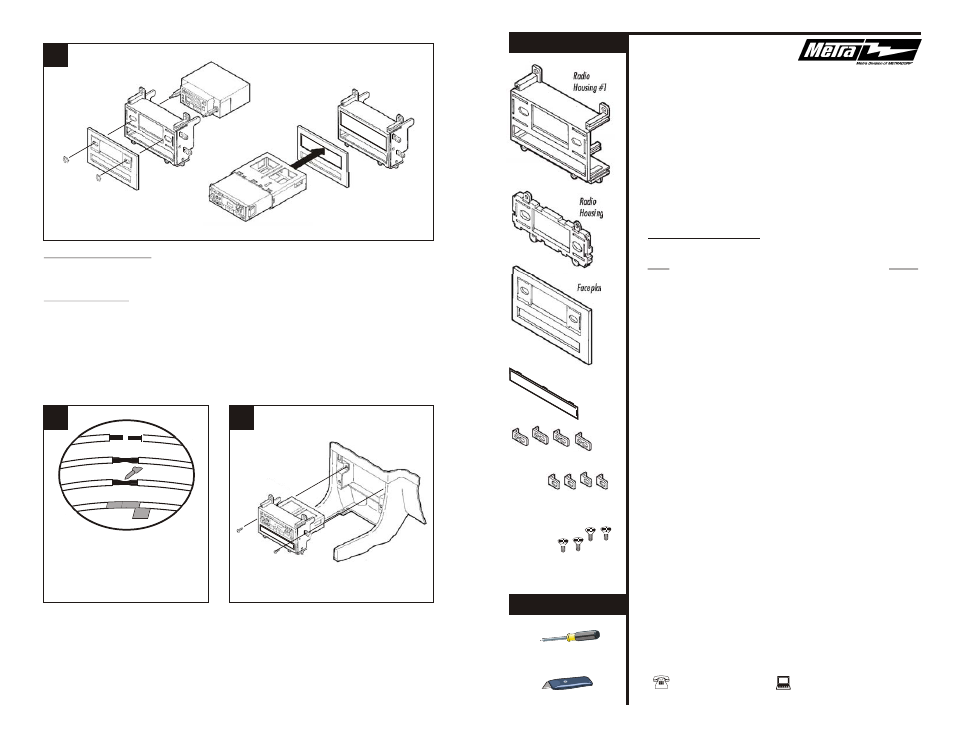

KIT COMPONENTS
rev. 201202
Radio
Housing #1
Radio
Housing #2
Faceplate
Equalizer
Dummy Plate
Mounting Tabs #3
Mounting Tabs #8
APPLICATIONS
CAR PAGE
TOYOTA
4Runner 1984-88..........................................................................8
Camry 1983-86.............................................................................1
Celica 1982-85.............................................................................. 1
Celica (GT/GTS) 1986-89...............................................................2
Celica (ST) 1986-89....................................................................... 2
Celica 1990-93.............................................................................. 3
Corolla (sport coupe/liftback) 1982-83.......................................... 3
Corolla 1984-87............................................................................ 4
Corolla (sedan/wagon-lower dash) 1988-93.................................. 4
Corolla (sedan/wagon-upper dash) 1988-93.................................. 5
Cressida 1985-87.......................................................................... 5
Landcruiser 1982-87..................................................................... 6
Landcruiser 1988-92..................................................................... 6
MR2 1985-86................................................................................7
MR2 1987-90................................................................................7
Pickup 1984-88.............................................................................8
Pickup (single DIN) 1989-91..........................................................8
Pickup (double DIN) 1989-91........................................................ 9
Supra 1983-85..............................................................................1
Supra 1986.5-92...........................................................................9
11
INST 8100
5 6
Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit). Re-connect the battery terminal and test the unit
for proper operation. Mount the head unit/kit
assembly to the sub-dash with those screws
previously removed in step #1. (It may be
necessary to trim the ends of the Mounting Tabs
to provide proper clearance).
A
B
C
D
A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
4
2-SHAFT HEAD UNITS: Snap the Faceplate onto the front of the Radio Housing. (For
applications using Faceplate #2, cut and remove the bottom portion of the Faceplate). Slide
the aftermarket head unit into the kit and secure with shaft nuts. (see Fig. A)
DIN HEAD UNITS: Cut and remove the shaft supports from the Faceplate and Radio
Housing. (For applications using Faceplate #2, cut and remove the bottom portion of the
Faceplate). Snap the Faceplate onto the front of the Housing. Slide the DIN cage into the kit
and secure by bending the metal locking tabs down. Slide the aftermarket head unit into the
cage until secure. (see Fig. B)
(If an equalizer will be included, slide the unit into the back of the Radio Housing and secure.
If an equalizer will NOT be included, snap the Equalizer Dummy Plate into the opening).
Fig. A
Fig. B
Celica 1990-93
application
shown
(4) Phillips Pan-head
Screws
1-800-221-0932 www.metraonline.com
