2 7
Remove the In-Car temp
sensor housing from the
back of the factory control
panel. Insert into the includ-
ed In-Car temp sensor
housing and mount the
assembly under the dash.

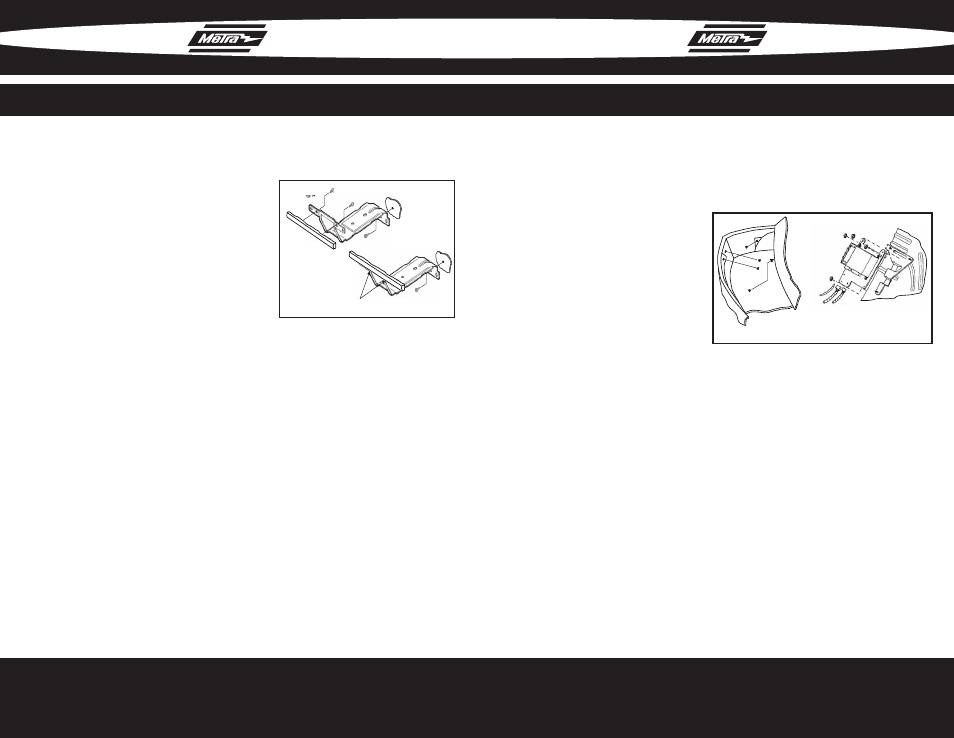

Remove the factory rear sup-
port in the sub-dash. (Fig. A)
99-5719 KIT PREPARATION
1
2
A
Continue to Kit Assembly
FORD TAURUS 2004- 2007 FORD TAURUS 2004- 2007
2
Fig. A
Fig. B
Back
wall
Inside edge
of sub-dash
Inside edge
of sub-dash
Back
wall
99-5719
AUDIO WIRING
Open the trunk, remove (4) pop-
clips from the driver’s side trunk
liner and remove the liner. (see
Fig. A) ocate the factory tuner on
the wall of the trunk and discon-
nect the speaker and antenna plugs
(it is NOT necessary to remove
the tuner). (see Fig. B). Plug the
70-5715 into the unit speaker plug
and the antenna extension lead into
the unit antenna plug. Slide the ex-
tension harness through the space
in the back seat between the seat
back and seat bottom. Unclip the
rocker trim, tuck the extension har-
ness under the carpet and stretch
the harness to the back of the dash.
(Replace the rocker trim when
completed). Splice the speaker
leads on the extension harness into
the rear of the aftermarket head
unit. Plug the factory wiringhar-
nesses into the switch connectors
(previously mounted in step #2)
and audio connectors on the back
of the Integrated Mounting Kit.
(located under
the rear deck)
Fig. A
Fig. B
