OWNER’S MANUAL
* Single-phase, 1.0 power factor
MODEL MGH10000C MGH8500AIE
Electrical
Rated Wattage .........................10,000 ............................ 8500
Rated Amperage
120 V ....................................83.3 ...............................70.8
240 V ....................................41.7 ...............................35.4
Receptacle
120-V, 20-A Duplex .................... Yes ................................ Yes
120-V, 15-A GFCI ...................... Yes ................................ Yes
120-V Twist-Lock ................... 30 Amp ............................. Yes
120/240-V Twist-Lock ............. 30 Amp ............................. Yes
120/240-V, 50-A ......................... Yes .................................No
General
Honda Engine H.P. ...................... 20 .................................. 20
Honda Model .................... GX620K1VXE2 .............GX620K1VXE2
Fuel Type ............................... Gasoline ........................ Gasoline
Fuel Tank Capacity .................. 13 gal. ............................8 gal.
Oil Alert System ......................... Yes ................................ Yes
Auto-Idle .................................... Yes ................................ Yes
Hour Meter ................................. Yes ................................ Yes
Start Method .......................... Electric .......................... Electric
Weight (pounds) ........................ 350 ................................ 325
Note: Ratings apply to SAE standard
conditions. Reduce ratings 3 1 /
2
% for
each 1000 feet above sea level and 1% for
each 10° Fahrenheit rise above 60°F.
SPECIFICATIONS GENERATOR
FEATURES
OIL ALERT SYSTEM
The oil alert system protects the engine from
low oil damage. This system automatically
shuts down the engine and prevents engine
restarting if the oil level falls too low.
Note: When this happens, the engine switch
remains in the ON position. The oil alert
system is wired into the ON/OFF Switch.
If this system shuts down the engine, the
engine will not start until you add oil. Add
oil to engine (see Engine Oil, page 7).
Note: Operate generator on a level surface.
If not level, the oil may flow away from the
oil level sensing device. This will cause the
oil alert system to shut down engine.
See engine owner’s manual for more
information.

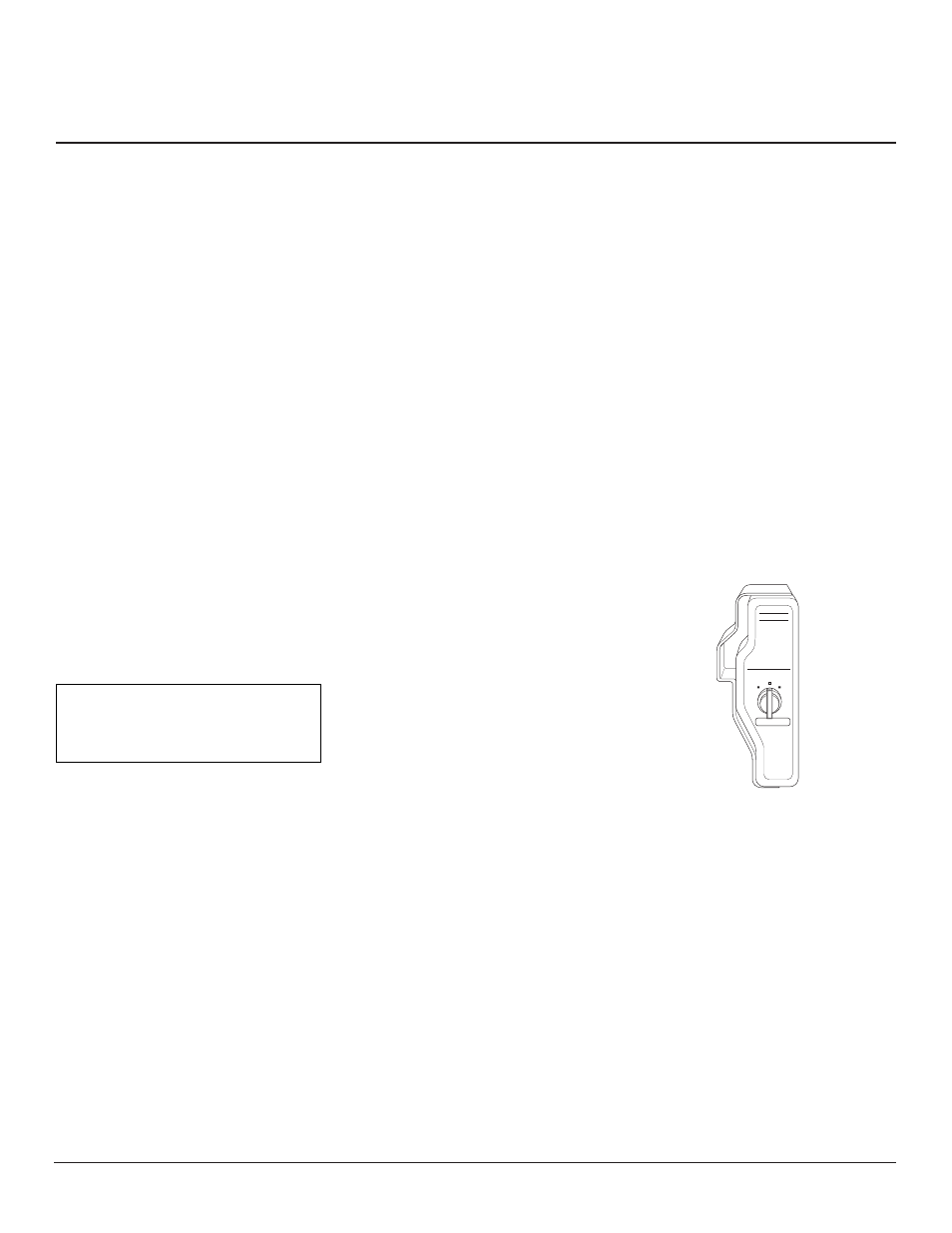

Figure 3 - Engine Switch Location
HONDA
OFF
ON
START
ENGINE SW
