23

117846

OWNER’S MANUAL

† Includes reference numbers 1 through 16
‡ Not shown

Reset

Reset

Reset

Reset

Reset

Reset

120

Volt

Auto

Idle

200 V

p;t

Sele

ctor

Off

On

P

4

P

3

P

2

P

5

P

1

RESE

T

TES

T

ENM

0000

0005

HOURS

1/1

0

7

5

10

19

13

5

5

17

15

6

3

16

4

11

18

2

8

12

12

2

9

1

4

14

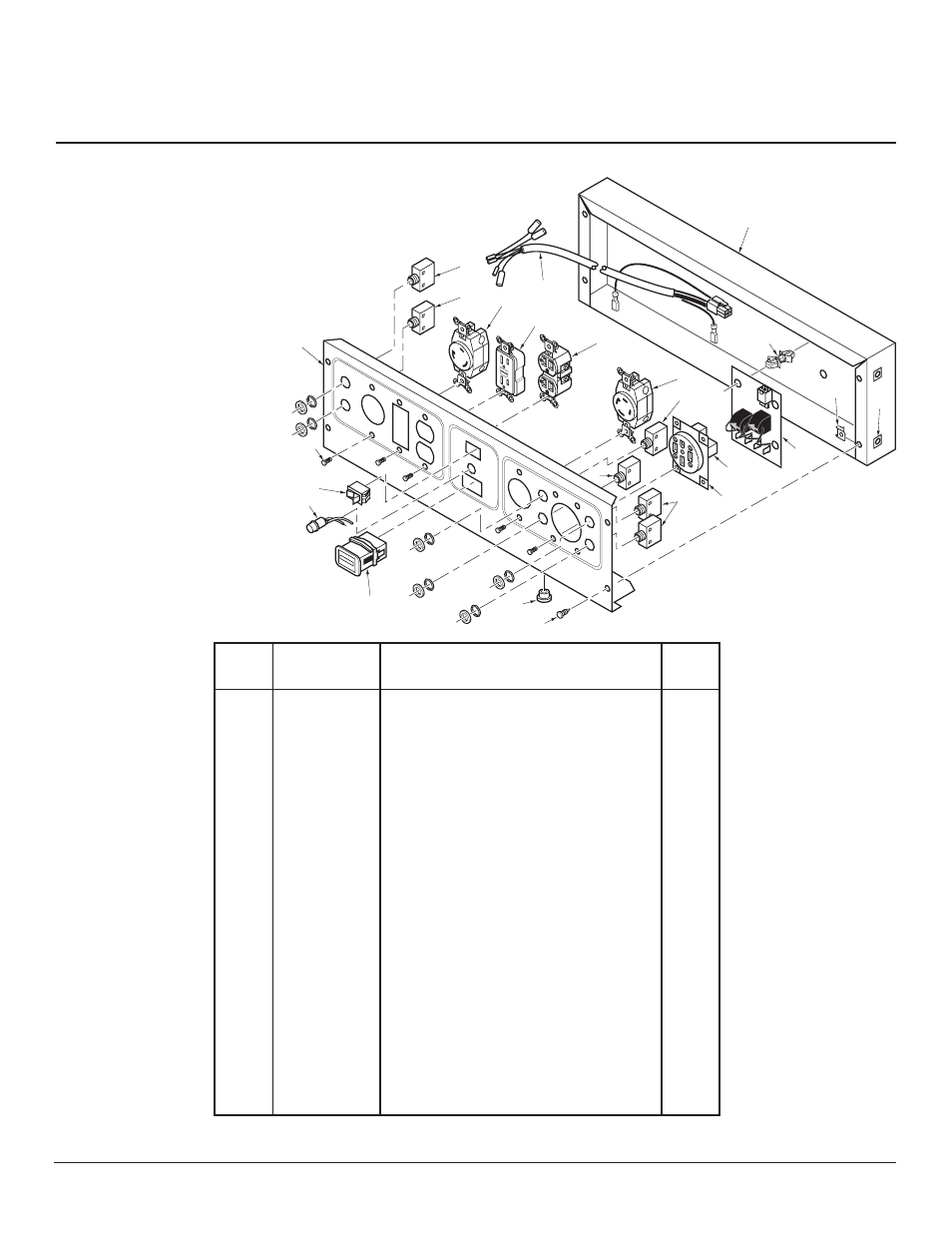

ILLUSTRATED

PARTS LIST

For Model MGH10000C

Control Panel

This list contains replaceable parts used in
your generator. When ordering parts, follow
the instructions listed under Replacement
Parts

on page 25 of this manual.

KEY

NO.

PART

NUMBER

DESCRIPTION

QTY.

1

103182-01

Control Panel

1

2

22616009

Circuit Breaker, 20 Amp

2

3

099833-01

120V, 30A Twist-Lock Receptacle

1

4

100410-01

Sems Screw, #8-18 x 1/2"

16

5

22261000

U-Nut

20

6

100445-01

20V, 15A Duplex (GFCI) Receptacle

1

7

103183-01

125/250V, 50A Receptacle

1

8

103184-01

Circuit Breaker, 45 Amp

2

9

26299000

Run Light

1

10

101350-01

Hour Meter

1

11

099834-01

120/240V, 20A Twist-Lock Receptacle

1

12

22616010

Circuit Breaker, 30 Amp

2

13

099760-01

Bushing

1

14

103185-01

Control Box

1

15

100366-01

Rocker Switch

1

16

104202-01

120V, 20A Duplex Receptacle

1

17

116549-01

Auto-Idle Control Board

1

18

114785-01

Locking Circuit Board Supports

4

19

116678-01

Auto-Idle Wiring Harness

1

102927-02

Control Panel Assembly

1

100177-08

Panel Schematic Diagram

1
