22

117846

PORTABLE GASOLINE GENERATORS

R

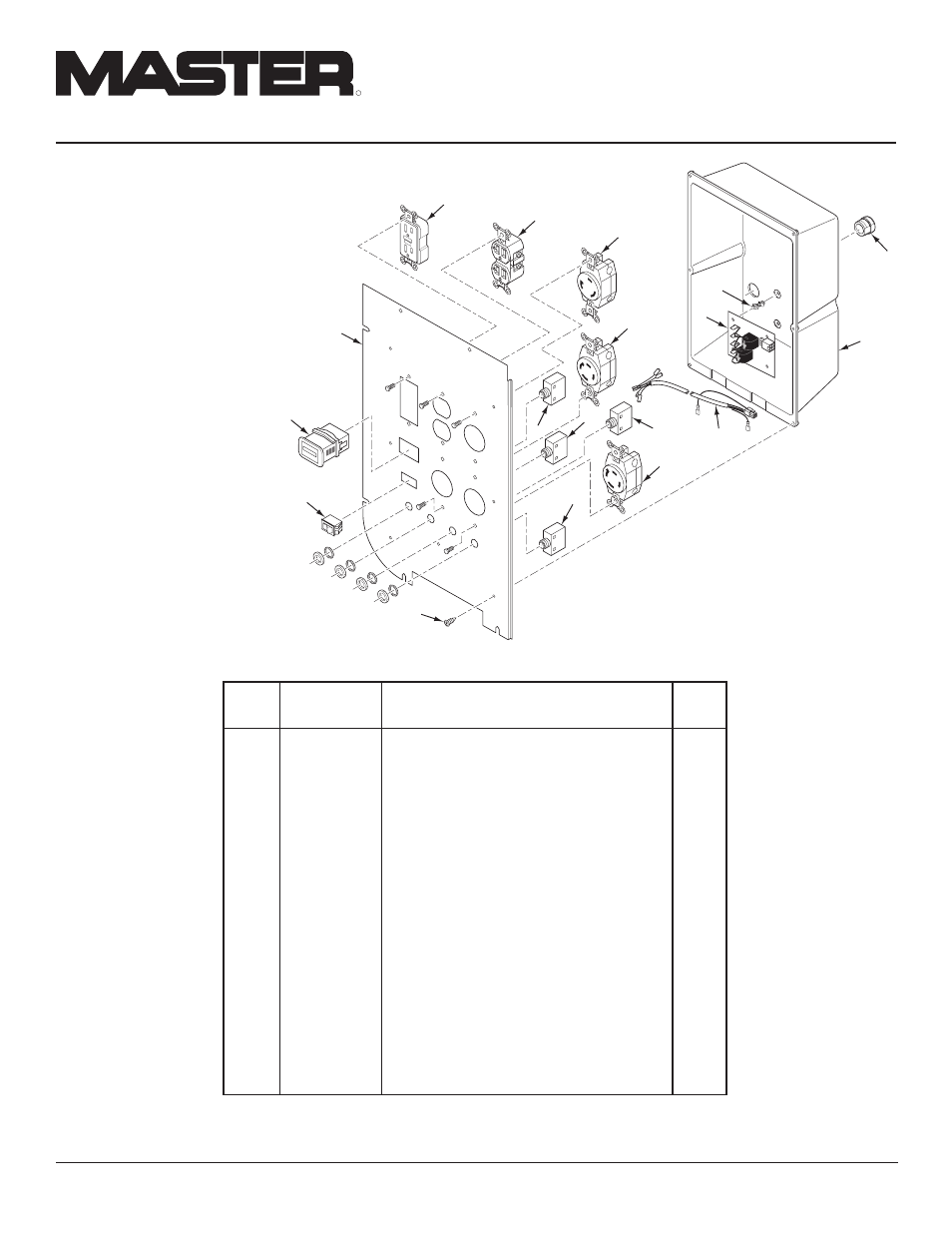

ILLUSTRATED

PARTS LIST

For Model MGH8500AIE

Control Panel

This list contains replaceable parts used in
your generator. When ordering parts, follow
the instructions listed under Replacement
Parts

on page 25 of this manual.

* Includes fastening hardware
‡ Not shown
† Includes reference numbers 1 through 14

P5

P2

P1

P4
P3

120/2

40V

TWIS

TLOC

K

120V

TWIS

TLOC

K

120V

GFCI

120V

HOU

R ME

TER

AUTO

-IDLE

RESE

T

RESE

T

RESE

T

RESE

T

OFF

ON

120/2

40V

TWIS

TLOC

K

RESET

TEST

ENM

00000005

HO

UR

S 1/10

1

14

16

9

13

12

10

11

15

5

4

3

6

2

2

8

7

7

KEY
NO.

PART
NUMBER

DESCRIPTION

QTY.

1

114738-03

Control Panel

1

2

22616009

Circuit Breaker, 20 Amp *

2

3

099833-01

120V, 30A Twist-Lock Receptacle *

1

4

104202-01

120V, 20A Duplex Receptacle *

1

5

100445-01

120V, 15A Duplex (GFCI) Receptacle *

1

6

099835-01

120/240V, 30A Twist-Lock Receptacle *

1

7

103184-01

Circuit Breaker, 45 Amp *

2

8

099834-01

120/240V, 20A Twist-Lock Receptacle *

1

9

101350-01

Hour Meter

1

10

099760-02

Bushing

1

11

114722-01

Enclosure

1

12

116475-01

Plastite Pan Head Screw

6

13

100366-01

Rocker Switch

1

14

116549-01

Auto-Idle Control Board

1

15

116678-01

Auto-Idle Wiring Harness

1

16

114785-01

Locking Circuit Board Supports

4

114721-04

Control Panel Assembly

1

114963-03

Panel Schematic Decal

1
