Page 15
Step 7. Divide each
adhesive bead strip
in half. (Adhesive
bead strips are in the
clear self-closing
bag). Place strips on
the edge of the grille
as shown in figure
14. Reinstall the grill
on the speaker.
Step 8. Adhere the
WG Series logo to
the grille with the
pressure sensitive
tape.
Repeat the steps for
the second speaker.

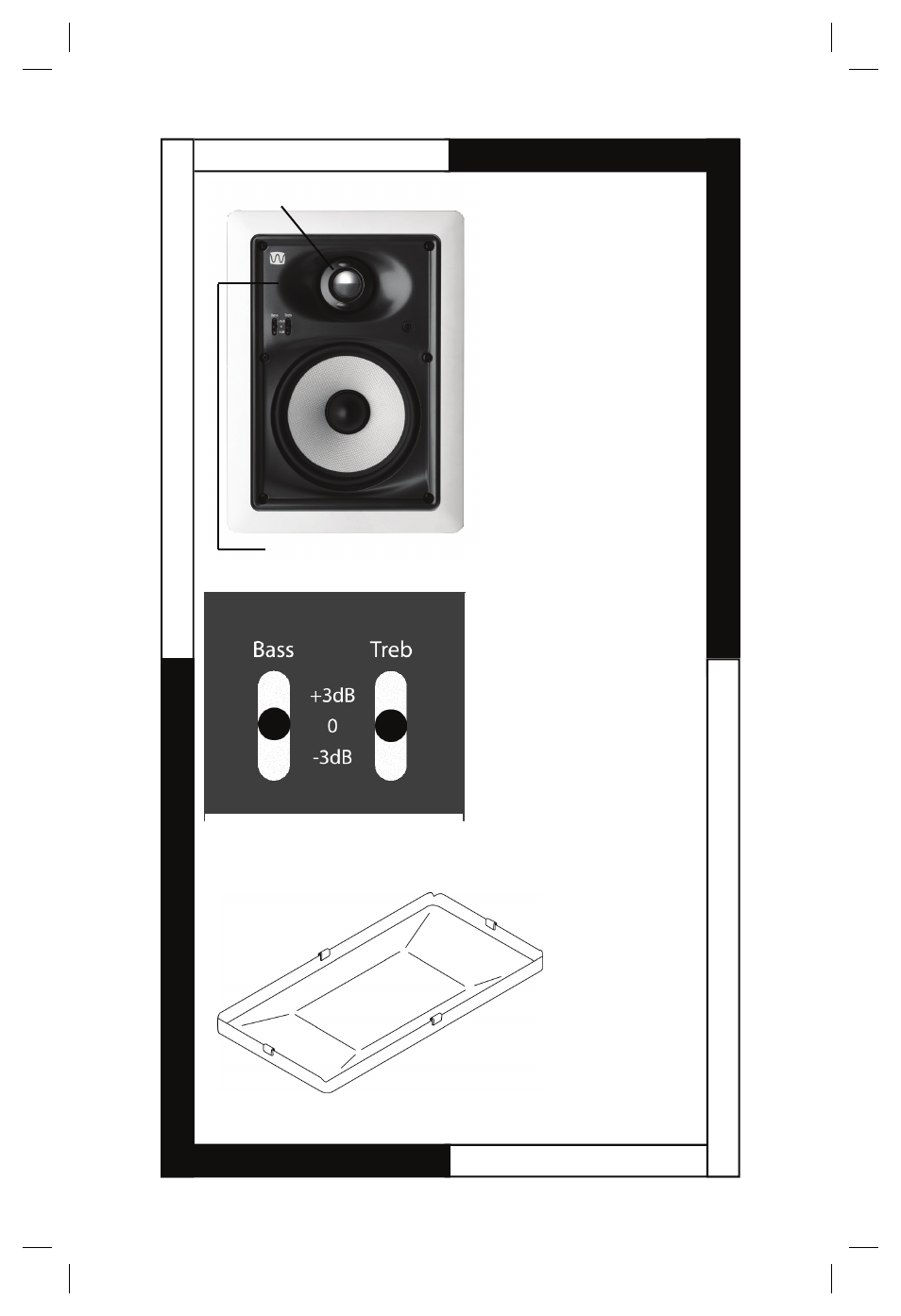

Speaker Installation
Tweeter horn
Crease position
FIGURE 12
FIGURE 13
FIGURE 14
