Step 3. This is the finish-out stage. Prepare the
speaker wiring by stripping off approximately 3
inches of the outer jacket (care should be taken
so the insulation on the wires inside the jacket
are not damaged) also strip approximately 3/8
inch off the ends of the two inside conductors.
Twist the ends of the stranded cable so the wires
are tight.
Step 4. Follow the instructions included with the
volume control and amplifier.
Step 5. You are now ready to install the frame.
Remove the paint mask. Be careful not to touch
the speaker cones and tweeters when
removing the paint mask in order to prevent
any damage. Remove the baffle from the frame
and fasten the frame to the pre-construction
bracket. Attach the speaker cable to the speaker
by pressing down on the red (+) or black (-) gold-
plated push terminals and inserting the red wire
in the red terminal and the black wire in the black

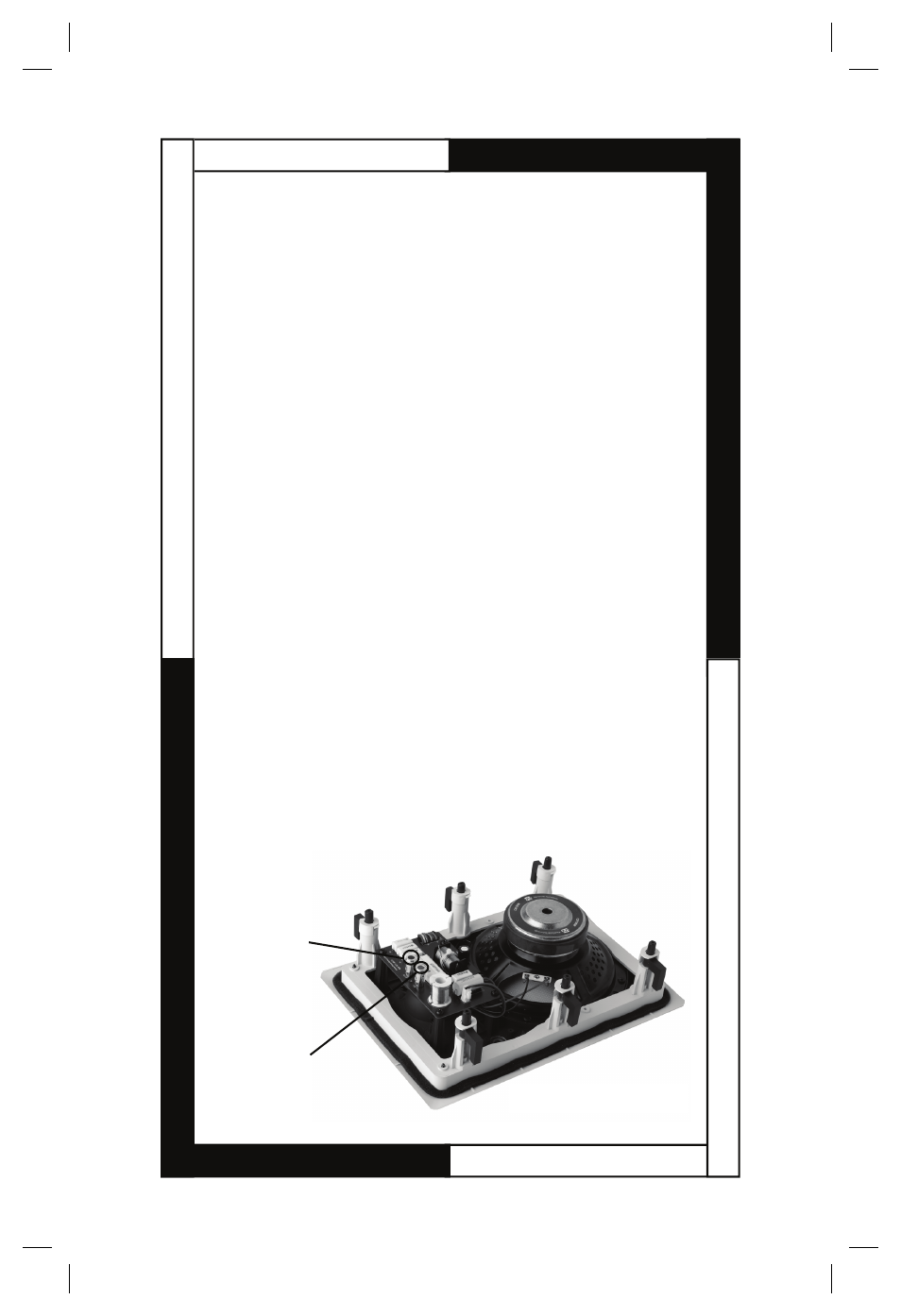

terminal. See figure 10. Make sure that none of
the strands from the black and red wires are
touching each other. This can create a short
circuit that can damage your electronics. Mount
Page 13
Positive
(red)
Negative
(black)
FIGURE 10
