Page 14
the baffle using the 6 screws provided. DO NOT
OVERTIGHTEN THE SCREWS, the screws
should on only be tight enough to secure the
speaker.
Step 6. After the speaker is mounted,
adjustments to the swivel tweeter (small speaker)
can be made by either directing the sound
visually or by using a musical source to
determine the best sound coverage for the
listening area. To position the tweeter, press at
the outside edge of the tweeter housing
(DO NOT PRESS DIRECTLY ON THE CONE).
Note the crease in the asymmetrical tweeter
provides the highest directional response in this
direction. See figure 11.
If you want to disperse the sound in a 360-degree
pattern you must
position the line in
the tweeter in a
horizontal position.
See figure 12.
The combination of
switch settings allow
you to boost and cut
bass and treble +/-
3dB. Adjust the
speaker level to
accommodate for
room acoustics. See
figure 13.

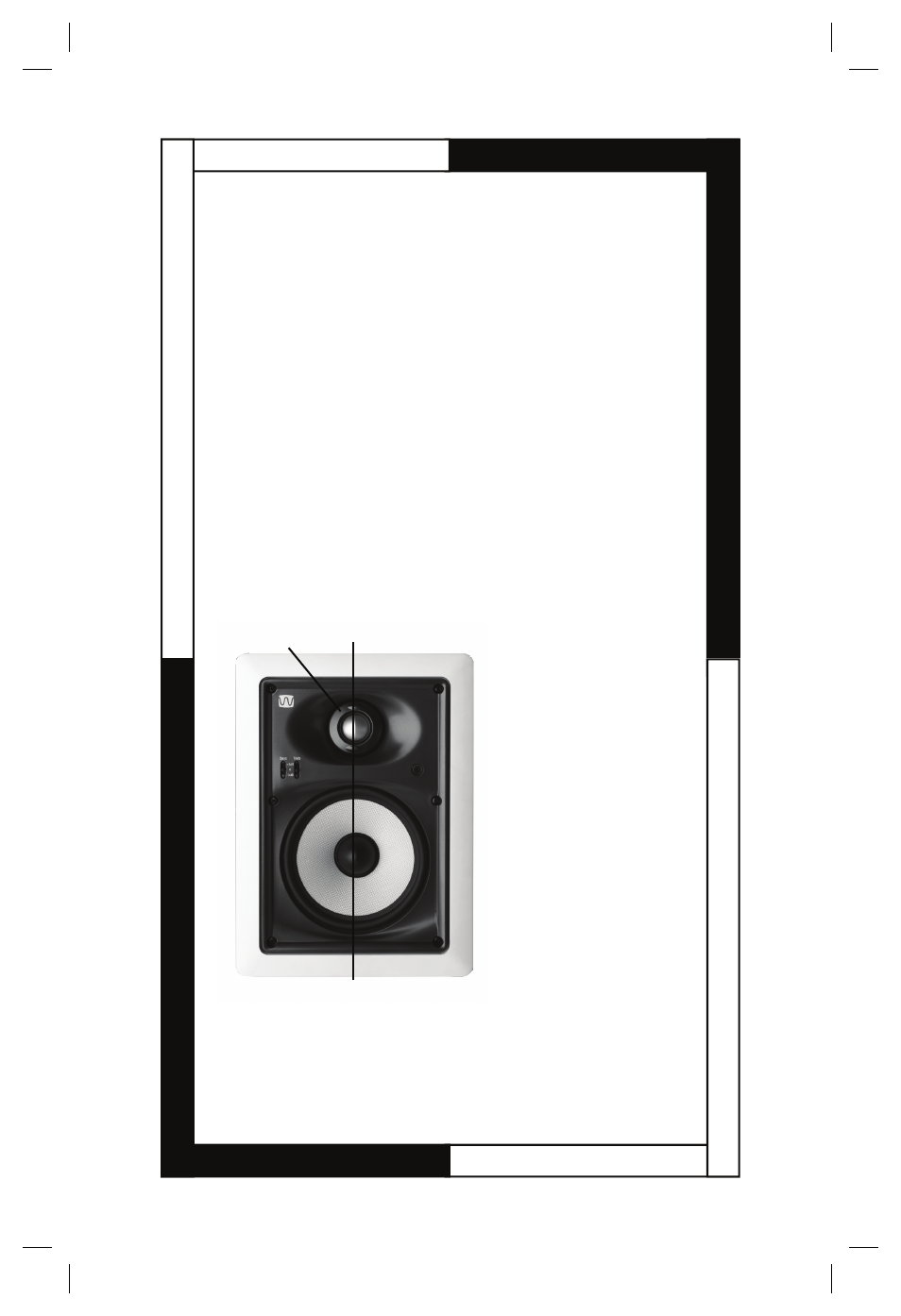

Crease position
FIGURE 11
Tweeter horn
