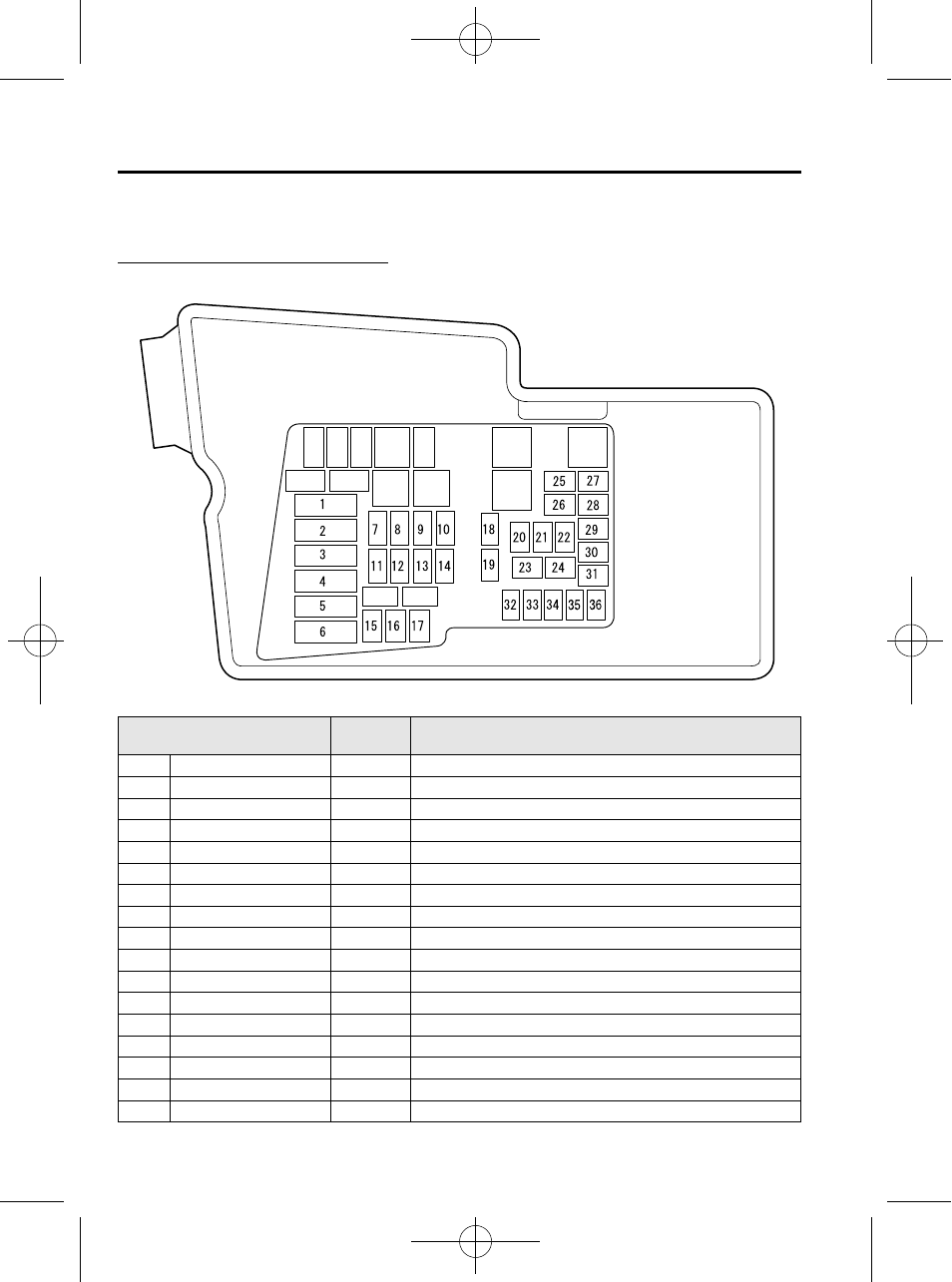

qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 PCS ― ―
2 BLOWER 40 A Blower motor
3 FUEL PUMP 30 A Fuel pump
4 FAN 2 40 A Cooling fan sub
5 IG KEY 1 40 A Ignition system
6 FAN 1 40 A Cooling fan main
7 P.SEAT (D) 30 A Power seat
8 INJ 1 30 A Injector
í
9 P.SEAT (P) 30 A Power seat
10 BOSE 30 A Bose ® audio system
í
11 ENGINE 30 A Engine control system
12 D.LOCK 20 A Power door locks
13 P.WIND 30 A Power windows
14 IG KEY 2 40 A Ignition system
15 ABS 1 40 A ABS
16 ABS 2 20 A ABS
17 DSC
― ―
8-50
Maintenance and Care
