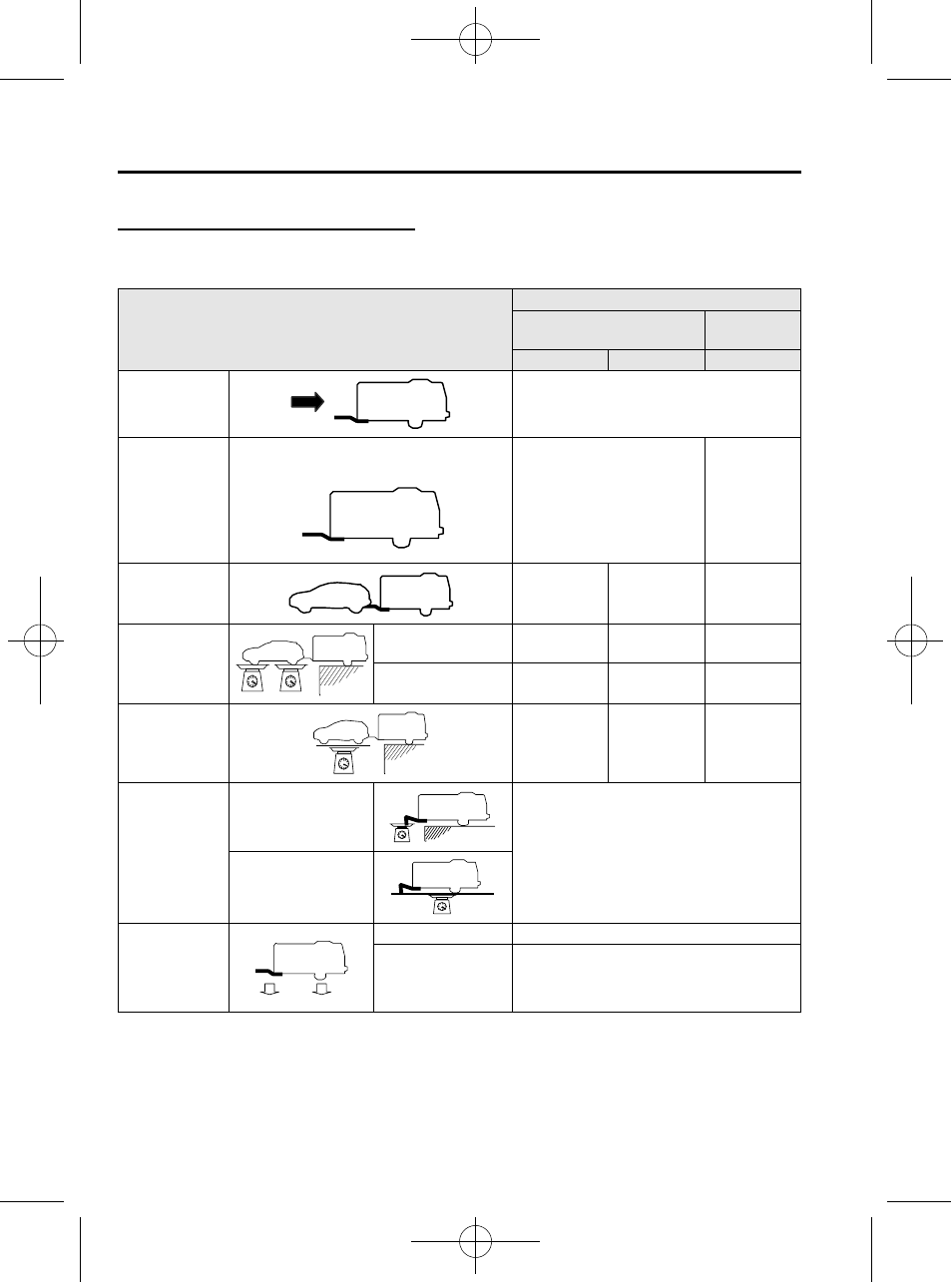

TRAILER TOWING-LOAD TABLE
Because vehicle weights vary, adjustments must be made to meet the requirements in this
table.
Item
Model
2.3-liter engine
2.5-liter
engine
2WD AWD 2WD
MAX.
FRONTAL
AREA
2.97 m
2
(32 ft
2
)
MAX. TTW
Add trailer's weight, load and hitch; vehicle
passengers and vehicle load
*
907 kg (2,000 lb)
680 kg
(1,500 lb)
MAX. GCWR
2,815 kg
(6,206 lb)
2,914 kg
(6,424 lb)
2,526 kg
(5,569 lb)
MAX. GAWR
Front
1,150 kg
(2,535 lb)
1,189 kg
(2,621 lb)
1,104 kg
(2,434 lb)
Rear
1,022 kg
(2,253 lb)
1,083 kg
(2,388 lb)
1,025 kg
(2,260 lb)
MAX. GVWR
2,168 kg
(4,780 lb)
2,267 kg
(4,998 lb)
2,125 kg
(4,685 lb)
TRAILER-
TONGUE
LOAD
Tongue load
Tongue load/Trailer load × 100 = 10 % to 15 %
Trailer load
DISTRIBU-
TION OF
TRAILER
LOAD
Front 60 %
Rear 40 %
* i.e. baggage, food, camp gear
GCWR: Gross Combination Weight Rating (sum of TTW, vehicle weights and 2
passengers)
GAWR: Gross Axle Weight Rating
GVWR: Gross Vehicle Weight Rating
