Installing upgrades > 111
I
NSTALLING UPGRADES
This section explains how to install optional equipment into your MFP. This includes:
> additional RAM memory
> SD card
> additional paper tray
M
EMORY UPGRADE
The basic models come equipped with 256MB of main memory. This can be upgraded with
an additional memory board of 256MB or 512MB, giving a maximum total memory capacity
of 768MB.

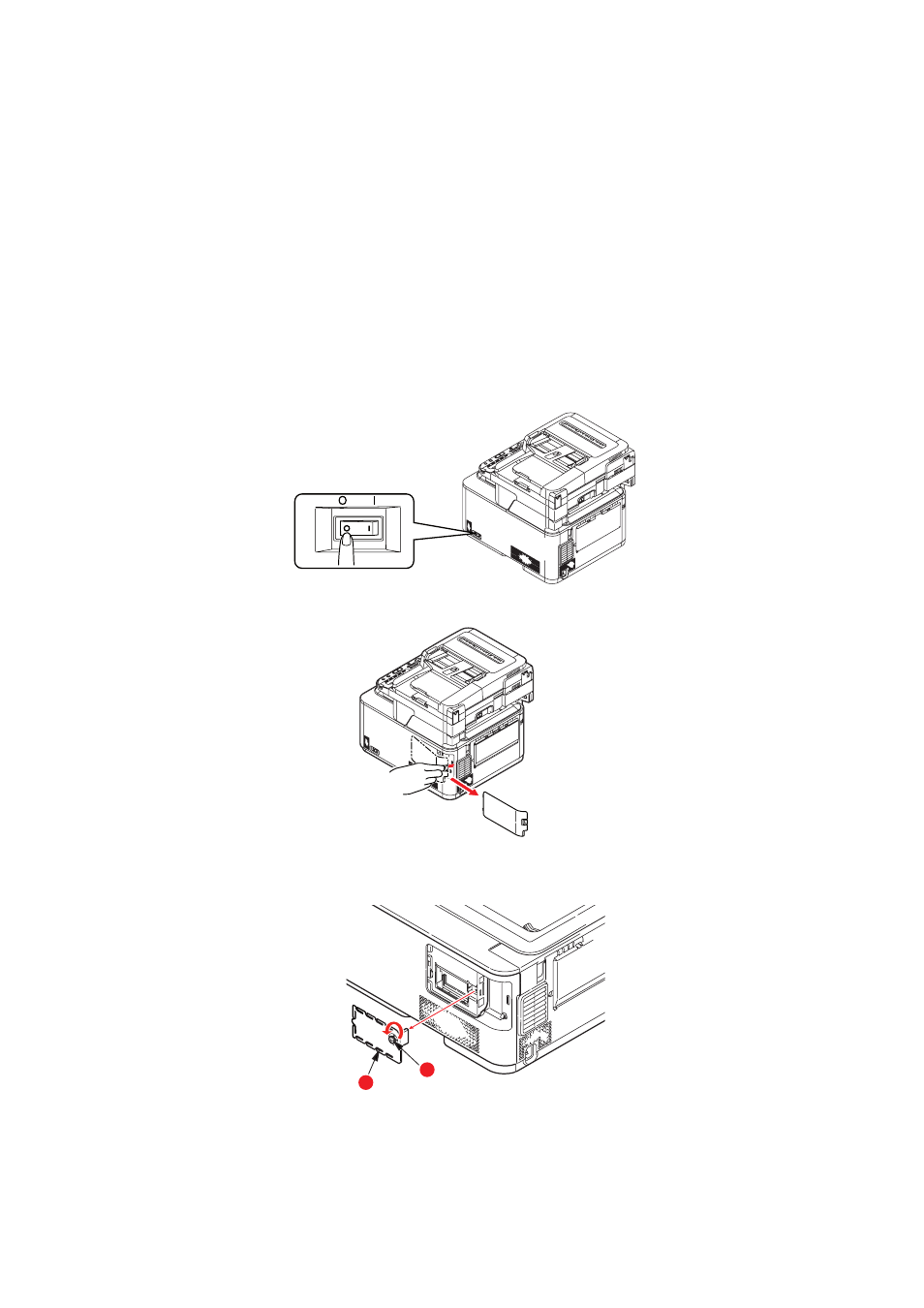

1.
Switch the MFP off and disconnect the power cable. Refer to “Switching off” on
page 18 for details.
2. Remove the outer access cover and place it safely to one side.
3. Turn locking screw (a) anti-clockwise and remove the inner access cover (b). Place it
safely to one side.
4. Carefully remove the new memory board from its wrapping. Try to handle the board
only by its short edges, avoiding contact with any metal parts as far as possible. In
particular, avoid touching the edge connector.
b
a
