Parlor Vent Free Fireplace REPLACEMENT PARTS

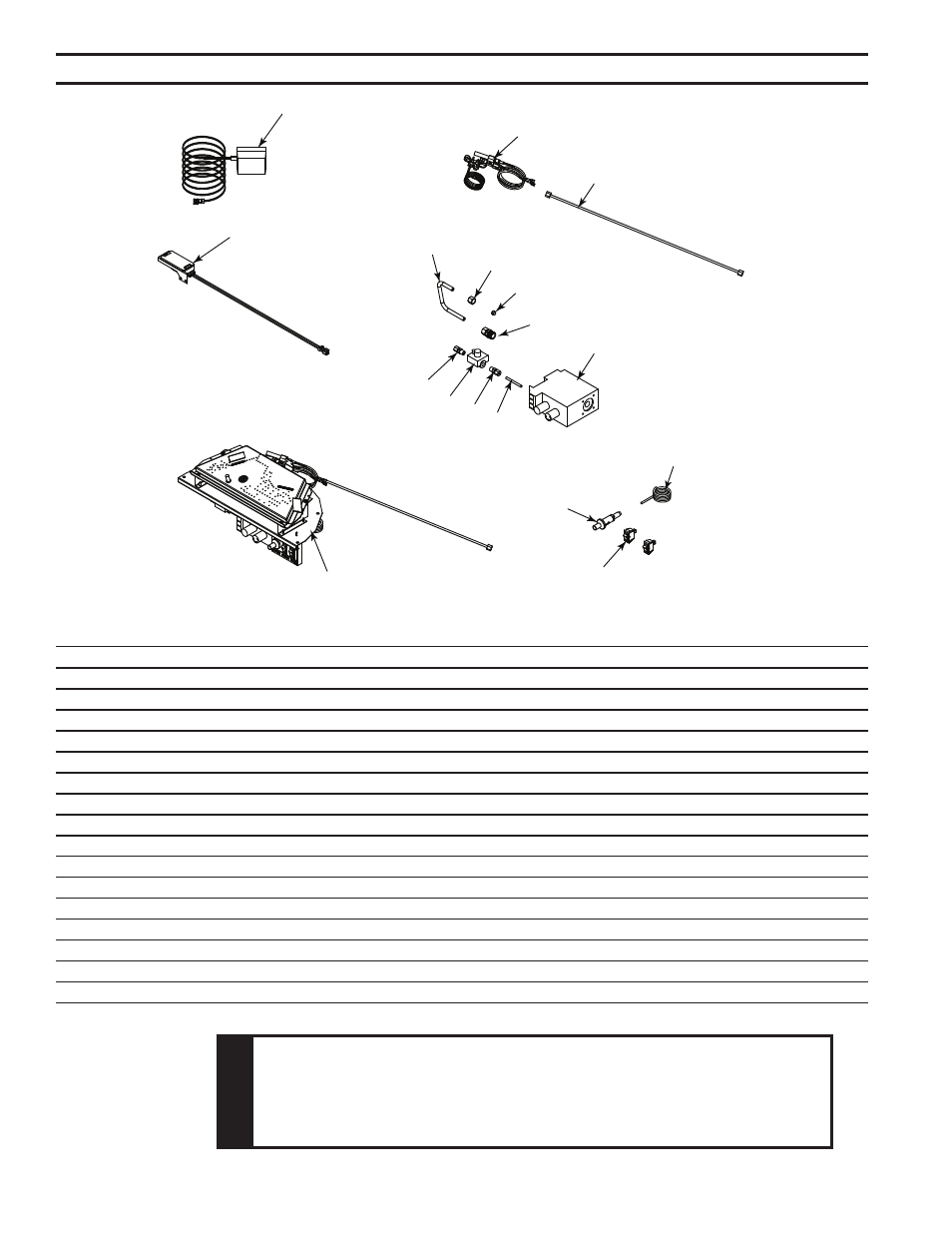

PL20 Firebox Parts
Ref. Description Qty. PL20NV PL20PV
1. Complete Burner Assembly 1 90D0076 90D0095
. Valve 1 14D0467 14D0468
3. 3/16" Tubing Assy. 1 49D0050 49D0050
4. 1/4" Tubing (") 1 01530 01530
5. Pilot Regulator 1 14D0469 14D0469
6. Fitting for Regulator 0H0109 0H0109
7. 5/16" Fitting 1 00K0917 00K0917
8. 5/16" Ferrule 1 00K0918 00K0918
9. Valve Fitting 1 11V0313 11V0313
10. Piezo Wire Assy. 1 00K063 00K063
11. Piezo 1 14D0503 14D0503
1. On/Off Switch 3D03 3D03
13. 5/16" Aluminum Tubing 1 90D006 90D006
14. Pilot 1 81D305 81D3053
15. AC Wall Plug 1 90D008 90D008
16. Light Assy. 1 90D0083 90D0083
W
ARNING
Failure to position the parts in accordance with these diagrams or
failure to use only parts specifically approved with this appliance may
result in property damage or personal injury.
15
16
14
13
7
8
9
6
5
4
2
3
1
11
12
10
900093
PL20 parts
