16 90D0093
Parlor Vent Free Fireplace ELECTRICAL INSTALLATION
CONNECT OPTIONAL REMOTE CONTROL
RECEIVER

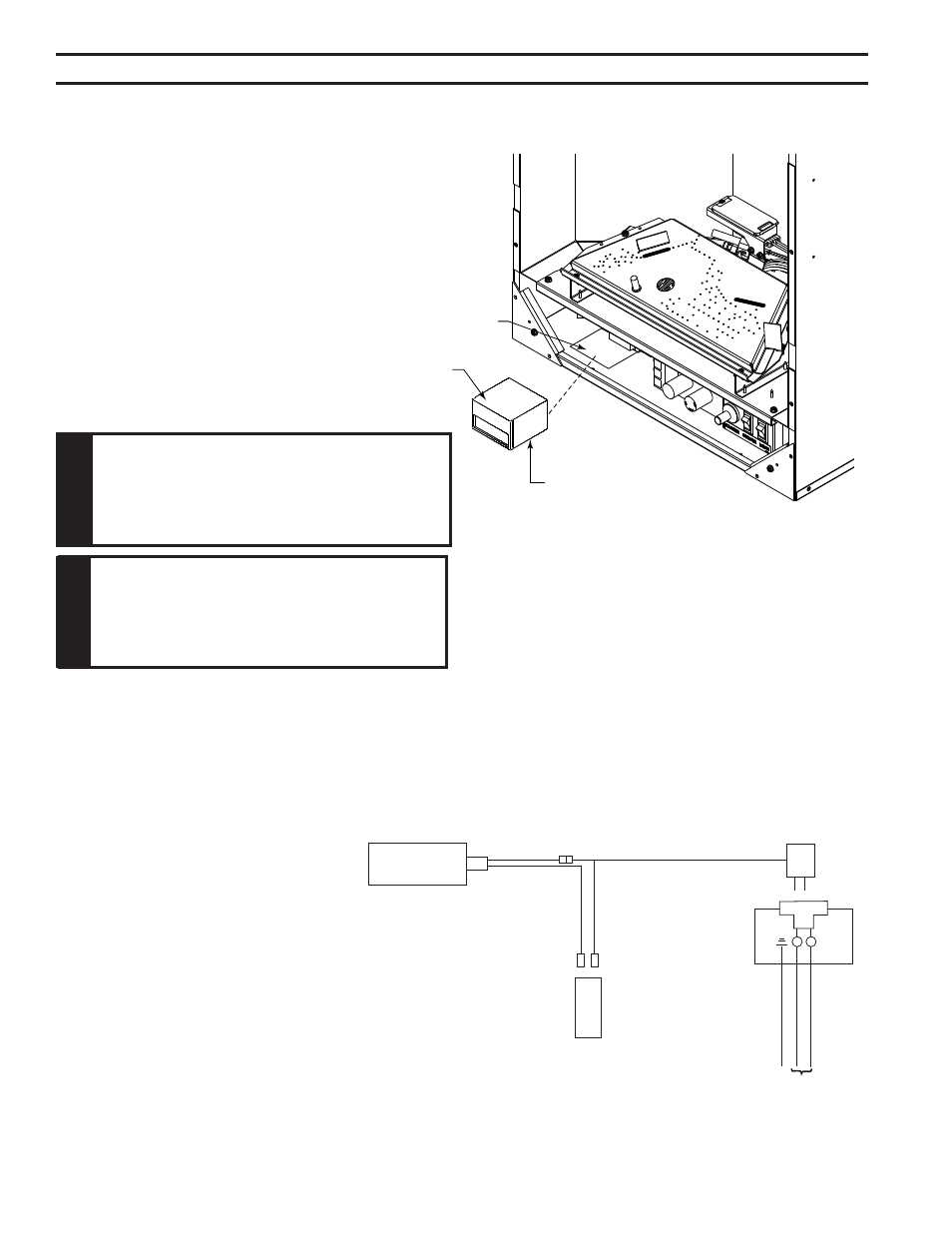

Figure 16
1. Open bottom access door.
. Connect the remote wire connectors to the TH, TH/TP
connections on the valve. Figure 16
3. Stick Velcro• pads with self-adhesive backing to bottom
of remote receiver and to floor of compartment behind
access panel.
4. Attach remote receiver to firebox with Velcro•
pads. Control switch must face forward.
NOTE: Do not place remote in combustion
chamber.
FP2561
install remote receiver
Velcro•
Remote
Receiver
Velcro•
FP56 Figure 16 -
Install Remote Receiver
IMPORTANT: Always check local building codes. This
installation must comply with local regulations as well
as the National Electric Code.
Installation Instructions
Wiring Junction Box
1. Before installing, wire the receptacle into an electrical circuit. This should be done before fram-
ing the fireplace. Wire with minimum 60° C wire in accordance with prevailing codes.
. Remove the external junction box cover by removing the screw from the left side of the outside
firebox wall. Junction box was installed at the factory.
3. The junction box cover has a factory in-
stalled “romex” style strain relief connec-
tor. After connecting the wires, route the
wire leads through this connector. Refer
to the wiring diagram in Figure 5.
CAUTION
Electrical connections should only be performed by
a qualified licensed electrician. Main power supply
must be turned off before connecting to the main
electrical power supply or performing service.
W
ARNING
Electrical Grounding Instructions:
This appliance is equipped with a three-prong
(grounding) plug for your protection against shock
hazard and should be plugged directly into a prop-
erly grounded three prong receptacle.
12V Adapter
Light
ON/OFF
Switch
Junction
Box
Ground
120V AC
FP2579
junction box wiring
Figure 17 -
Junction Box Wiring
Diagram
