14

90D0093

Parlor Vent Free Fireplace

FIREPLACE INSTALLATION

When tightening the joint to the valve, hold the valve securely to prevent movement.
Test all gas joints from the gas meter to the heater valve for leaks using a gas analyzer or
soap and water solution after completing connection. DO NOT USE AN OPEN FLAME.
Check the gas pressure with the appliance burning and the control set to HIGH.
Open control access door at bottom front of unit to find valve and regulator referred to
below.

W

ARNING

Do not use open flame to check for gas
leaks.

W

ARNING

Connecting directly to an unregulated
propane/LP tank can cause an
explosion.

CHECk GAS PRESSURE
MILLIVOLT CONTROL

Figure 14
The valve regulator controls the burner pressure which should be checked at the pressure
test point.
Turn captured screw counter clockwise two or three turns and then place tubing to pres-
sure gauge over test point. (Use test point “A” closest to gas inlet). After taking pressure
reading, be sure and turn captured screw clockwise firmly to reseal. Do not over torque.
Check for gas leaks.

FP2511
millivolt test point

Test Port
'A'

FP511

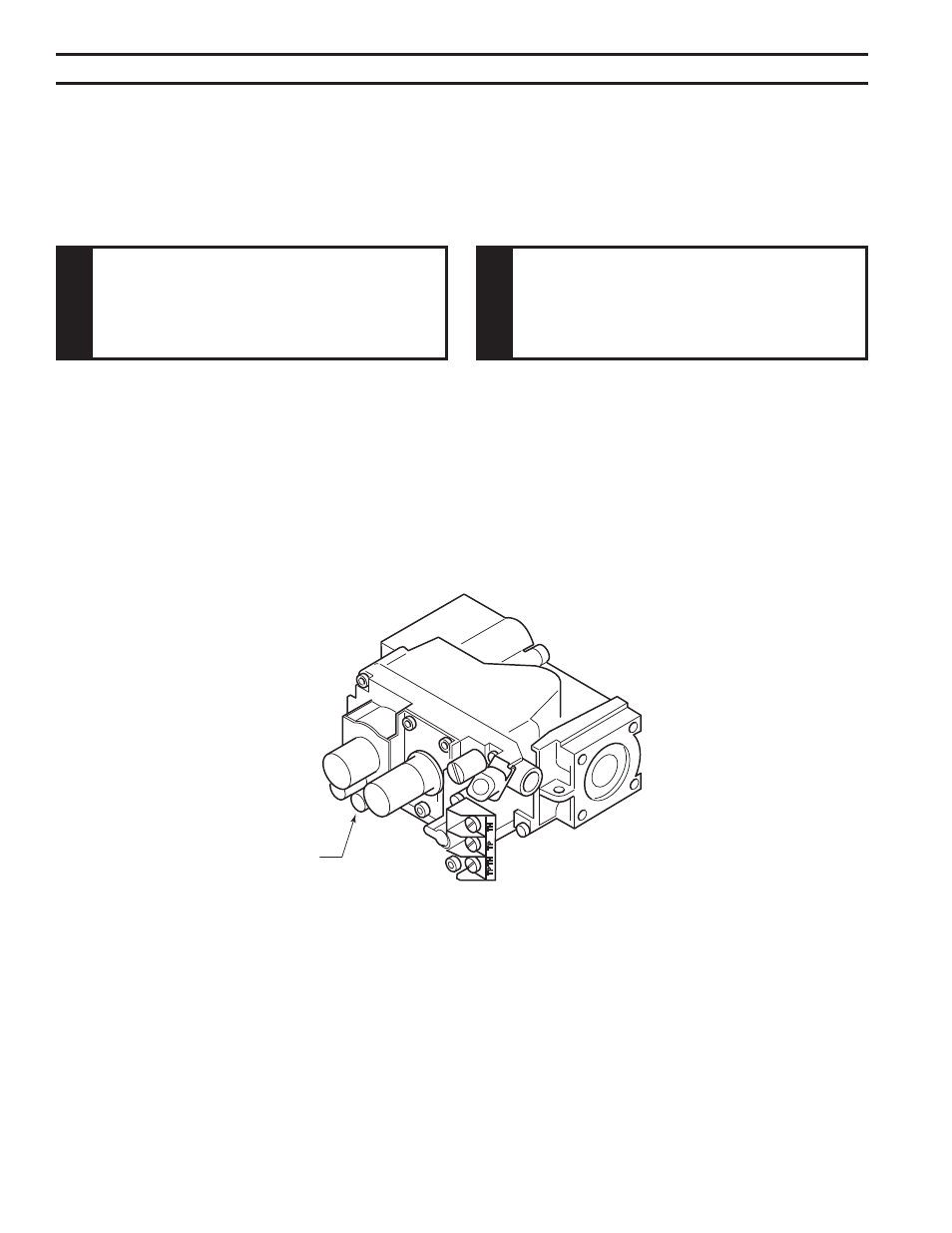

Figure 14 -
Pressure Test Point Location - Millivolt Valve
