Parlor Vent Free Fireplace

FIREPLACE INSTALLATION

FP2561
anchor screws

Anchor Screws
3/16" x 1Z\v"

FP561

Figure 10 -
Secure Heater to Floor or Hearth

SECURE HEATER TO FLOOR OR HEARTH

NOTE: Clearance requirements as detailed in
“CLEaRanCES and HEiGHt REquiREmEntS” section
on Page 10 of this manual, must be met before securing
the heater in place.
1. Open the control access door.
. Remove five (5) screws holding engine base to unit.

Figure 9

3. Slide engine assembly forward out of unit.
4. Secure the firebox with two () anchoring screws (3/16"

x 1Z\v" length) supplied with fireplace. Figure 10

FP2560
remove burner

Screws

FP560

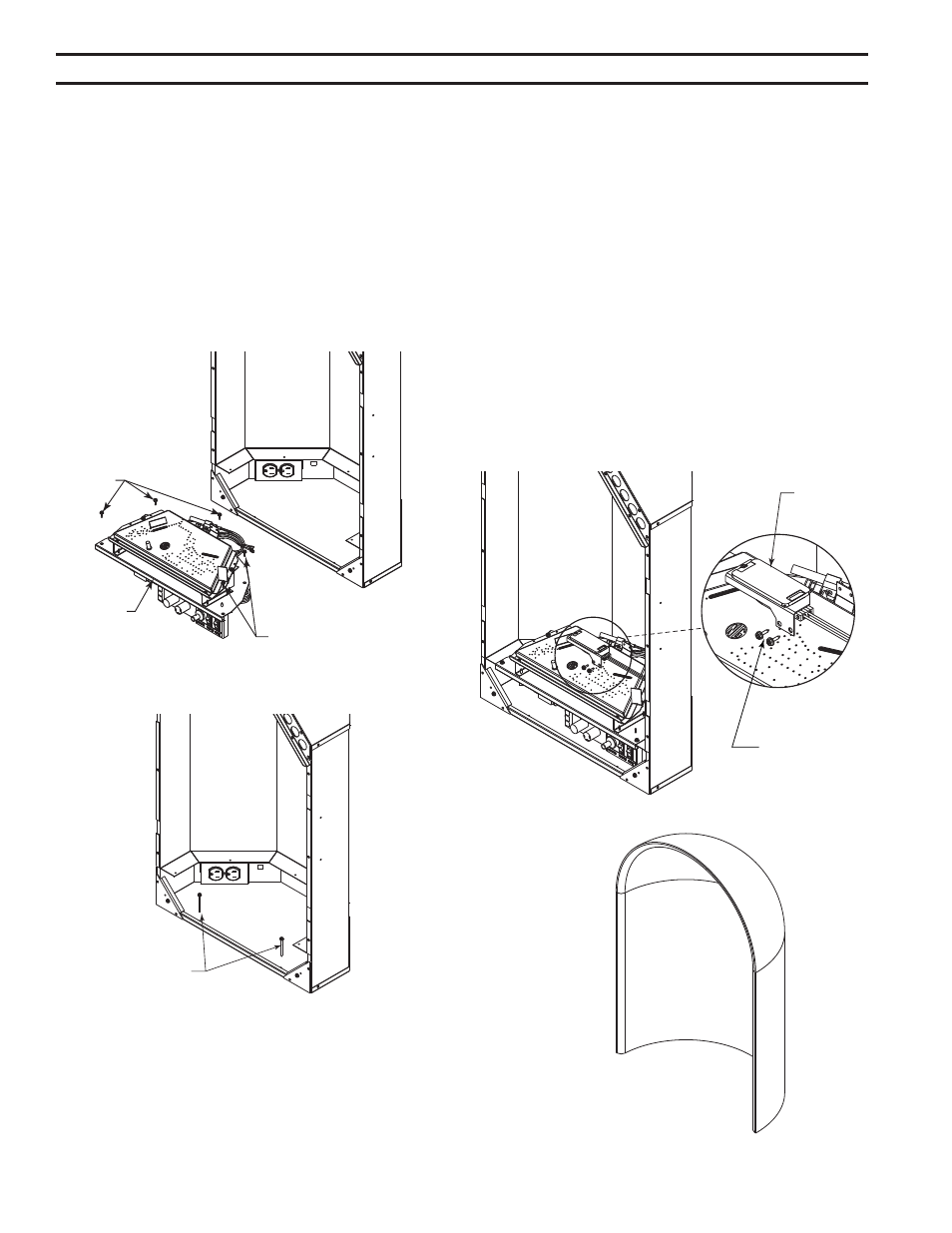

Figure 9 -
Remove Engine Assembly

Screws

Engine
Assembly

INSTALL ARCHED BRICk LINER

1. Remove arched brick liner from packaging.
. Remove two () screws holding light fixture to bracket

attached to burners. Figure 11

3. Carefully lay light fixture onto burner top.
4. Carefully pick up brick liner with two hands and tilt top

of liner away from unit. Figure 12

5. Place bottom of liner into firebox behind burner and pilot

assembly. Be careful not to bend or break fuel line to
pilot.

6. Once bottom of liner is in place, gently push top in

place.

7. Gently center liner in firebox.
8. Replace light fixture to bracket.
Installation complete.
NOTE: The arched brick liner should be leaning forward
until decorative face is in place. Refer to Page 30.

FP2554
remove light fixture

Light
Fixture

Screws

FP554

Figure 11 -
Place Light Fixture on Burner Top

FP2555
firebrick panel

Figure 12 -
Firebrick Panel

FP555
