page 22 — dca220sscu/4i 60 hz generaTor • operaTion and parTs manual — rev. #0 (10/25/12)
OUtpUt terMiNaL paNeL faMiLiariZatiON
connecting loads
Loads can be connected to the generator by the output
Terminal lugs or the convenience receptacles (Figure 10).
Make sure to read the operation manual before attempting
to connect a load to the generator.
To protect the output terminals from overload, a 3-pole,
600A main circuit breaker is provided. Make sure to switch
all circuit breakers to the oFF position prior to starting
the engine.

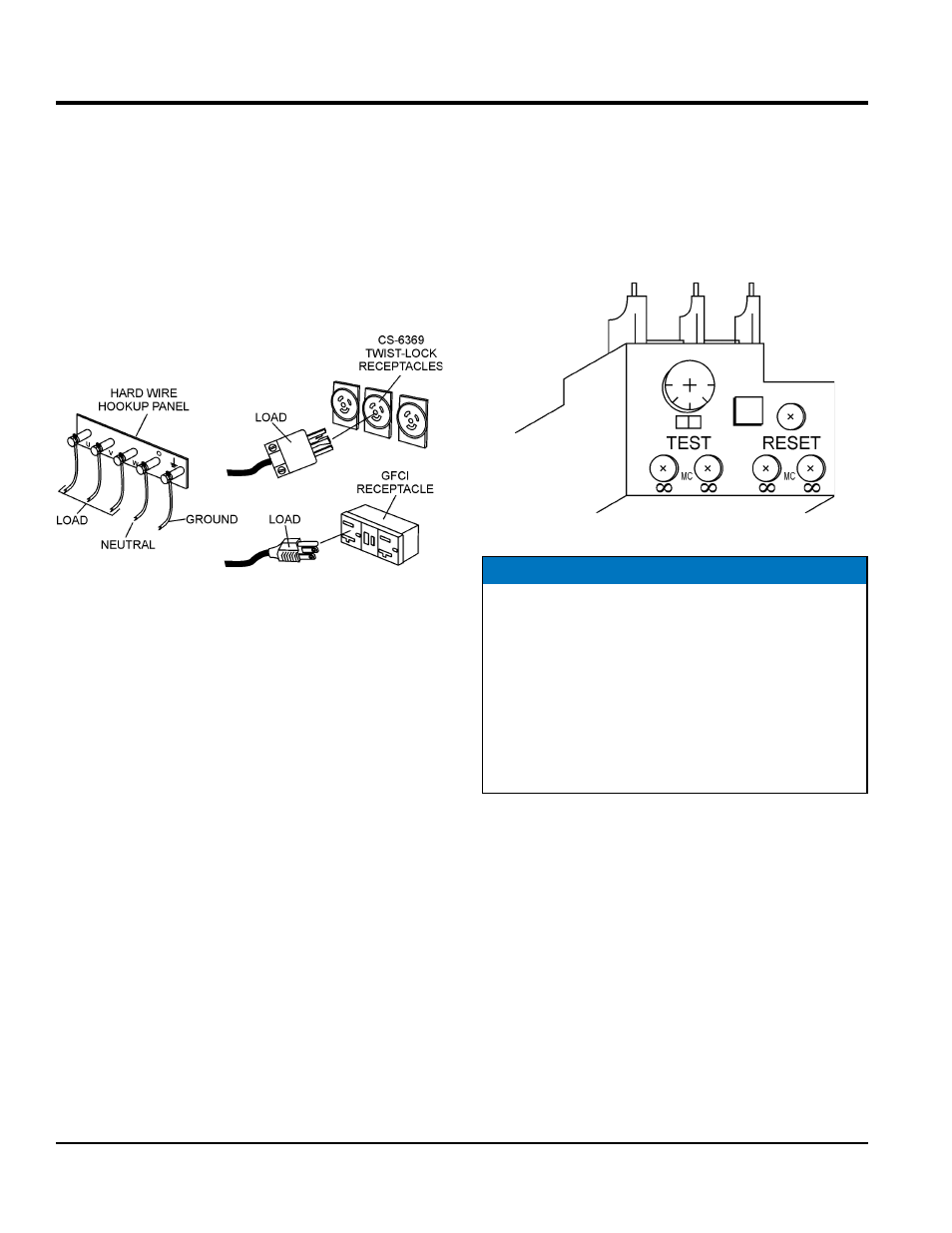

Figure 10. Connecting Loads
over current relay
An over current relay (Figure 11) is connected to the main
circuit breaker. In the event of an overload, both the circuit
breaker and the over current relay may trip. If the circuit
breaker can not be reset, the reset button on the over
current relay must be pressed. The over current relay is
located in the control box.
Figure 11. Over Current Relay
NOTICE
Remember the overcurrent relay monitors the current
flowing from the u,v, and W output Terminal lugs
to the load.
In the event of a short circuit or over current condition,
it will automatically trip the 600 amp main breaker.
To restore power to the
output Terminal panel, press
the reset button on the overcurrent relay and place the
main circuit breaker in the closed position (on).
